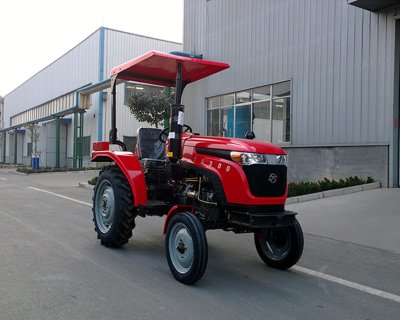

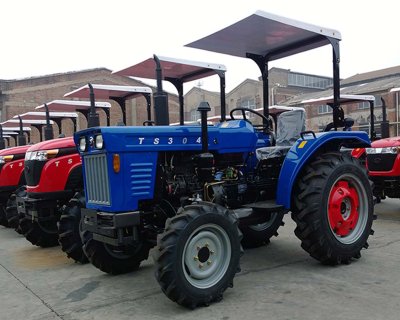

This agricultural tractor is powered by a reliable brand-name diesel engine and features an advanced dry-friction, single-disc, dual-stage clutch with constant engagement for smooth operation. It includes hydraulic steering for easy maneuverability and a three-point linkage system for versatile implement mounting. The rear-mounted Power Take-Off (PTO) operates at speeds of 540/760 or 540/1000 RPM in semi-independent mode, facilitating a wide range of operational capabilities. Additionally, the tractor offers two-way hydraulic output for enhanced functionality.
Optional equipment available for this model enhances its adaptability to various working conditions and personal preferences. These options include Roll Over Protective Structure (ROPS), sunshade for protection against the elements, a cabin equipped with a heater for comfort in colder climates, multi-way valves for complex hydraulic operations, a swing drawbar for easier towing, and front and rear ballasts to improve stability. The shuttle shift feature allows for quick direction changes, streamlining work processes.
A variety of attachments expand the tractor's utility across different applications. These include a front-end loader and backhoe for digging and material handling, snow blowers, blades, and sweepers for winter maintenance, rotary tillers for soil preparation, wood chippers and log splitters for forestry work, and trailers for transportation tasks. This extensive array of attachments ensures that the tractor can be tailored to meet specific needs, making it an indispensable tool for any agricultural or small industrial operation.
Smooth full hydraulic power steering delivers no kickback in the steering wheel for less operator fatigue. It’s really a tractor the whole family can operate.
Shuttle shift system is optional, gear shifting will be more lightweight and efficient, making your driving experience more relaxed.
Driver-oriented design idea provides easy access to all controls in the cab.
Hydraulic output is optional, making your tractor match more kinds of farm implements and meet your different demands.
Paddy wheel is optional, making it adapt to different working conditions
Transmission with 8 forward + 2 reverse gears (slip gear shift). You can choose to install the crawling gear structure which could double the number of the gears and provide you better traction. Another transmission with 10 forward + 2 reverse gears (clutch shift) is optional. You can also choose to install the crawling gear structure to make it become 20 forward + 4 reverse gears and provide you better traction. Driving speed covers the range of 0.32-38Km / h, meets the various demands of field working and road transportation.
Equipped with anti-rollover safety frame, which could effectively guarantee the driver`s body safe when the tractor overturns.
Equipped with awnings, your job is no longer limited by the weather.
Model | TY300 Compact Tractor | TY304 Compact Tractor | |
Drive Type | 4×2 | 4×4 | |
Engine | KM390BT | KM390BT | |
Engine Manufacturer | Laidong | Laidong | |
Engine Model | 390BT | 390BT | |
Engine Type | inline,vertical,water-cooled,four-stroke | inline,vertical,water-cooled,four-stroke | |
Cylinder diameter（mm） | 100 | 100 | |
Stroke（mm） | 115 | 115 | |
Max Torque(N·m)/Revolving Speed(rpm) | ≥109.8/≤1650 | ≥109.8/≤1650 | |
Displacement(L) | 1.81 | 1.81 | |
Fuel Tank Capacity(L) | 51 | 51 | |
Engine Rated Power (kW/rpm) | 22 | 22 | |
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤250 | ≤250 | |
Drive Train | |||
Clutch | Dry,single-stage | Dry,single-stage | |
Standard PTO speed(rpm) | (540，1000)/(750，1000)/(540，750) | (540，1000)/(750，1000)/(540，750) | |
Gears | 8F+2R/10F+2R | 8F+2R/10F+2R | |
Speed range（Km） | 2.25~28.78 | 1.9~24.23 | |
Steering type | mechanical steering | hydraulic steering | |
Gear Shift Mode | sliding gear shift | sliding gear shift | |
Break System | |||
Service Brake | pedal,mechanical drive,closed shoe type | pedal,mechanical drive,closed shoe type | |
Parking Brake | locked pedal | locked pedal | |
Hydraulic System | |||
Hydraulic Output Flow(L/min) | 30 | 30 | |
Hydraulic Output Valve | 1 way(optional) | 1 way(optional) | |
Working Device | |||
Three-Point Suspension | postposition,Category I | postposition,Category I | |
Max.Lifting Capacity(kN） | ≥4.95 | ≥4.95 | |
Tillage Depth Adjustment | draft and position adjustable | draft and position adjustable | |
General Parameter | |||
Overall Dimension(L×W×H)mm | With cab | / | / |
Without cab | 3105×1510×2105 | 3125×1455×2115 | |
Wheelbase(mm) | 1705 | 1755 | |
Min. operating weight(kg) | With cab | / | / |
Without cab | 1370 | 1580 | |
Min. Ground Clearance(mm) | 440 | 345 | |
Min.turning radius(mm) | 2900 | 3000 | |
Maximum Pull（KN） | 6.37 | 7.84 | |
Front Tire | 5.0-15 | 6.5-16 | |
Rear Tire | 11.2-24 | 11.2-24 | |
Optional Disposition | |||
hydraulic steering, | dual-stage clutch, | ||
