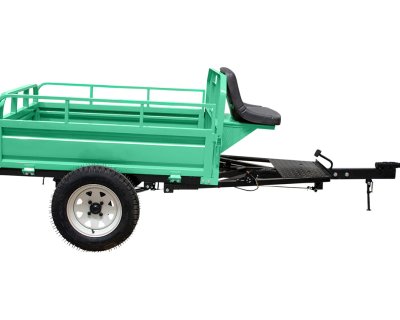

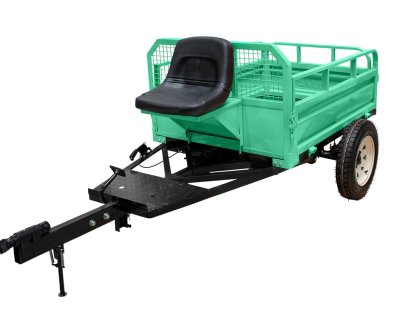

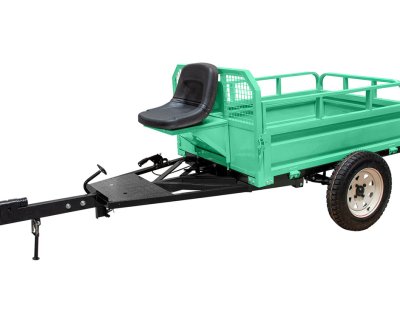

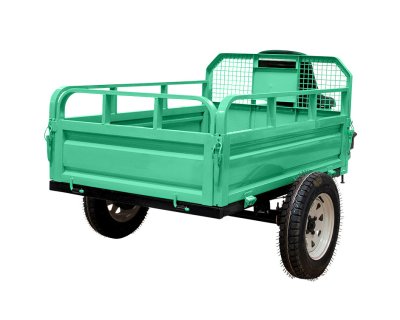

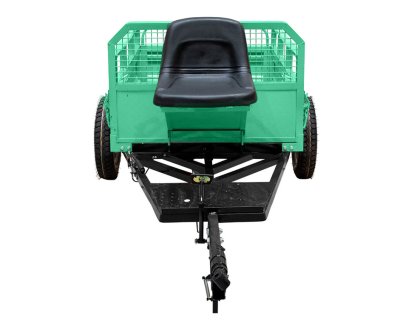

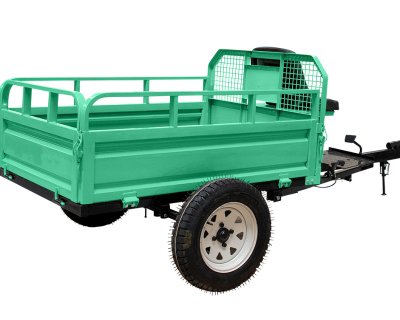

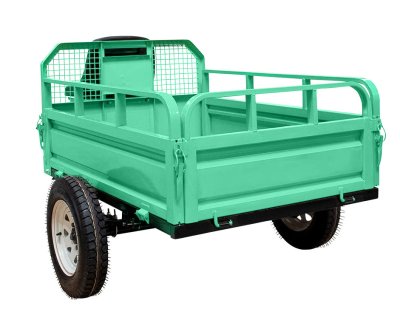

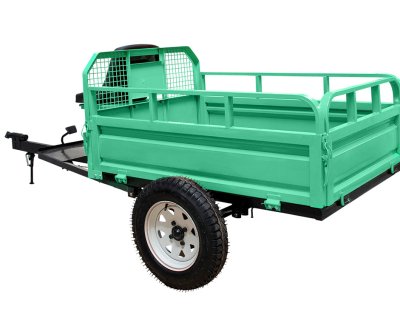

Mingsin 7C-0.55 | RURIS 550S | 550kg Agricultural Tipping Trailer

When choosing the right accessory for your tiller, you need to consider the maximum efficiency you can get. The Mingsin 7C-0.55 trailer is suitable for many transport operations, the maximum load capacity of the trailer being 550 kilograms. The Mingsin 7C-0.55 trailer can be a very useful accessory for transporting production and planting material.

Easy to use

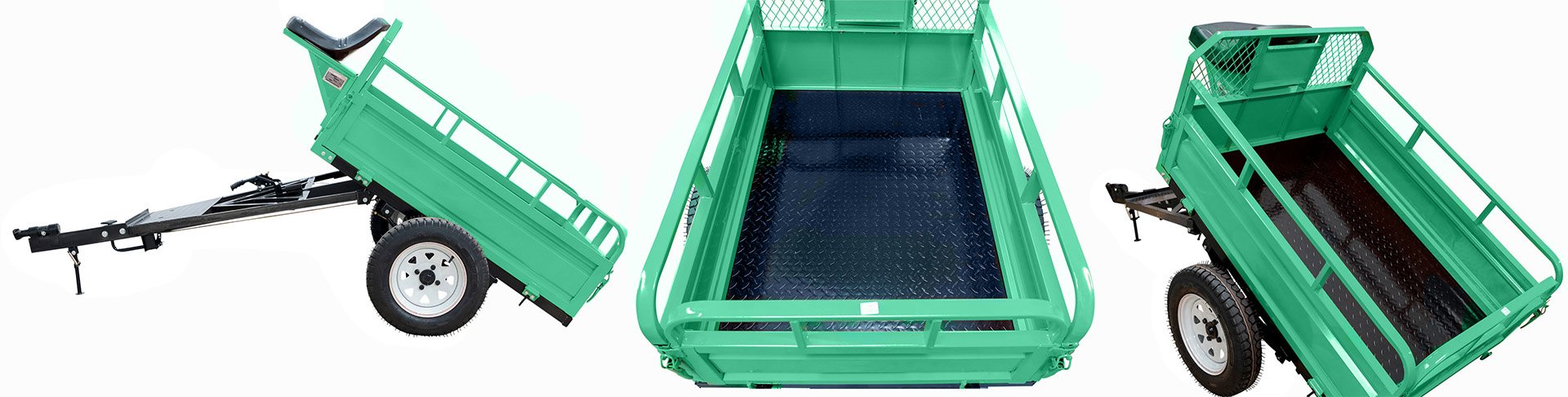

The Mingsin 7C-0.55 trailer is easy to use thanks to the tipping unloading and is an ideal means of transport for those who work the land at a greater distance from home.

Features

The Mingsin 7C-0.55 trailer is a robust construction and is equipped with a rigid, resistant axle for uneven soils.

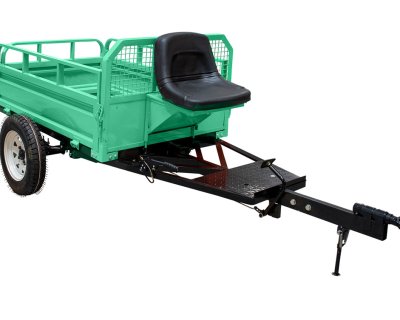

It is equipped with a braking system - it benefits from a hand brake, but also a foot brake, suspensions, tool kit, fixing hooks, folding jack. Manual tipping is effortless.

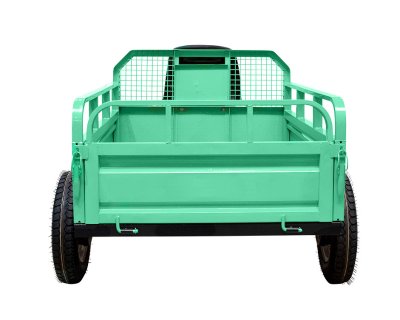

The Mingsin 7C-0.55 trailer for Mingsin tillers is 140 cm long, 100 cm wide, 550 kg maximum load capacity, 90° shutter opening, manual tipping, brake system with brake shoes, mechanical brake mode with medallion, leaf spring suspension.

The Mingsin 7C-0.55 trailer is equipped with sufficient storage space for planting material or other materials such as wood, sand or gravel.

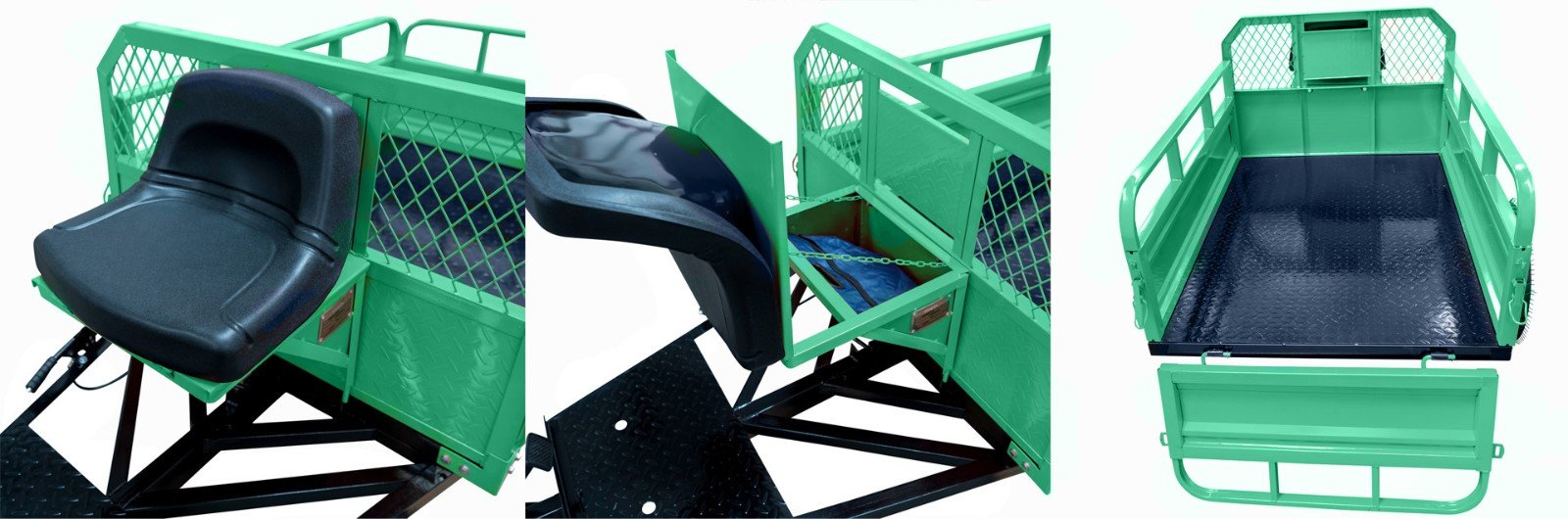

The Mingsin 7C-0.55 trailer comes with an additional storage space, located under the seat.

The trailer is not approved and equipped to travel on public roads or on slopes/ramp with an inclination greater than 10 degrees.

Technical Specifications:
Loading area: 1400 x 1000 x 450 mm

Overall dimensions: 2900 x 1550 x 1300 mm

Loading height from ground: approx. 50 cm

Permissible payload: 550 kg

Empty weight: approx. 120 kg

Gradient capability: up to 10°

Braking system: Mechanical drum brake with hand and foot operation

Tires: 4.50-12″

Towing speed: 15 km/h

Mounting dimensions - dimensions are for guidance only and may vary slightly:

Inner diameter of mounting hole: 16.70 mm

Outer diameter of mounting: 32.30 mm
