This agricultural tractor is powered by a reliable brand-name diesel engine and features an advanced dry-friction, single-disc, dual-stage clutch with constant engagement for smooth operation. It includes hydraulic steering for easy maneuverability and a three-point linkage system for versatile implement mounting. The rear-mounted Power Take-Off (PTO) operates at speeds of 540/760 or 540/1000 RPM in semi-independent mode, facilitating a wide range of operational capabilities. Additionally, the tractor offers two-way hydraulic output for enhanced functionality.
Optional equipment available for this model enhances its adaptability to various working conditions and personal preferences. These options include Roll Over Protective Structure (ROPS), sunshade for protection against the elements, a cabin equipped with a heater for comfort in colder climates, multi-way valves for complex hydraulic operations, a swing drawbar for easier towing, and front and rear ballasts to improve stability. The shuttle shift feature allows for quick direction changes, streamlining work processes.
A variety of attachments expand the tractor's utility across different applications. These include a front-end loader and backhoe for digging and material handling, snow blowers, blades, and sweepers for winter maintenance, rotary tillers for soil preparation, wood chippers and log splitters for forestry work, and trailers for transportation tasks. This extensive array of attachments ensures that the tractor can be tailored to meet specific needs, making it an indispensable tool for any agricultural or small industrial operation.Also belonging to the TY series are the MX254-Y, MX354-Y.

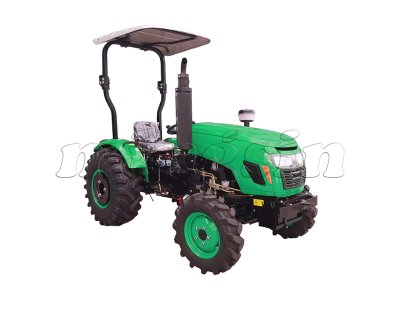

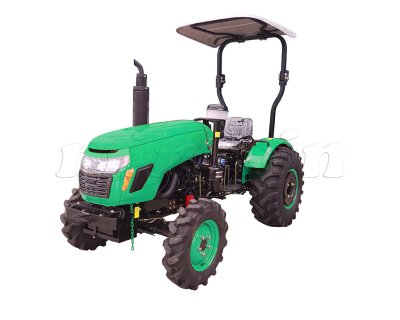

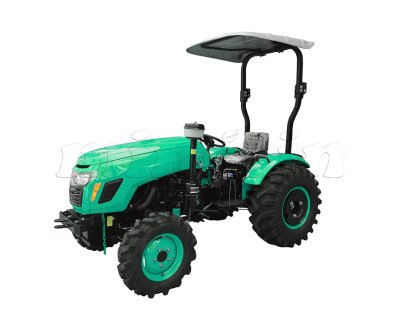

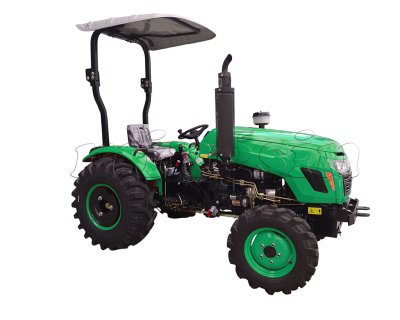

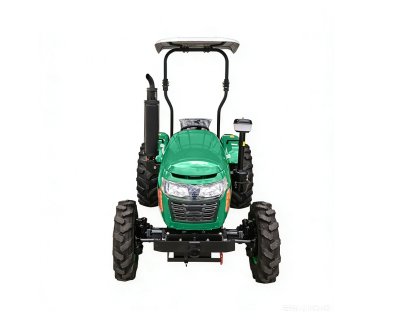

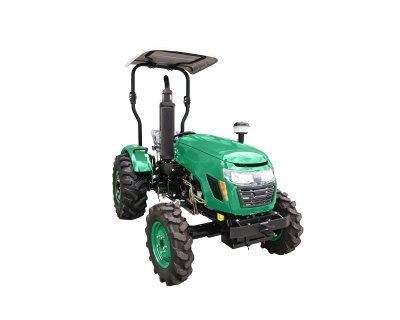

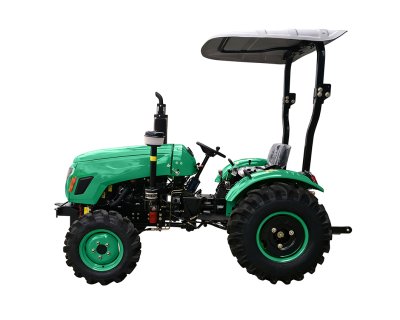

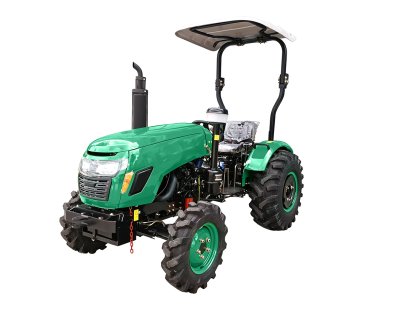

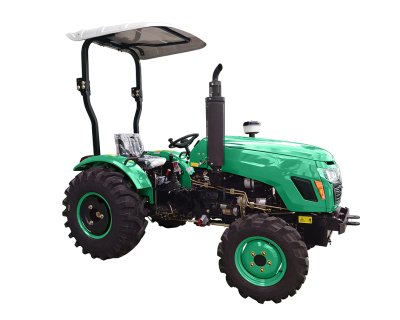

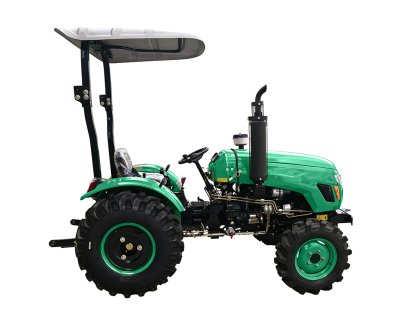

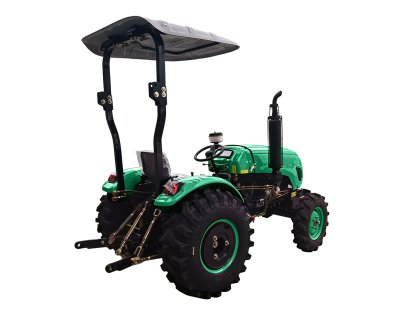

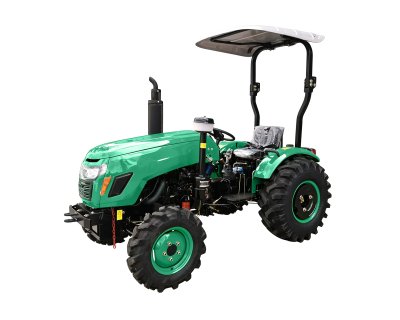

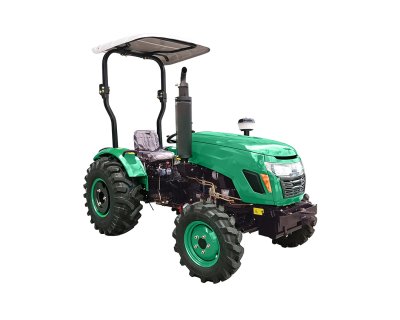

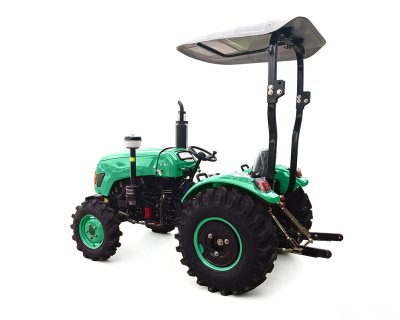

The Mingsin MX354-Y is a compact, utility-class four-wheel-drive agricultural tractor. As part of the performance-advanced TY (4WD) series, it features a direct-connect drivetrain designed specifically for efficient power transfer and durability. With a rated power of 35 horsepower, it strikes an ideal balance between capability and maneuverability. Its design prioritizes adaptability, offering numerous configuration options for the transmission, hydraulic systems, and implements to suit diverse user requirements and specialized tasks.
Features:
Advanced Drivetrain & Transmission: The tractor utilizes an efficient direct-connect system for high transmission efficiency and low vibration. It offers multiple transmission options, including a versatile (4+1) x 2 eight-speed gearbox, with the availability of a creeper gear for ultra-slow, high-torque operations.
Enhanced Traction & Field Performance: Equipped with a positive locking differential, it significantly improves the tractor's ability to navigate through muddy, uneven, or loose soil conditions by preventing wheel spin. The four-wheel-drive system provides superior traction and pulling power compared to two-wheel-drive models.
Versatile Hydraulic System: Features a standard hydraulic output interface, enabling the operation of trailers with tipping functions and various other hydraulic implements. Optional dual hydraulic circuits are available for more complex tasks.

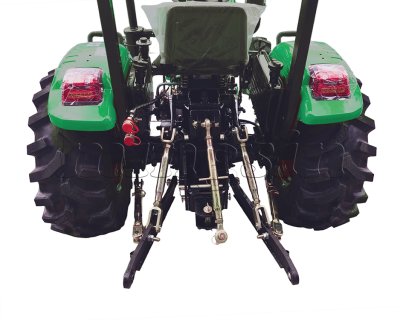

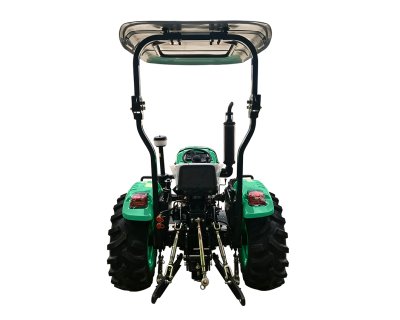

Operator-Focused Design: Comes with user-friendly features such as full hydraulic power steering for reduced operator fatigue. The rear three-point hitch is compliant with Category I (and optionally Category 0) implements, ensuring wide compatibility with standard farming tools.
Customizable Configuration: To cater to specific needs, buyers can choose from options including single or dual-stage clutches, fixed or adjustable wheel treads, and different tire configurations.
Smooth full hydraulic power steering delivers no kickback in the steering wheel for less operator fatigue. It’s really a tractor the whole family can operate.
Shuttle shift system is optional, gear shifting will be more lightweight and efficient, making your driving experience more relaxed.
Driver-oriented design idea provides easy access to all controls in the cab.
Hydraulic output is optional, making your tractor match more kinds of farm implements and meet your different demands.
Paddy wheel is optional, making it adapt to different working conditions
Transmission with 8 forward + 2 reverse gears (slip gear shift). You can choose to install the crawling gear structure which could double the number of the gears and provide you better traction. Another transmission with 10 forward + 2 reverse gears (clutch shift) is optional. You can also choose to install the crawling gear structure to make it become 20 forward + 4 reverse gears and provide you better traction. Driving speed covers the range of 0.32-38Km / h, meets the various demands of field working and road transportation.
Equipped with anti-rollover safety frame, which could effectively guarantee the driver`s body safe when the tractor overturns.
Equipped with awnings, your job is no longer limited by the weather.
Superior Adaptability: Excels in challenging terrains such as hillsides, orchards, and wet, muddy fields where extra traction and stability are crucial. Its compact size also makes it suitable for work in confined spaces like greenhouses.
High Efficiency & Power: The combination of a 35HP diesel engine and the 4WD drivetrain delivers strong pulling force, allowing for efficient completion of plowing, hauling, and other heavy tasks.
Reliable and Durable: Built with a robust chassis and a reliable drivetrain, it is designed for longevity and consistent performance in daily agricultural use. The straightforward mechanical design also facilitates easier maintenance.
Cost-Effective Operation: Known for fuel-efficient operation and lower maintenance requirements, it represents a practical investment for farmers seeking reliable performance without excessive running costs.
The Mingsin MX354-Y 4WD tractor is a versatile machine suited for a wide range of agricultural and property maintenance applications:
Field Cultivation: Ideal for primary tillage (plowing, harrowing), seeding, and cultivating on small to medium-sized farms.
Material Handling & Transport: Perfect for hauling trailers, moving feed, or transporting harvests around the farmyard, especially with its optional hydraulic trailer tipping function.
Specialized Crop Farming: Its maneuverability and optional high-clearance configuration make it excellent for operations in vegetable farms, orchards, vineyards, and agricultural greenhouses.
Livestock Farm Management: Useful for tasks like bedding management, feed distribution, and general maintenance on livestock farms.
Estate & Utility Work: Suitable for landscaping, light earthmoving, snow removal, and other property maintenance tasks.
Model | MX300-Y Compact Tractor | MX304-Y Compact Tractor | |
Drive Type | 4×2 | 4×4 | |
Engine | KM390BT | KM390BT | |
Engine Manufacturer | Laidong | Laidong | |
Engine Model | 390BT | 390BT | |
Engine Type | inline,vertical,water-cooled,four-stroke | inline,vertical,water-cooled,four-stroke | |
Cylinder diameter（mm） | 100 | 100 | |
Stroke（mm） | 115 | 115 | |
Max Torque(N·m)/Revolving Speed(rpm) | ≥109.8/≤1650 | ≥109.8/≤1650 | |
Displacement(L) | 1.81 | 1.81 | |
Fuel Tank Capacity(L) | 51 | 51 | |
Engine Rated Power (kW/rpm) | 22 | 22 | |
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤250 | ≤250 | |
Drive Train | |||
Clutch | Dry,single-stage | Dry,single-stage | |
Standard PTO speed(rpm) | (540，1000)/(750，1000)/(540，750) | (540，1000)/(750，1000)/(540，750) | |
Gears | 8F+2R | 8F+2R | |
Speed range（Km） | 2.25~28.78 | 1.9~24.23 | |
Steering type | mechanical steering | hydraulic steering | |
Gear Shift Mode | sliding gear shift | sliding gear shift | |
Break System | |||
Service Brake | pedal,mechanical drive,closed shoe type | pedal,mechanical drive,closed shoe type | |
Parking Brake | locked pedal | locked pedal | |
Hydraulic System | |||
Hydraulic Output Flow(L/min) | 30 | 30 | |
Hydraulic Output Valve | 1 way(optional) | 1 way(optional) | |
Working Device | |||
Three-Point Suspension | postposition,Category I | postposition,Category I | |
Max.Lifting Capacity(kN） | ≥4.95 | ≥4.95 | |
Tillage Depth Adjustment | draft and position adjustable | draft and position adjustable | |
General Parameter | |||
Overall Dimension(L×W×H)mm | With cab | / | / |
Without cab | 3105×1510×2105 | 3125×1455×2115 | |
Wheelbase(mm) | 1705 | 1755 | |
Min. operating weight(kg) | With cab | / | / |
Without cab | 1370 | 1580 | |
Min. Ground Clearance(mm) | 440 | 345 | |
Min.turning radius(mm) | 2900 | 3000 | |
Maximum Pull（KN） | 6.37 | 7.84 | |
Front Tire | 5.0-15 | 6.5-16 | |
Rear Tire | 11.2-24 | 11.2-24 | |
Optional Disposition | |||
hydraulic steering, | dual-stage clutch, | ||
