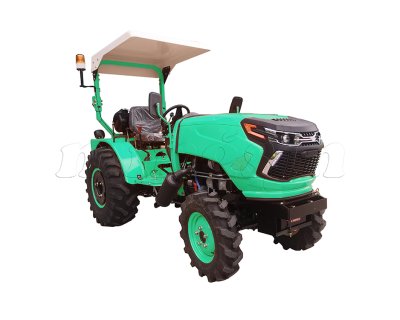

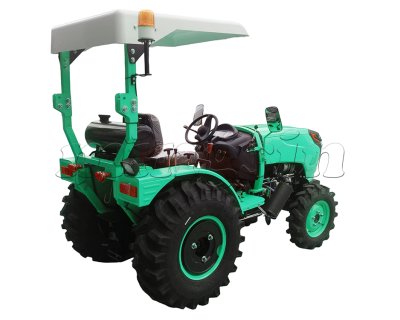

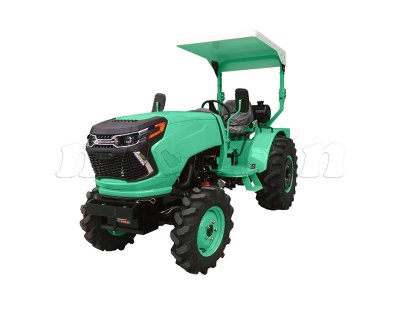

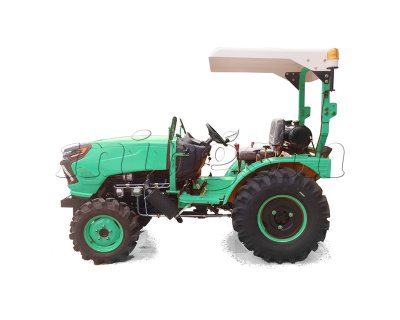

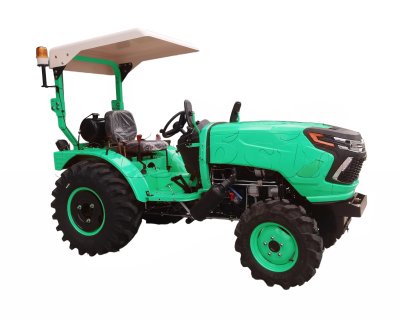

The TY254 compact tractor is a small, versatile agricultural machine designed for a variety of tasks on farms and in gardens. It's a popular choice for small-scale farmers and hobbyists due to its compact size, affordability, and ease of use.
The TY254 is a compact utility tractor designed for small to medium-scale agricultural tasks. Powered by a reliable 25-horsepower diesel engine, it delivers robust performance with 4-wheel drive and power steering for superior traction and maneuverability on rough terrain. Built for durability, its sturdy construction supports versatile use with attachments like plows, mowers, and loaders, ideal for tilling, landscaping, and material handling. The ergonomic operator station ensures comfort during extended use, while fuel efficiency and low maintenance enhance cost-effectiveness. A practical choice for farmers seeking adaptability and reliability in diverse rural applications.
TY254 compact tractor: Your Affordable High Quality Compact Tractors
Key features and specifications:
· Engine: Typically powered by a 3-cylinder diesel engine, producing around 25 horsepower.
· Transmission: Usually features a manual transmission with multiple forward and reverse gears, allowing for flexibility in different working conditions.
· Drive: Available in both 2-wheel drive (2WD) and 4-wheel drive (4WD) configurations, with 4WD offering better traction and performance in challenging terrains.
· PTO: Equipped with a Power Take-Off (PTO) shaft, enabling it to be used with a wide range of implements, such as mowers, tillers, and sprayers.
· Hydraulics: Features a hydraulic system for lifting and controlling implements.
· Compact size: Its small size makes it ideal for working in tight spaces and maneuvering around obstacles.
Common applications:
· Plowing and tilling fields
· Planting and harvesting crops
· Mowing lawns and fields
· Transporting materials
· Operating various implements
Overall, the TY254 compact tractor is a reliable and cost-effective machine suitable for a variety of agricultural and landscaping tasks. Its compact size and versatility make it a popular choice for small-scale farmers and hobbyists alike.
Item | Unit | Parameters | |
Tractor | Brand | / | Mingsin |
Model | / | 254 | |
Type | / | 4*4 wheel type | |
Usage | / | Farmland operations, transportation | |
Overall dimensions (L*W*H) | mm | 2330*1140*1200 | |
Wheelbase | mm | 1460 | |
Wheel track (Front wheel/Rear wheel) | mm | 960/960 | |
Minimum ground clearance | mm | 230 | |
Minimum operation weight | kg | 935 | |
Minimum radius | m | 3.8 | |
Weight of front axle and rear axle | kg | 405/530 (without ballast) | |
Maximum ballast weight (Front/Rear) | kg | 30/90 | |
Gears | / | 6/1 | |
Gear speed | km/h | Forward：L1:1.88/L2:4.37/L3:5.89; H1:6.95/H2:13.74/H3:21.83. | |
Connecting type between gearbox and engine | / | Direct connection | |
Starting method | / | Electric starting | |
PTO output | kw | ≥18.8 | |
Maximum traction | kN | ≥5.9 | |
Engine | Brand | / | Laidong |
Type | / | In-line, water-cooled, vertical, four-stroke | |
Intake method | / | naturally aspirated | |
Compression ratio | / | 18:01 | |
Rated power | kw | 18.4 | |
Rated speed | r/min | 2350 | |
Injection pump model/type | / | VE3/10E1175RLD03/Single acting plunger type | |
Injector model/type | / | KBAL-P043 Hole Type | |
Air filter model/type | / | Oil bath type,TF500 | |
Starter model | / | QD139 | |
Cooling system type | / | forced water cooling | |
Headlights | Specification model | / | BQ1045 |
Seat | Specification model | / | 629 |
Suspension type | / | Stationary | |
Fuel tank | Specification model | / | TY180.50.001(Dual Side Fuel Tank) |
Silencer | Muffler chamber size (length*width*thickness or straightness) | mm | Φ100×453 |
Mass | kg | 3.2 | |
Steering and braking system | Steering system type | / | Fully Hydraulic Steering |
Steering gear type | / | Cycloid Rotary Valve Hydrostatic Steering | |
Brake system type | / | Mechanical, Shoe Type | |
Clutch type | / | Single-disc, dry, single-acting, normally combined | |
Gearbox type | / | 3×2+1 Mechanical Combined | |
