Mini tractors have become indispensable for small-scale farming, horticulture, and estate maintenance, offering the versatility of full-sized tractors in a more compact and maneuverable package. Understanding the different types and their specific applications is crucial for making an informed purchase.

Classification by Power and Weight

Mini tractors are generally categorized into three main groups based on engine power and overall mass:

Light-Duty Mini Tractors (Up to 24 HP): These are the most compact and agile models, ideal for small gardens, greenhouses, and nurseries. They are typically equipped with gasoline engines and are suitable for light tillage, mowing, and transporting small loads. Their lightweight design minimizes soil compaction and allows for operation in confined spaces.

Mid-Range Mini Tractors (25–45 HP): This category represents the sweet spot for most small to medium-sized farms (up to 5 hectares). Often featuring diesel engines for better fuel efficiency and torque, these tractors can handle a wider array of tasks, including plowing, harrowing, and operating PTO-driven implements like rotary tillers and balers.

Heavy-Duty Mini Tractors (Over 40 kW / ~54 HP): Despite their "mini" designation, these powerful machines offer capabilities approaching those of standard agricultural tractors. They are designed for more intensive commercial operations, featuring robust three-point hitches, high hydraulic capacity, and the ability to use heavy attachments.

Specialized Configurations

Beyond power classes, mini tractors come in specialized configurations for specific environments:

Orchard & Vineyard Tractors: These feature a narrow profile to navigate between rows of trees or vines without damaging crops. They often have a low center of gravity for stability on slopes.

Articulated Frame Tractors: Some models feature a pivoting joint in the middle of the chassis. This design provides exceptional maneuverability and a tight turning radius, making them ideal for working in very tight spaces.

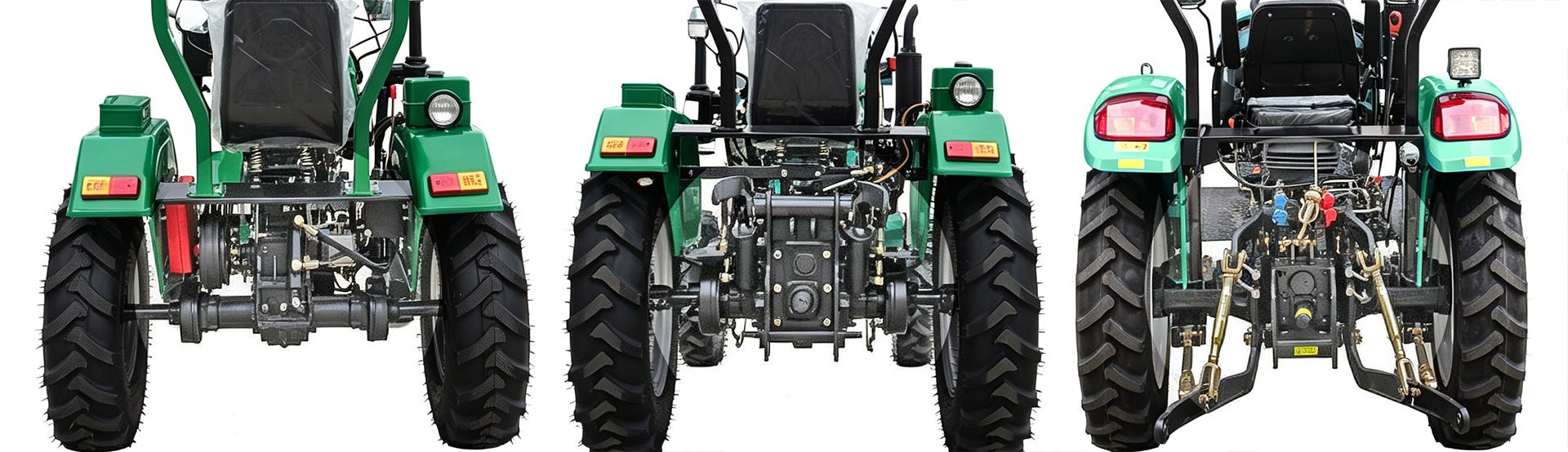

The design of the rear linkage is a key parameter

Mini tractors with a rear attachment system dominate the market for compact machines for agriculture. From Mingsin Mini Tractor, they are divided into two main groups - with a belt drive and with a classic cardan drive through a PTO.

Belt models are equipped with a single-point, less often a three-point fastening system. A belt tractor with a single-point fastening system works on a principle similar to that of a walk-behind tractor. This is not surprising, because it is mini-tractors with a belt drive that are the next level of mechanization of private farmsteads after walk-behind tractors in terms of dimensions, power, and other parameters. Transmission through the belt is a really simple and affordable design. Such tractors are most often rear-wheel drive, but there are also all-wheel drive. In general, they are designed for light agricultural and communal work in subsidiary farms.

Cardan models, although still distinguished by their compact size and other distinctive features of mini-tractors, are equipped with a full-fledged power take-off shaft and a three-point hitch system instead of a single-point one. This is a more versatile format that allows you to connect a wide range of equipment, from a rototiller to a baler. In this category, there are both rear-wheel drive and all-wheel drive versions. But the market leaders are still models with all-wheel drive. As, for example, compact Mingsin tractors, presented in the catalog "MS SERIES MINI TRACTOR". A little further in the text, we will consider this engineering feature in more detail.

The PTO can differ in the number of revolutions - 540, 720 or 1,000 rpm. Many modern models are equipped with a dual-range power take-off shaft, which expands compatibility with equipment from different manufacturers.

Division into types of mini-tractors by type of drive

According to the design of the transmission, mini-tractors, as we have just said, are divided into rear-wheel drive and all-wheel drive. Rear-wheel drive is a classic solution for flat areas with a moderate load. It is simpler in design, more economical to maintain and fully justified when working on dry soil and the need to operate in a flat mode, limited in power and traction.

All-wheel drive provides better traction, stability and traction. It is relevant when working with a plough, milling machine, front loader, as well as on wet, loose or uneven areas.

This configuration ensures optimal power distribution to all wheels, significantly reducing slippage and enhancing maneuverability in challenging terrains. Consequently, operators can maintain consistent working speeds and achieve higher efficiency, even under heavy loads or adverse conditions. The improved stability not only boosts productivity but also minimizes soil compaction and wear on the machinery. Therefore, selecting all-wheel drive is a strategic choice for tasks demanding superior grip and control, ensuring reliable performance across diverse agricultural and construction applications.

If we talk about Mingsin equipment and other serious manufacturers, a significant part of their models are supplied in all-wheel drive. This simplifies the choice - the equipment is initially focused on universal use and maximum capabilities within its class. In the segment of belt tractors, it is the opposite: rear-wheel drive is more common, and all-wheel drive versions are presented in a limited way and are rather an exception.

Key Selection Factors

When choosing a mini tractor, consider the following:

Primary Application: Define the main tasks (e.g., mowing, tilling, loading, snow removal) to determine the required horsepower and attachment compatibility.

Terrain and Environment: Assess your land's topography. Sloped or uneven terrain may require 4-wheel drive and a low center of gravity.

Attachment Ecosystem: Ensure the tractor is compatible with the specific implements you need, such as rotary tillers, cultivators, seed drills, sprayers, and front-end loaders.

Service and Support: Opt for models with readily available spare parts and a reliable dealer network in your region.

By carefully evaluating these categories and factors, you can select a mini tractor that delivers optimal performance and long-term value for your specific needs.
