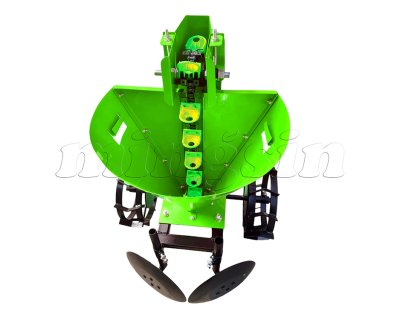

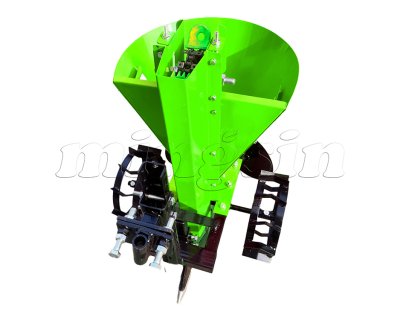

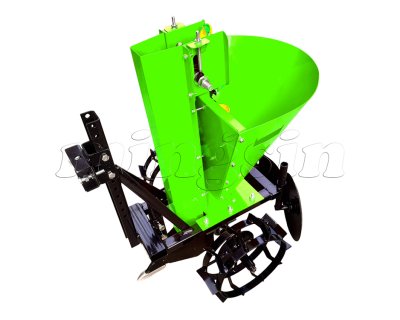

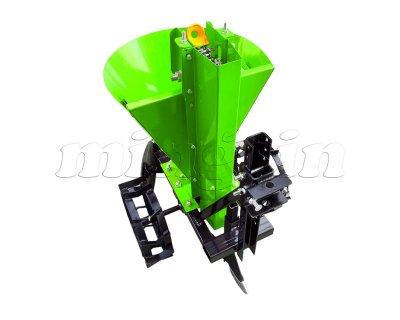

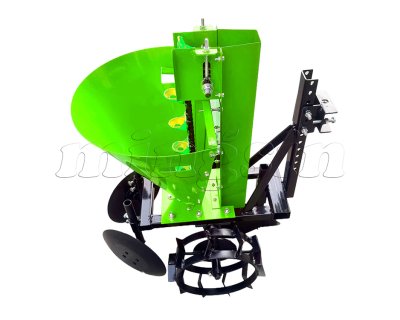

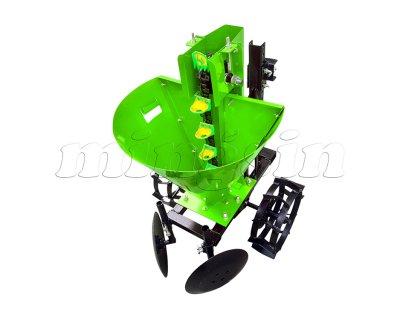

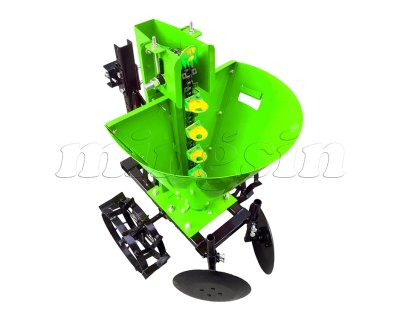

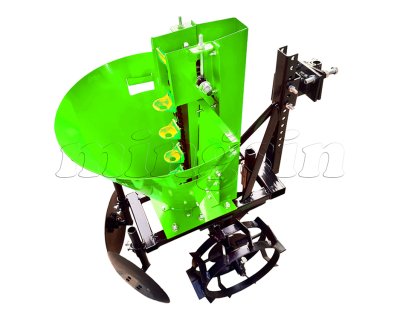

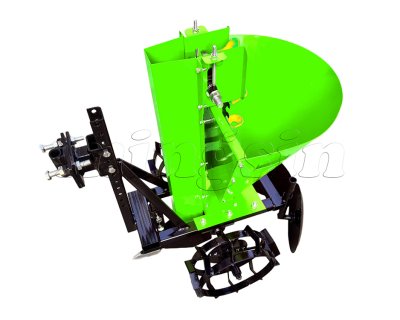

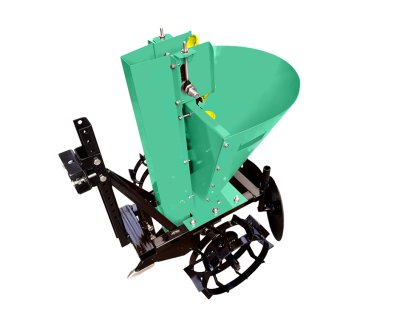

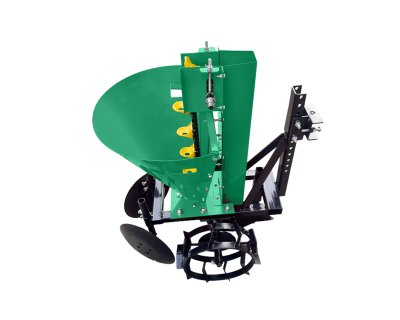

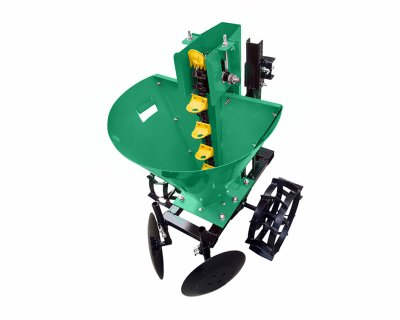

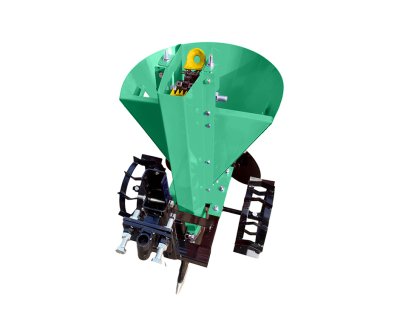

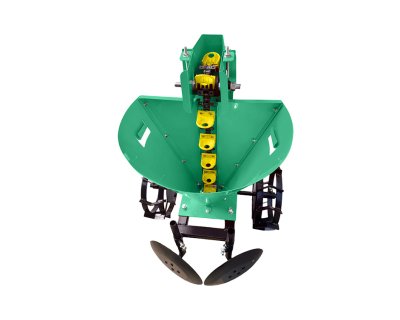

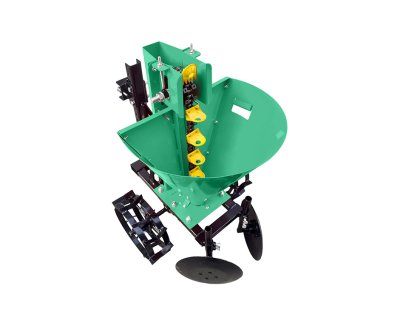

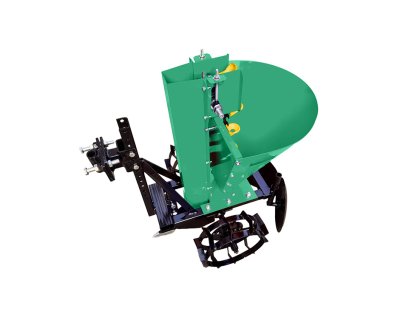

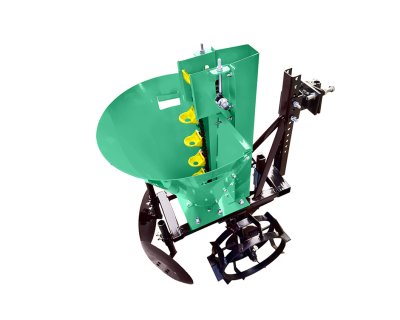

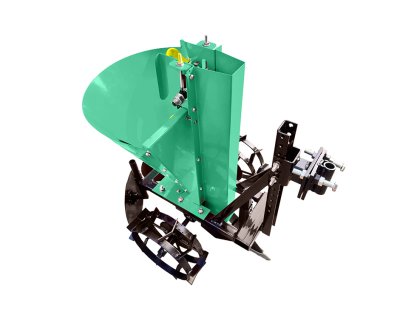

1 row potato planter is mounted on two-wheel tractor or cultivaotr. It is an ideal and modern agricultural machine for planting potato, pachyrhizus and some tubers planters etc, for different areas, natural environments, geographical features, climates, soils and agriculture demands. It can make furrows, automatically seeds the potatoes and hills the potatoes with soil.
1 row potato planter is mounted on two-wheel tractor or cultivaotr. It is an ideal and modern agricultural machine for planting potato, pachyrhizus and some tubers planters etc, for different areas, natural environments, geographical features, climates, soils and agriculture demands. It can make furrows, automatically seeds the potatoes and hills the potatoes with soil.
Key features
Hopper: A container to hold seed potatoes.
Automatic Metering System: A mechanism (often cup or picker type) that picks up individual seed potatoes from the hopper and drops them at consistent intervals into the furrow.
Furrow Openers: Discs or shovels that create the trench (furrow) in the soil where the seed potatoes are deposited.
Furrow Closers/Soil Covering Discs: Wheels or discs that follow the planter, covering the seed potatoes with soil after they are dropped into the furrow.
Ground Drive: The planter's metering mechanism is usually powered by a ground-driven wheel, ensuring planting spacing is directly linked to the forward movement speed.
Adjustability: Typically allows adjustment of planting depth, spacing between seed potatoes, and sometimes the depth/width of the furrow.
Durability: Constructed from robust materials (often steel) to withstand field conditions.
Efficiency: Significantly speeds up and simplifies the potato planting process compared to manual methods.
Technical Specifications:
Overall dimensions (mm):750* 620*880 mm
The capacity of the seeding box :10-15 kgs
Number of rows :1 row
Weight :40kgs
Sowing depth: 50-150mm
Productivity :0.07-0.13 hec./hour
Matching power :8-18 horsepower micro-tiller or walk-behind tractor
Trenching form: Plow foot type
Sowing hole spacing: Adjustable 200-250mm
