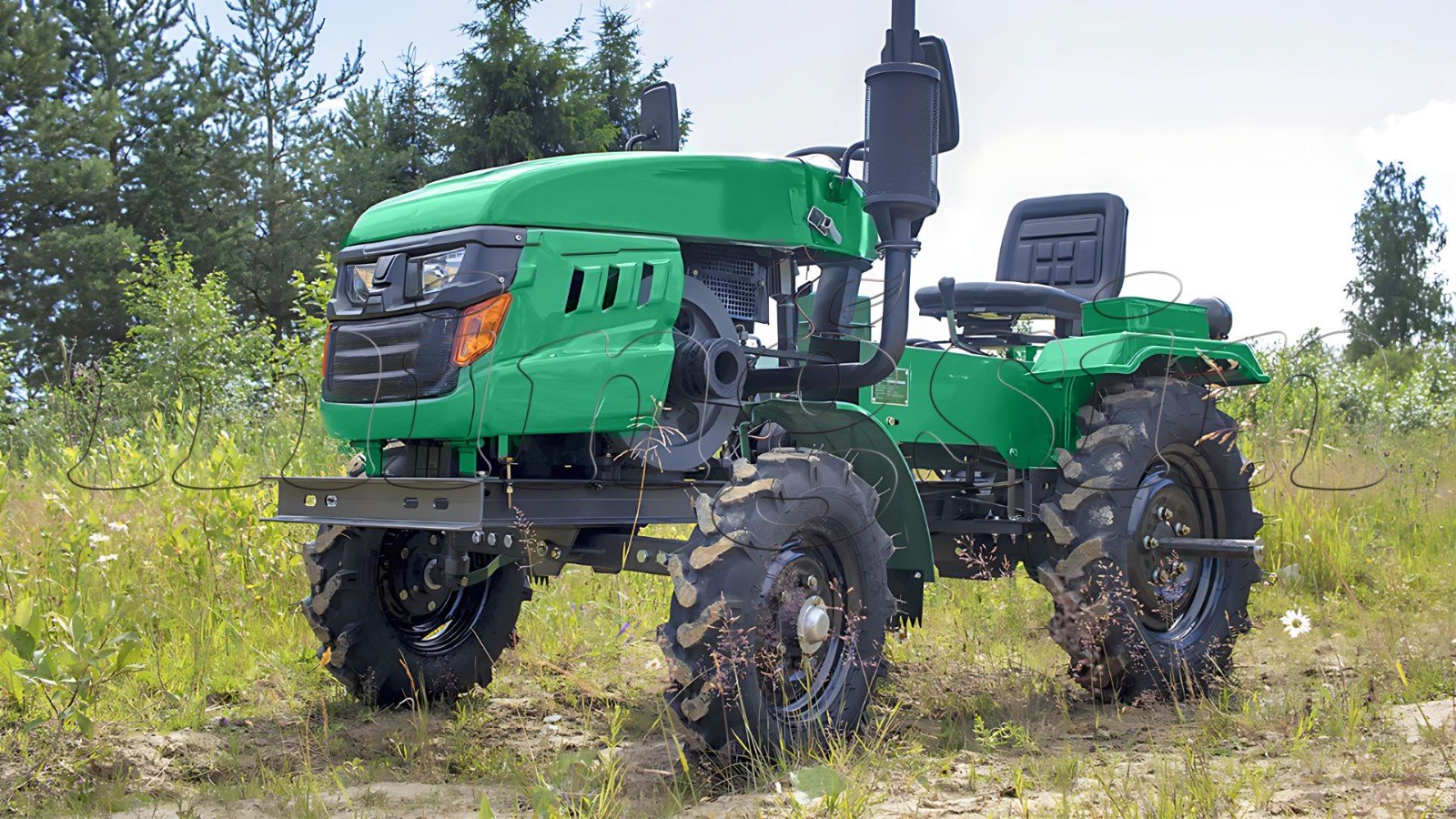

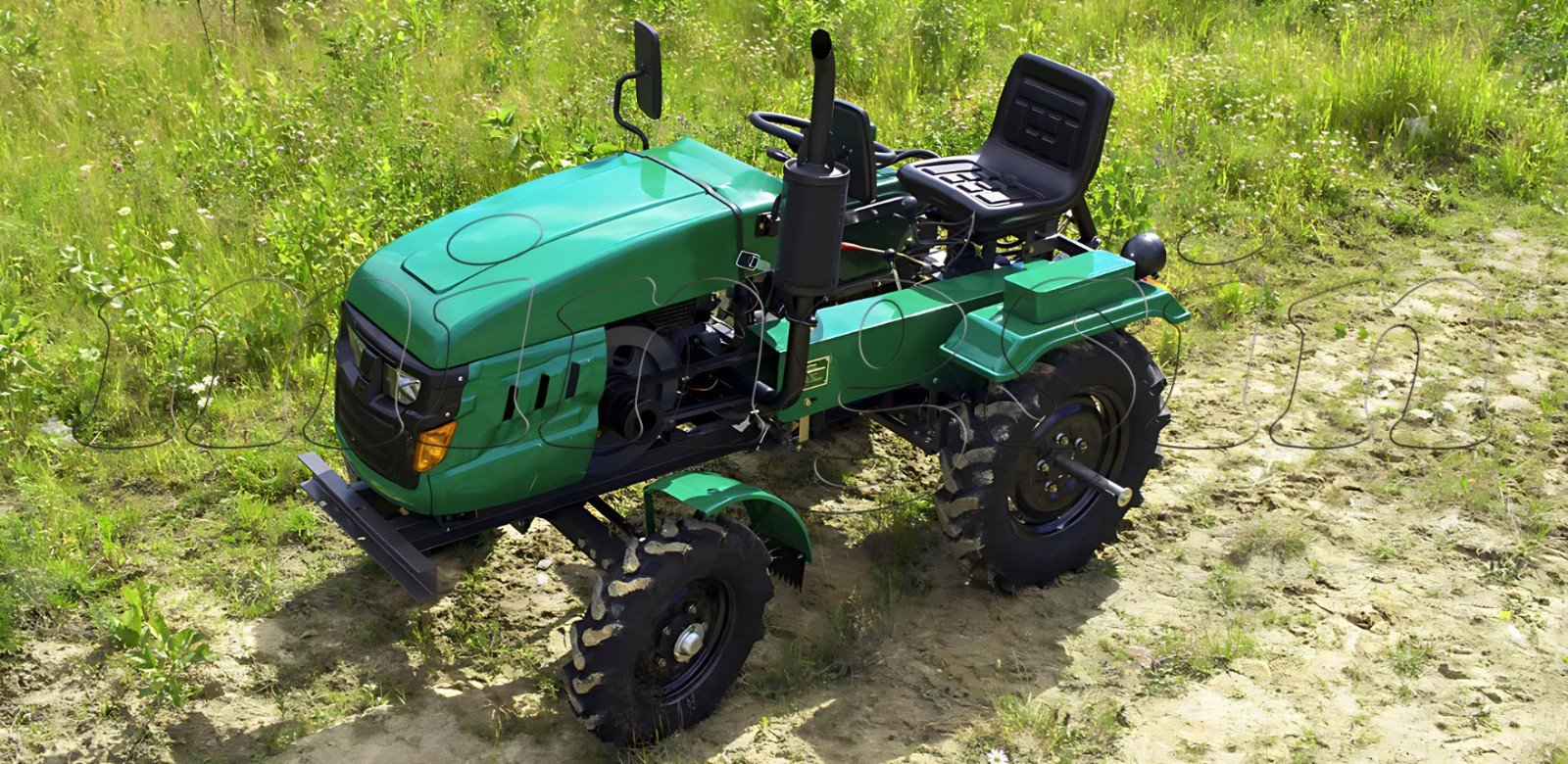

The China 20hp Mini Tractor is a cost-effective yet highly reliable machine, widely favored in China and Eastern Europe for its durability and performance. Designed for small to medium-scale farming, landscaping, and general-purpose applications, this compact tractor is powered by a dependable diesel engine that delivers excellent efficiency with low fuel consumption.
Ideal for tasks such as plowing, tilling, mowing, and hauling, this mini tractor offers outstanding maneuverability, making it perfect for working in tight spaces. Its user-friendly operation and low maintenance requirements make it a preferred choice for homeowners, small-scale farmers, and gardening enthusiasts seeking an affordable and effective solution to enhance productivity.
Manufactured with high-quality components, the China Mini Tractor 12-20HP undergoes strict quality control measures at every stage of production to ensure superior performance and longevity. Whether for residential or light commercial use, this mini tractor is built to handle a variety of agricultural and landscaping tasks with ease.

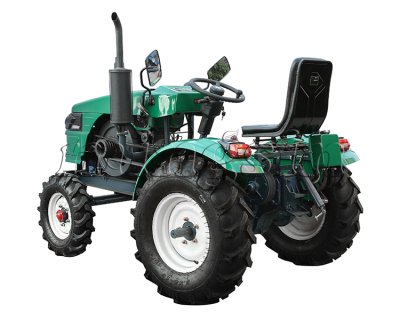

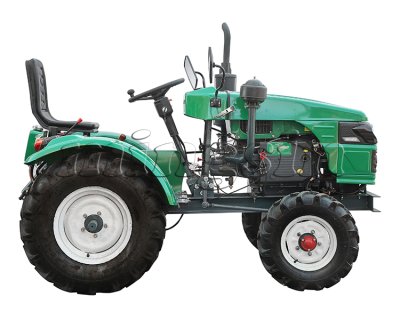

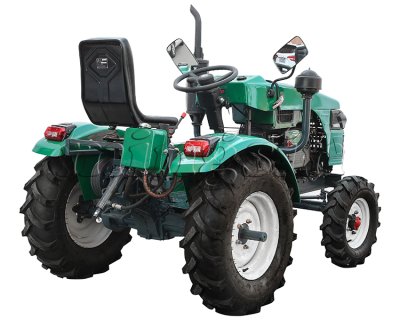

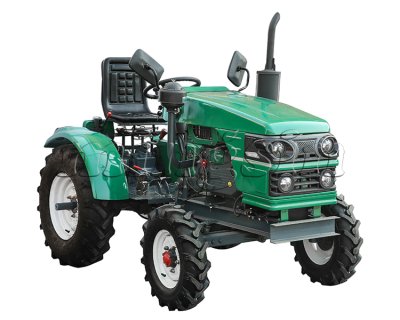

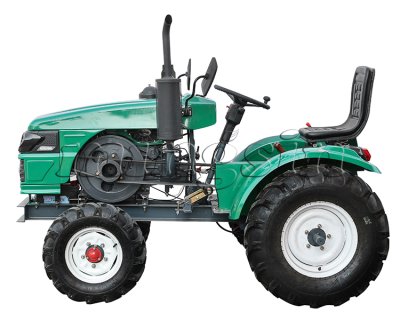

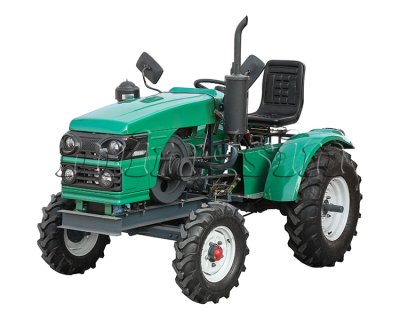

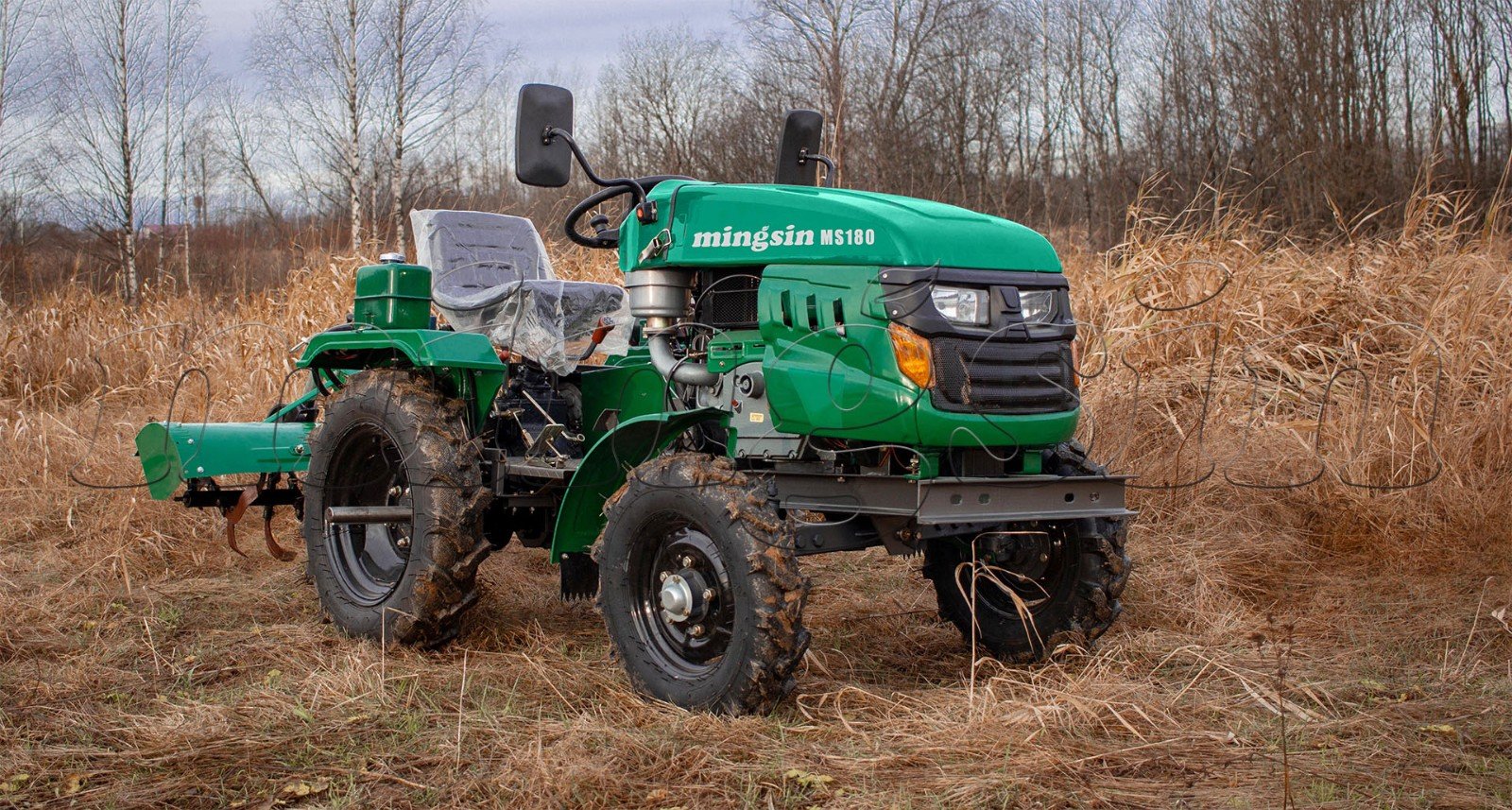

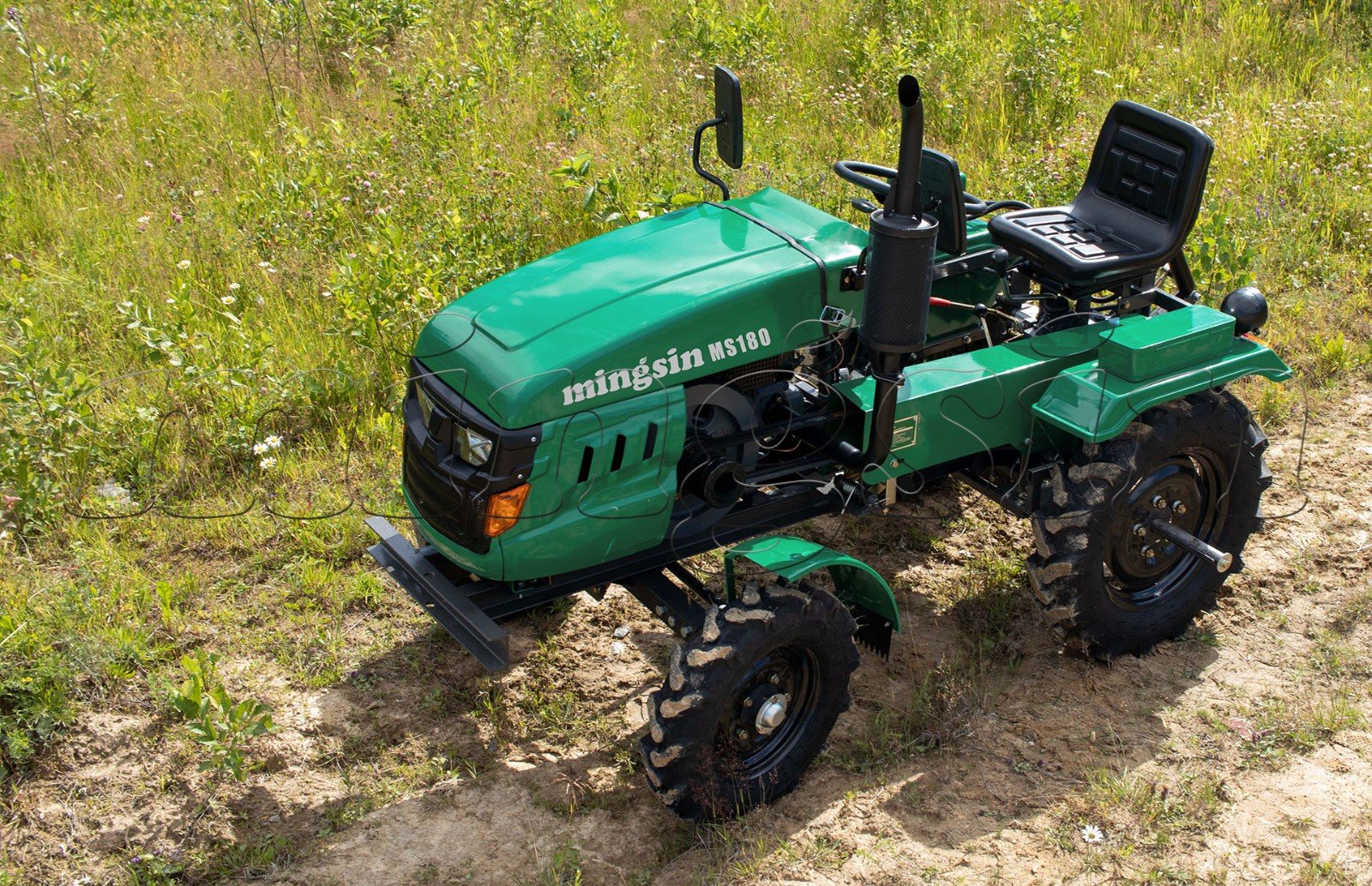

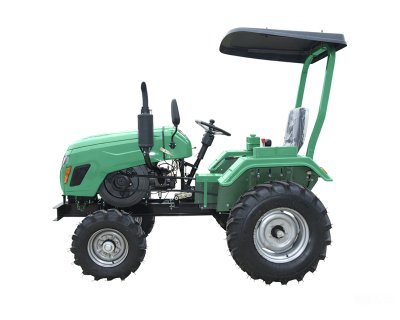

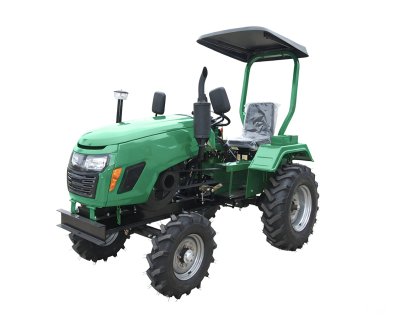

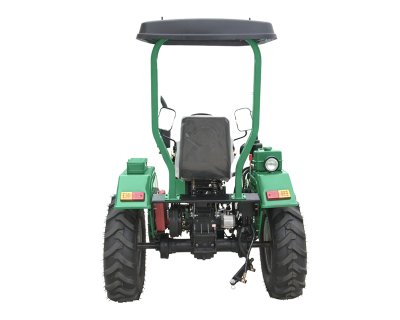

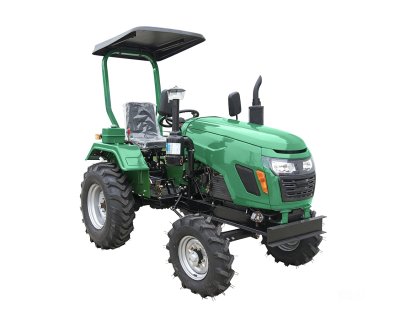

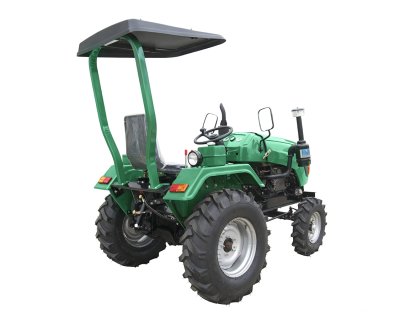

Mingsin 20HP China Mini Tractor | Compact Agricultural Machinery

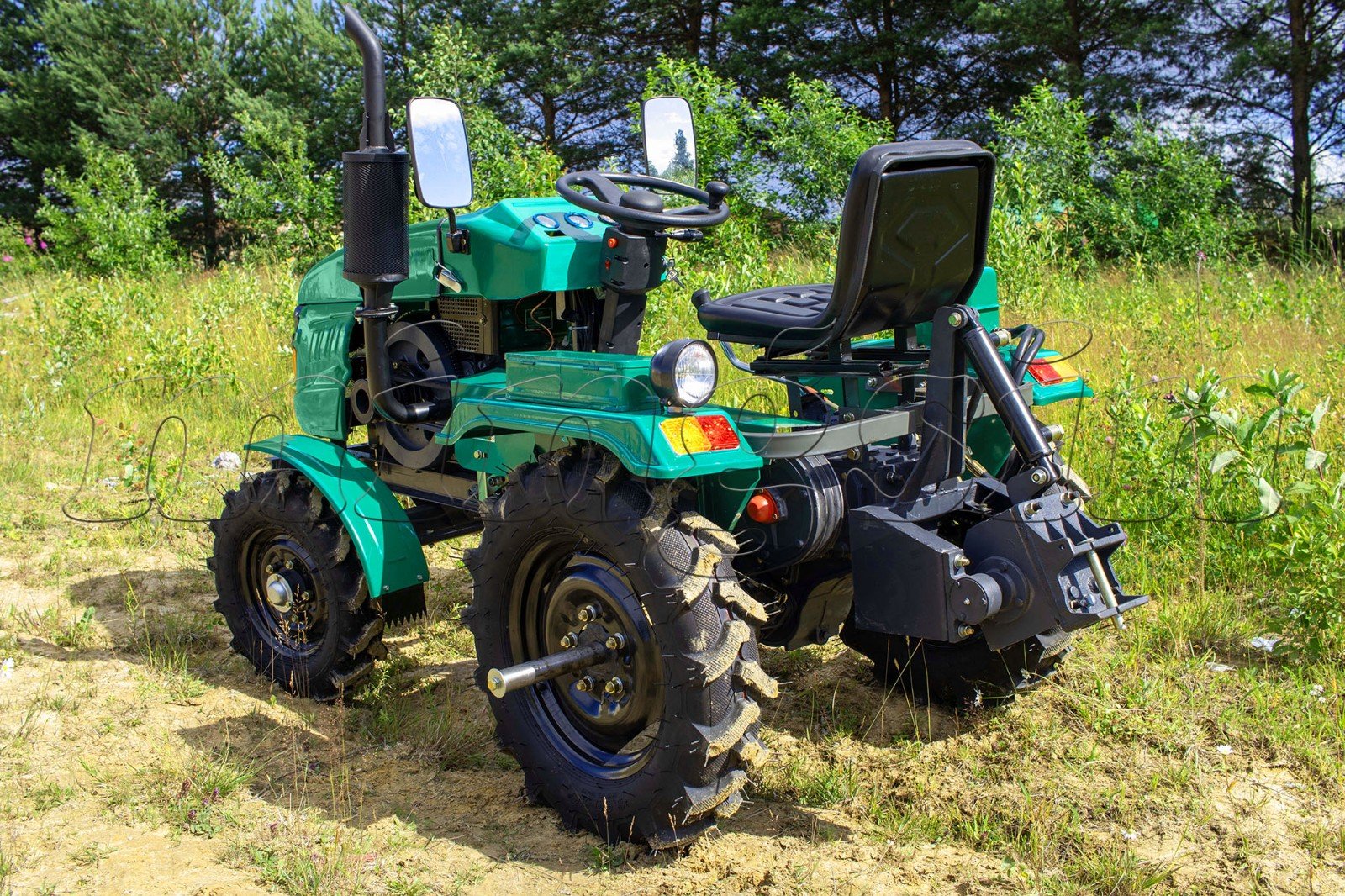

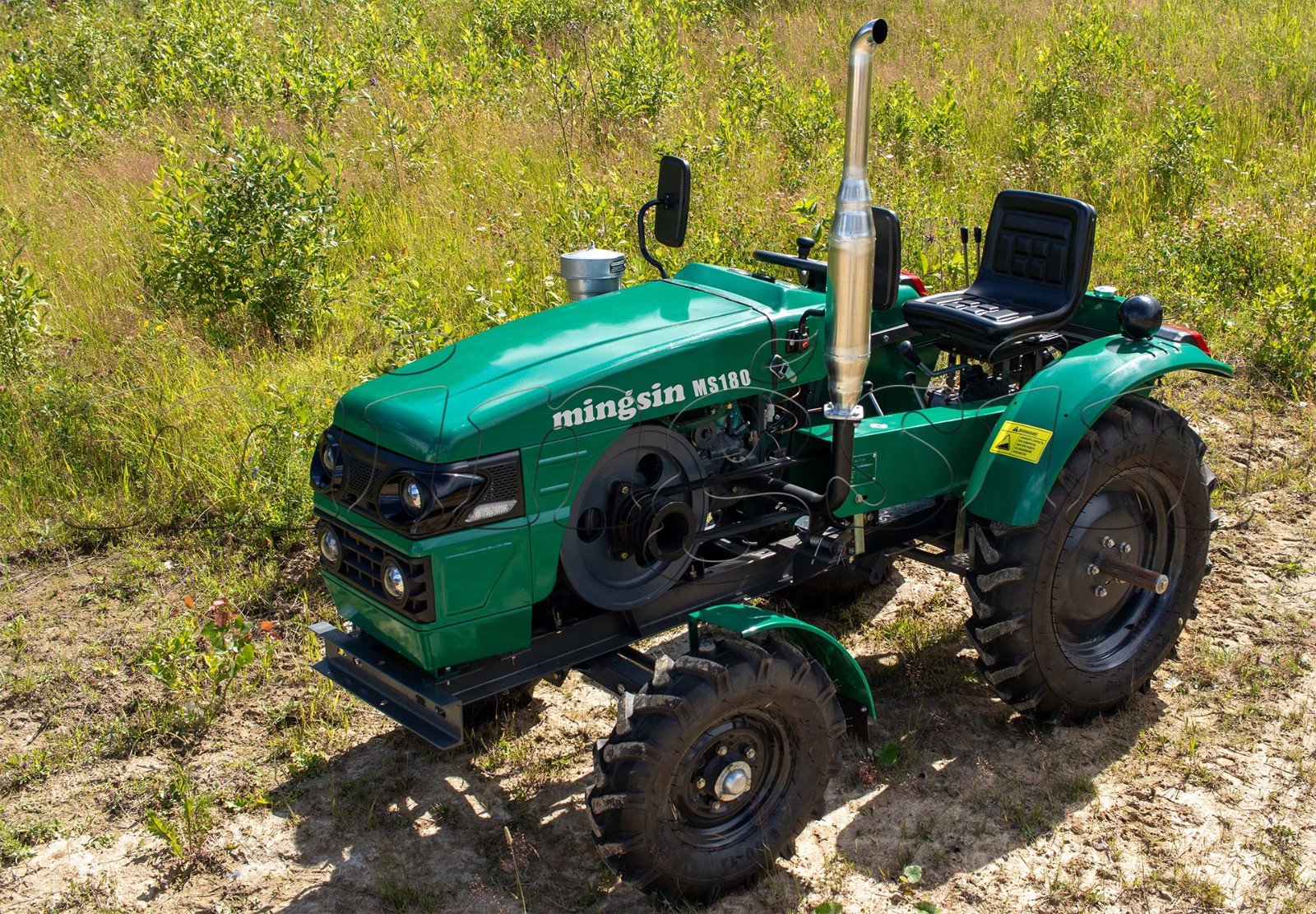

The Mingsin 20HP China Mini Tractor is a belt-driven, compact, and versatile agricultural machine designed for efficient farm and yard work. Combining reliability, durability, and affordability, this mini tractor is widely used in China and Eastern Europe.
Differential Lock for improved traction on uneven terrain.
Reinforced Chassis based on a specialized motor-tractor frame.
Worm Steering Mechanism ensuring excellent maneuverability.
Full Tractor Transmission for reliable power transfer.
Enhanced Dashboard featuring an oil pressure gauge, coolant temperature gauge, and ammeter.
Comprehensive Hydraulic System with a dual-section hydraulic distributor for compatibility with various attachments.
Ergonomic Design with a comfortable seating position, conveniently placed pedals, and spacious operator controls.
Adjustable Track Width ranging from 1,080 to 1,450 mm.
Durable Dry Disc Clutch for smooth and easy gear engagement.
High-Quality Transmission Housing made from cast iron with magnesium for shock resistance.
Advanced Steering System with redesigned front axle linkages for a tight turning radius.
AISIN Oil Seals preventing leaks even under heavy vibrations.
Versatile Hitch System allowing the use of attachments from various manufacturers.
Extended Lifespan Components, including V-belts lasting up to 3,000 hours with proper tension adjustment.
Easy Maintenance with widely available and affordable spare parts.
The Mingsin 20HP mini tractor is designed to handle a wide range of agricultural tasks, including:
Soil Preparation: Plowing, cultivating, and tilling.
Planting & Harvesting: Using seeders and diggers.
Grass Mowing: Compatible with various mower types, including rotary mowers.
Snow Removal: Effective with a snow blade attachment.
Load Transport: Capable of towing trailers for agricultural and utility use.
Stationary Power Source: Can be used for water pumping and irrigation.
Equipped with a 2-vector hydraulic system, the Mingsin 20HP allows simultaneous operation of multiple attachments, such as a dozer blade and a rotary brush. The hydraulic system supports three modes:
Floating Mode: Ensures equipment follows the terrain.
Locking Mode: Keeps attachments fixed at any height.
Forced Lowering & Lifting: Enables precise depth control.
Reliable Diesel Engine with a unique Direct Injection 40 DI-EM system for improved combustion efficiency.
Low Fuel Consumption: Ranges between 1.2 - 2 liters per hour, making it highly economical.
Quiet Operation: More silent compared to conventional engines.
Liquid Cooling System: Allows continuous operation for up to 10 hours without overheating.
Reinforced Frame for supporting heavy-duty attachments.
QT500 Gearbox Housing: A durable cast iron and graphite alloy for superior strength.
Extended Belt Drive Lifespan: Equipped with perforated idler pulleys to reduce wear.
High-Mounted Hydraulic Cylinder for protection against dust and dirt.
Electric Starter for effortless ignition, especially in cold weather.
6-Speed Transmission with three forward and two reverse gears, achieving speeds up to 40 km/h.
Quick Coupling System for easy attachment changes.
Multiple Color Options to suit different market preferences.
Enhanced Dashboard: Now featuring a digital engine hour meter and precise oil pressure readings.
Redesigned Hydraulic Pump: Eliminates the need to switch hoses for front attachments.
Five-Drive Pulley System: Simplifies mower installation without hood removal.
Improved Differential Lock Mechanism: Now featured in all Mingsin models.
The Mingsin 20HP China Mini Tractor is a powerful, fuel-efficient, and cost-effective solution for small farms and agricultural businesses. With continuous technical refinements and a robust build, it offers outstanding value for farmers looking for a reliable workhorse. Whether for plowing, mowing, transporting, or harvesting, this compact tractor provides excellent performance at an affordable price.
Model | MS120 Mini Tractor | MS150 Mini Tractor | MS180 Mini Tractor | MS200 Mini Tractor | |
Overall dimensions:(L×W×H) | 2140×905×1175mm Without rotary tiller | ||||
Overall dimensions:(L×W×H) | 2600×1000(1200)×1175mm With rotary tiller | ||||
Front wheel size | 4.00-8 (4.00-12, 4.00-14, 5.00-12) | ||||
Back wheel size | 5.00-12 (6.50-16, 7.50-16) | ||||
Ground clearance | 180mm | ||||
Working weight (with rotary tiller) | 485kg | 490kg | 530kg | 540kg | |
Working weight (without anything) | 400kg | 405kg | 445kg | 455kg | |
Transmission style | V-belt tension | ||||
V-belt model | B3200 | ||||
Steering style | Steering wheel power steering system | ||||
Brakes | Two side wheel brake | ||||
Starter | Electric start/Hand crank | ||||
Seat | Adjustable | ||||
Gear style | (3+1)*2; 6 Forward, 2 Reverse | ||||
Speed | Forward | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 | |||
Reverse | 1.29, 5.22 | ||||

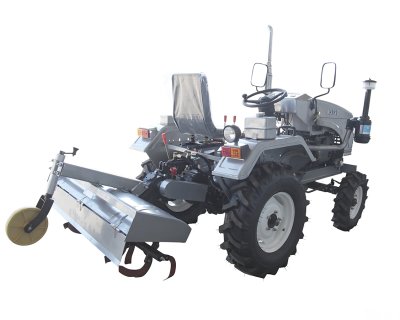

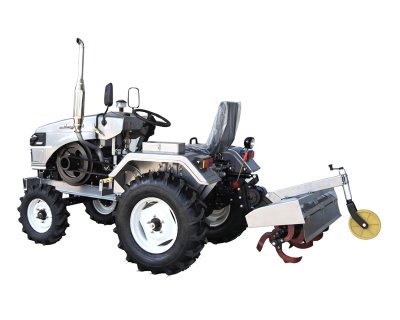

Rotary tiller | Transmission Type | Middle Transmission or Side Transmission | |||
Width | 1000-1200mm | ||||
Number of blades | 18-22 pcs | ||||
Working depth | 100-180mm | ||||
Up and down control | Hydraulic system | ||||
Engine | Model | 12NDL | 13NDL | 15NDL | 16NDL |
Type | 1cylinder,4-stroke,horizontal,water-cooled,diesel | ||||
Cooling mode | Condenser (Radiator) | ||||
Rated power | 8.82kw/15hp | 9.55kw/13hp | 11.03kw/15hp | 11.76kw/16hp | |
Combustion system | Swirl or Direct Injection | ||||
Cylinder bore | 92mm | 92mm | 95mm | 100mm | |
Piston stroke | 90mm | 95mm | 98mm | 100mm | |
Compression ratio | 18:01 | ||||
Rated speed | 2400rpm | ||||
Fuel efficiency: | ≤2264gl/kw.hr | ≤257gl/kw.hr | ≤245gl/kw.hr | ≤240.2gl/kw.hr | |
Displacement | 0.598L | 0.632L | 0.695L | 0.785L | |
