Powerful YTO Engine
Equipped with a renowned YTO brand vertical, water-cooled, 6-cylinder, 4-stroke engine, delivering high performance with low fuel consumption and minimal noise and vibration.
Double-Action Clutch
Includes a dual-action clutch for independent and more efficient operation.
Hydraulic Steering System
Full hydraulic steering offers a smaller turning radius, ensuring smooth, responsive, and reliable maneuverability.
Advanced Gearbox
Features a 4×(2+1)×2 transmission with creeper gear, providing 16 forward and 8 reverse speeds for enhanced flexibility and efficiency in various field conditions.
Synchronizer Gear Shifting
The main gearbox uses a synchronizer for smoother shifting, reducing gear wear and extending service life. The range shifting uses a toothed gear system, delivering optimal performance and cost-efficiency.
High-Quality Front Axle
Built with a well-known, durable front axle designed for superior structural strength and performance.
Independent Hydraulic System
Comes with a dedicated hydraulic oil system, ensuring high reliability and stable operation.
Reinforced Chassis
The strengthened chassis offers excellent load-bearing capacity and long-term durability.
Enhanced Pressure Lifter
Equipped with an upgraded hydraulic lifter that delivers greater lifting capacity, smoother operation, and higher reliability.
Carbon Fiber Cabin & Covers
The cabin and covers are made from carbon fiber composite material—eight times stronger than steel yet one-fourth the weight. This material offers outstanding durability with no discoloration for up to 20 years, and exceptional resilience, restoring its shape even after strong impacts.
ALSO belonging to the TD series are Wheel Tractor MX904-D, Wheel Tractor MX954-D, Wheel Tractor MX1004-D, Wheel Tractor MX1104-D, Wheel Tractor MX1204-D.

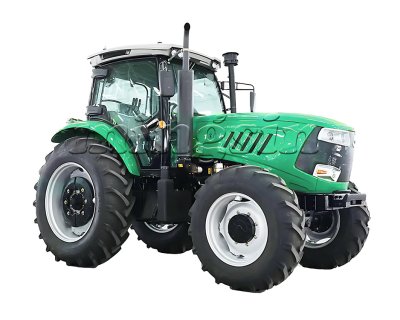

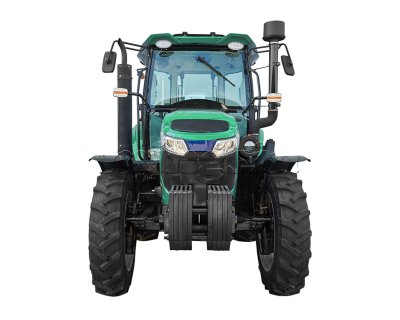

The MX1304-D Mingsin tractor features a 16+8 synchronizer transmission and is an advanced agricultural model developed by the Mingsin European technology team. Designed for a wide range of users—from individual households to small, medium, and large farms—it combines power, efficiency, and comfort. The Q Series tractors are known for their smooth driving experience, fuel economy, reliable performance, and user-friendly design, offering a new level of productivity and multi-functional capability.
Powerful YTO Engine
Equipped with a renowned YTO brand vertical, water-cooled, 6-cylinder, 4-stroke engine, delivering high performance with low fuel consumption and minimal noise and vibration.
Double-Action Clutch
Includes a dual-action clutch for independent and more efficient operation.
Hydraulic Steering System
Full hydraulic steering offers a smaller turning radius, ensuring smooth, responsive, and reliable maneuverability.
Advanced Gearbox
Features a 4×(2+1)×2 transmission with creeper gear, providing 16 forward and 8 reverse speeds for enhanced flexibility and efficiency in various field conditions.
Synchronizer Gear Shifting
The main gearbox uses a synchronizer for smoother shifting, reducing gear wear and extending service life. The range shifting uses a toothed gear system, delivering optimal performance and cost-efficiency.
High-Quality Front Axle
Built with a well-known, durable front axle designed for superior structural strength and performance.
Independent Hydraulic System
Comes with a dedicated hydraulic oil system, ensuring high reliability and stable operation.
Reinforced Chassis
The strengthened chassis offers excellent load-bearing capacity and long-term durability.
Enhanced Pressure Lifter
Equipped with an upgraded hydraulic lifter that delivers greater lifting capacity, smoother operation, and higher reliability.
Carbon Fiber Cabin & Covers
The cabin and covers are made from carbon fiber composite material—eight times stronger than steel yet one-fourth the weight. This material offers outstanding durability with no discoloration for up to 20 years, and exceptional resilience, restoring its shape even after strong impacts.
Technical Specifications
Model | MX1200-D | MX1250-D | MX1300-D | MX1204-D | MX1254-D | MX1304-D | ||
Type | 2WD Wheeled Type | 4WD Wheeled Type | ||||||
Dimensions of Tractor(mm) | Length (to front ballast) | 2WD:4260 4WD:4630 | ||||||
Width | 2050 | |||||||
Height (to the exhaust vent) | 2510 | |||||||
Wheelbase | 2200 | |||||||
Tread | Front Wheel | 2WD: 1385~1685 (Usual 1485) 4WD:1610 | ||||||
Rear Wheel | 1620~2020(Usual 1620) | |||||||
Min.Ground Clearance | 430 | 405 | ||||||
Structure weight (kg) | 3250 | 3540 | ||||||
Ballast weight | Front ballast | 250 | ||||||
Rear ballast | 170 , 340 , 510 (optional) | |||||||
Engine | Model | LR6B5-23 | ||||||
Type | Vertical,6-Cylinder,Water Cooled and 4-stroke | |||||||
Rated Power(kw) | 88.2 | 91.9 | 95.6 | 88.2 | 91.9 | 95.6 | ||
Rated speed (r/min) | 2300 | |||||||
Fuel | Diesel | |||||||
Tyre | Front Wheel | 6.5-20 | 12.4-24 | |||||
Rear Wheel | 14.9-30/16.9-34 | 16.9-34/18.4-30 | ||||||
Clutch | Dual-stage clutch | |||||||
Steering | Power steering | |||||||
Transmission Type | 16F+8R | |||||||
Suspension Type | Three-point linkage Category II | |||||||
Lifting capacity(at point of 610mm) KN | 22(Common lifter)/32.25(Higher pressure lifter) | |||||||
Lifting capacity(origin)KN | 37(Common lifter)/54.6(Higher pressure lifter) | |||||||
PTO | Type and Rev | Semi-independent Type 540/1000 | ||||||
Spline Size | F35 Rectangle Spline with 6 teeth | |||||||
