TD Series Wheeled Tractor | 75 to 100 HP Lovol Diesel Tractor with Advanced Transmission and Hydraulic System

China Wheel Tractor MX954-D

The TD Series Wheeled Tractor combines robust YTO diesel engines with versatile transmission options including 16F+8R synchronized shuttle and creeper shifts. Its spacious cab with air conditioning and Grammer suspension seat ensures operator comfort. With a lifting capacity up to 4500 kg and a 145L dual fuel tank, it delivers power and endurance for demanding tasks. Advanced features like a high-sealing ACTUANT instrument cluster and 4WD front axle enhance performance and reliability.

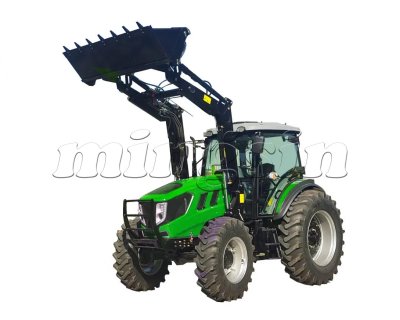

Also belonging to the TD series are Wheel Tractor MX904-D, Wheel Tractor MX1004-D, Wheel Tractor MX1104-D, Wheel Tractor MX1204-D, Wheel Tractor MX1304-D.

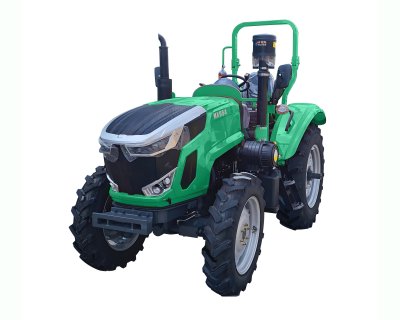

China Wheel Tractor MX954-D

CHINA WHEEL TRACTOR MX954-D

The Mingsin TD Series Wheeled Tractor is engineered for high performance and efficiency in agricultural operations. Powered by YTO 4-cylinder turbocharged diesel engines ranging from 75 to 100 HP, these tractors provide strong torque and reliable power output. The tractors come standard with a 16F+8R synchronized shuttle gearbox, with optional transmission variants to suit various field conditions. Equipped with a dual fuel tank capacity of 145 liters, they support long working hours. The hydraulic system features a combined control lifter with a maximum lifting force of up to 4500 kg, suitable for heavy implements. Operator comfort is prioritized through a fully certified cab with air conditioning, adjustable steering, and a Grammer seat. The tractors also include a wet disc brake system, differential lock, and multiple PTO speed options to maximize versatility.

Features

High-Efficiency Transmission: Mechanical shuttle shift with 16+8 gear options for seamless speed transitions1.

Robust Engine: 75–90 HP power range optimized for fuel efficiency and performance1.

Ergonomic Design: Suspended pedals, flat-floor cabin, and adjustable operator interface for reduced fatigue1.

Extended Operation: 145L fuel tank and low-maintenance components for prolonged fieldwork1.

Safety Compliance: Meets EC, EPA, and GOST certifications; enhanced braking and fire-resistant cabin materials13.

Customization: Optional stepless speed control, widened tires, and hydraulic system upgrades

YTO 4-cylinder turbocharged diesel engine with power range 75-100 HP

Multiple transmission options: 16F+8R synchronized shuttle (standard), 8F+8R shuttle, 16F+8R creeper shift (optional)

Dual fuel tanks with 145L capacity for extended operation

Powerful hydraulic lifting system with max lift up to 4500 kg

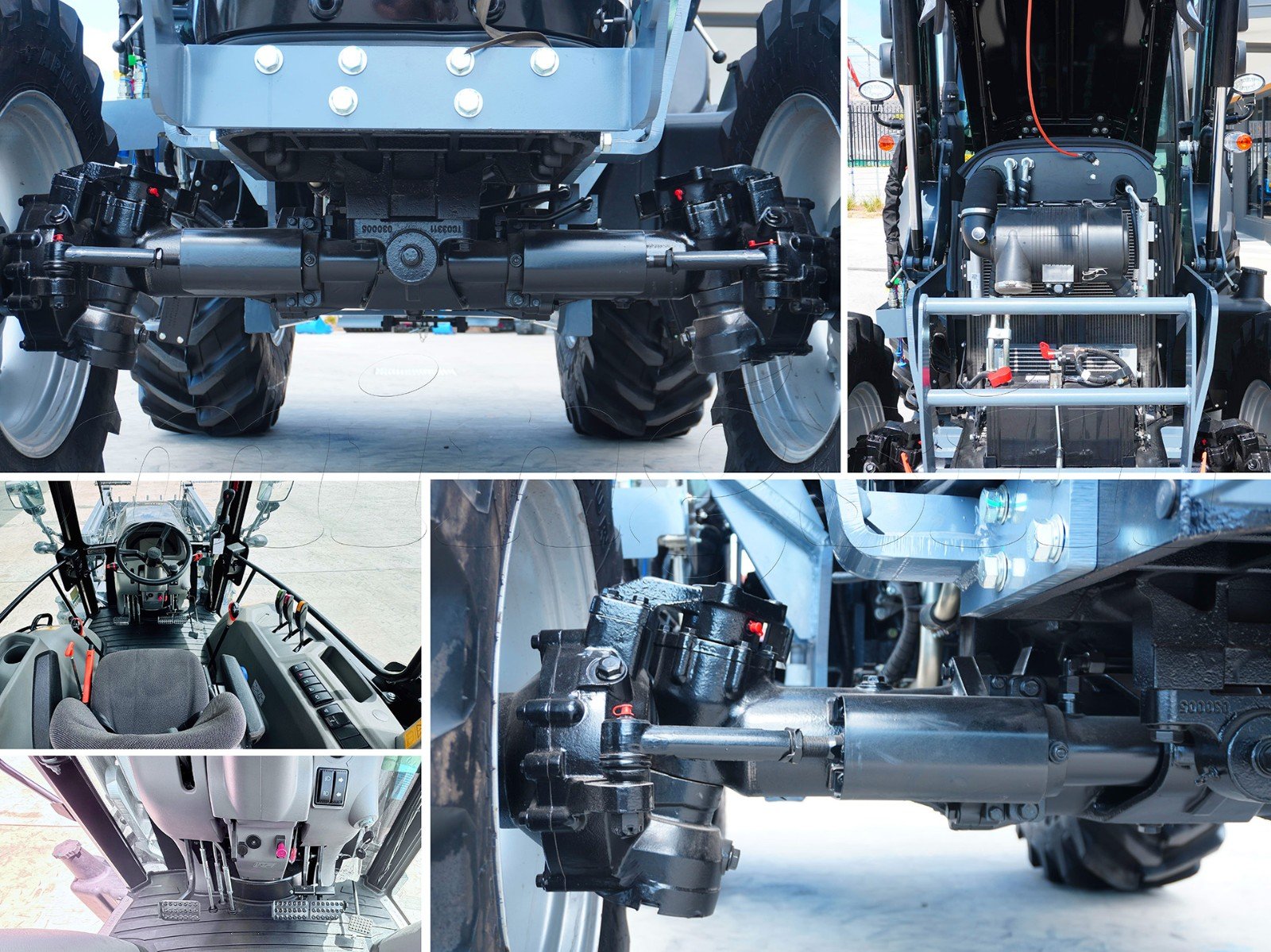

Standard 4WD front axle with 30° steering angle for excellent maneuverability

Wet disc brakes with independent hand parking brake

Air-conditioned cab with Grammer suspension seat and adjustable steering wheel

High sealing ACTUANT instrument cluster with multi-information display

PTO speeds: 540/1000 rpm standard, optional 540/760 or 760/1000 rpm

Optional air trailer brake system and multiple tire size configurations

Technical Specifications

Model		Unit	MX754-D	MX824-D	MX904-D	MX954-D	MX1004-D
Engine			YTO ENGINE	YTO ENGINE	YTO ENGINE	YTO ENGINE	YTO ENGINE
Rated Engine Power ISO TR14396-ECE R120		hp/kW	75/55.1	82/60.3	90/66.2	95/69.9	100/73.5
Type			4 cylinders diesel
Rated Engine Speed		rpm	2200	2200	2200	2200	2200
Max. Torque ISO TR14396		Nm	>263	>288	>350	>360	>380
Rated PTO Power		kW	46.7	51.3	56.3	59.5	62.5
Displacement		ltr	4	4	4	4	4
Fuel Tank Capacity		ltr	145
Transmission
Dry Dual Clutch (Ceramic disk)		in.	12	12	12	12	12
8F+4R Collar Shift			○	○	○	○	○
8F+8R Shuttle Shift			○	○	○	○	○
16F+8R Shuttle shift			●	●	●	●	●
16F+8R Creeper Shift			○	○	○	○	○
16F+8R Synchro Shift			○	○	○	○	○
Speed Range		km/h	8F+4R Collar Shift： Forward（2.2~33.3）/ Reverse（3.0-10.3）； 8F+8R Shuttle Shift： Forward（0.2~33.3）/ Reverse（2.2-33.2）； 16F+8R Shuttle shift： Forward（1.5~32.2）/ Reverse（2.3-33.2）； 16F+8R Creeper Shift: Forward（0.4~33.3）/ Reverse（0.6-10.3）； 16F+8R Synchro Shift: Forward（1.7~33.3）/ Reverse（2.4-21.4）。
Differential Lock			●	●	●	●	●
Power Take-Off 540/1000 rpm			●	●	●	●	●
Power Take-Off 760/1000 rpm			○	○	○	○	○
Power Take-Off 540/760 rpm			○	○	○	○	○
Brakes
Type			Wet disc, Static hydraulic control
Parking Brake			Independent Hand Brake
Air Trailer Brake			○	○	○	○	○
Front Axle
4WD Front Axle			●	●	●	●	●
2WD Front Axle			○	○	○	○	○
Steering Angle		°	30	30	30	30	30
Turning Radius Without Brake		m	4WD：4.2±0.3，2WD:4.9±0.3
Turning Radius With One Side Brake		m	4WD：3.6±0.2，2WD:4.0±0.2
Hydraulic Power Lift
Type			Combined Control on Force and Position, Floating Control

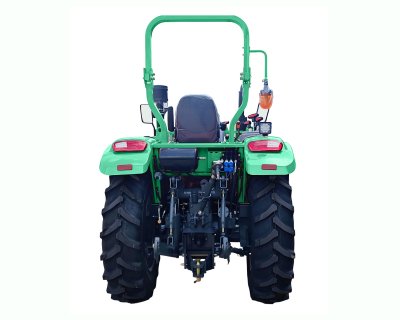

Cat. 2 Three Point Hitch			●	●	●	●	●
Hydraulic Flow		l/min	33/41(powerful lifter)
Lift Capacity at Lift Point		kg	Semi-separated：≥2500 Separated：≥4500
Lift Capacity at 610mm behind Hitch Point		kg	Semi-separated：≥1500 Separated：≥2000
No. of Remote Valves			2	2	2	2	2
Cab and Driving Seat
ROPS			●	●	●	●	●
Full-view Cab			○	○	○	○	○
Air Conditioning			○	○	○	○	○
Suspended Platform			●	●	●	●	●
Tires and Weights
Front Tires	Standard		11.2-24
Front Tires	Optional		12.4-24/13.6-24/12.4R24
Rear Tires	Standard		16.9-34
Rear Tires	Optional		18.4-30/18.4-34/13.6-38/13.6-38(paddy land tires)/18.4R30
Structure Weight（ROPS ）*		kg	3615	3615	3615	3615	3615
Structure Weight（Cab ）*		kg	3915	3915	3915	3915	3915
		Key:	● Standard	○ Optional	* Tractor Dry Mass
