Powerful & Eco-Friendly: High-performance 80HP turbocharged Euro V diesel engine balances power with lower emissions.
Versatile Applications: Equipped with a Category II 3-point hitch and loader compatibility for farming, ranching, and logistics.
Smooth Transitions: 12F+12R shuttle transmission for seamless speed changes (Note: 8F+2R standard spec also mentioned).
All-Terrain Capability: Selectable 2WD/4WD drive train and hydraulic power steering for superior maneuverability.
Operator-Centric: Ergonomic flat-floor cabin design with vibration-damped seating ensures comfort during long hours.
Robust Capacity: Handles demanding tasks with over 2,500 kg lift capacity, ideal for plowing, mowing, and transport.
The products that also use TB chassis are Utility Farm Tractor MX904-B, Utility Farm Tractor MX1004-B.

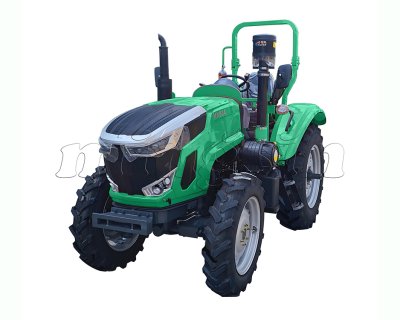

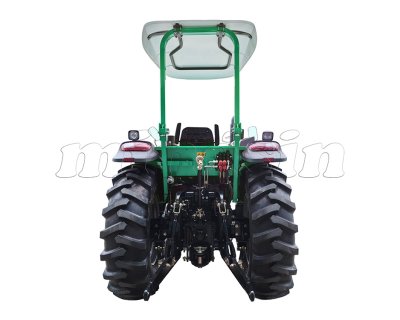

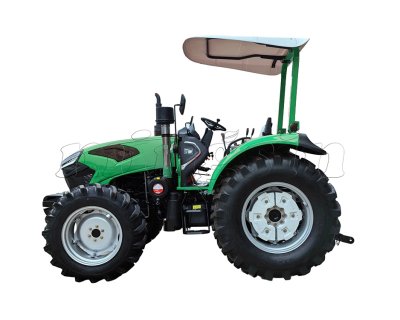

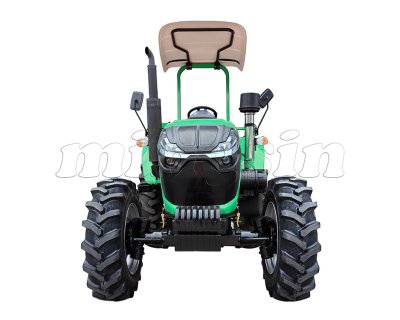

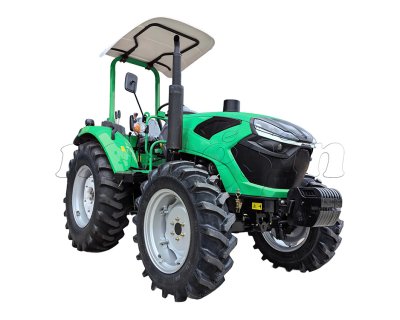

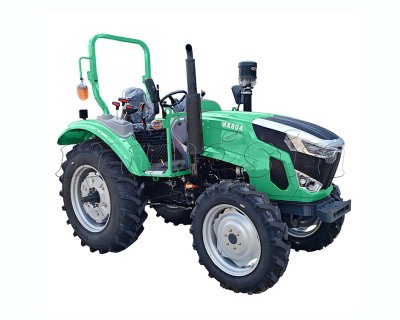

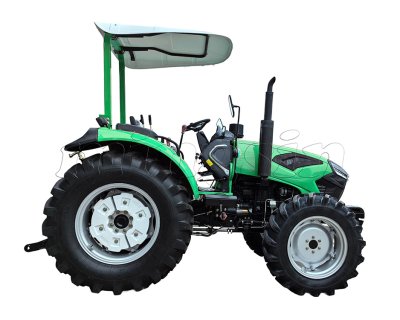

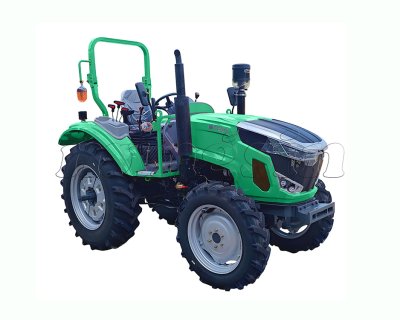

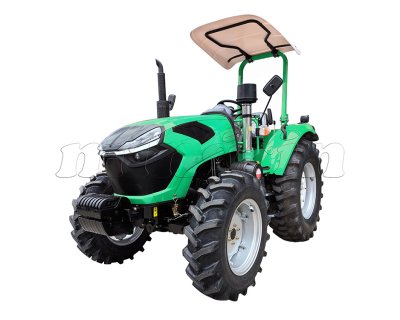

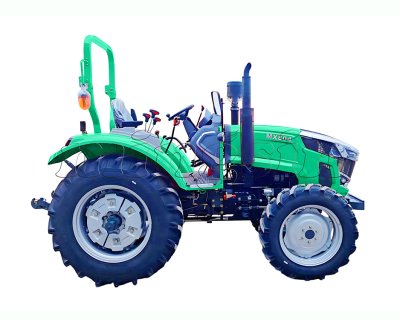

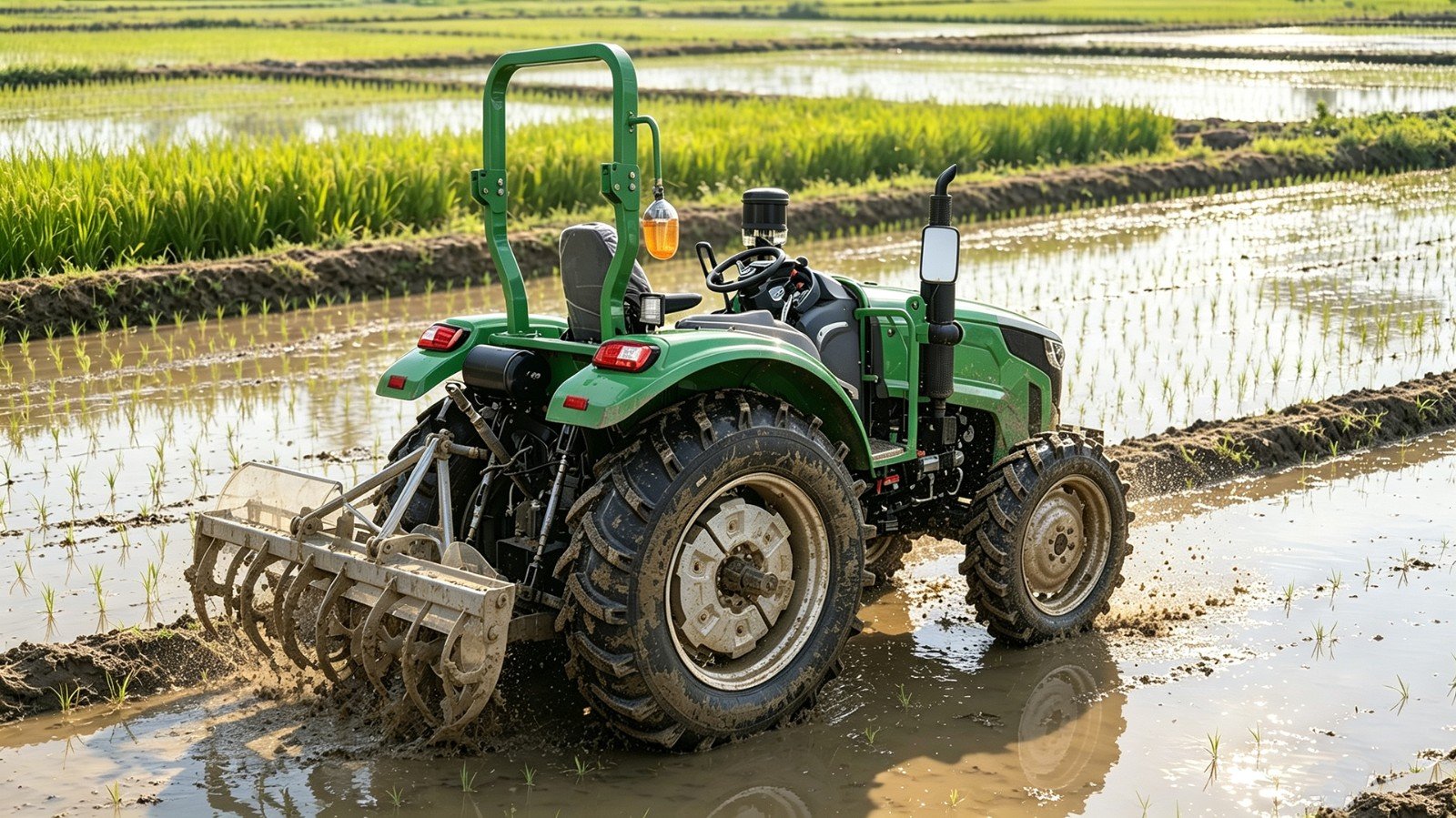

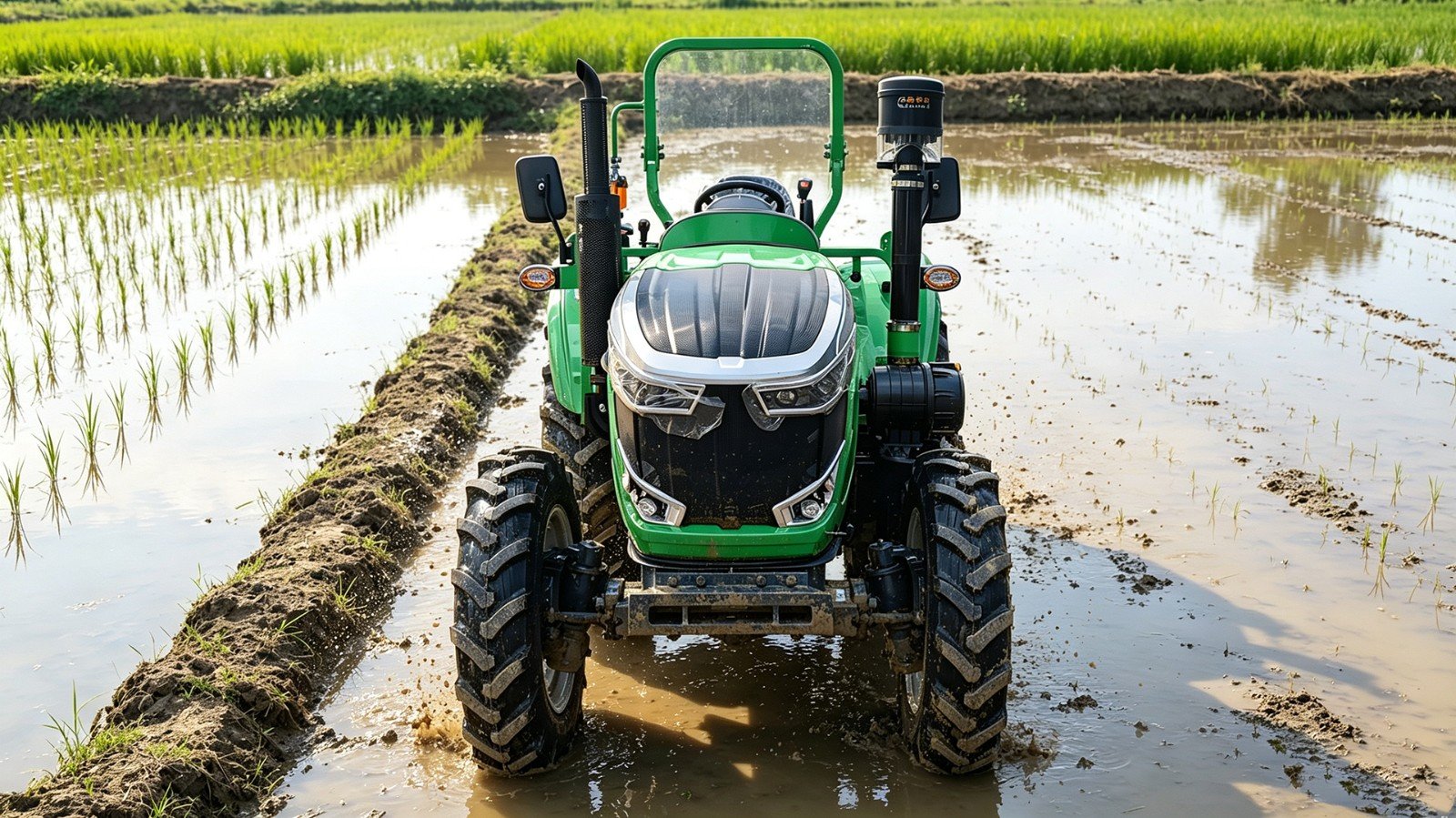

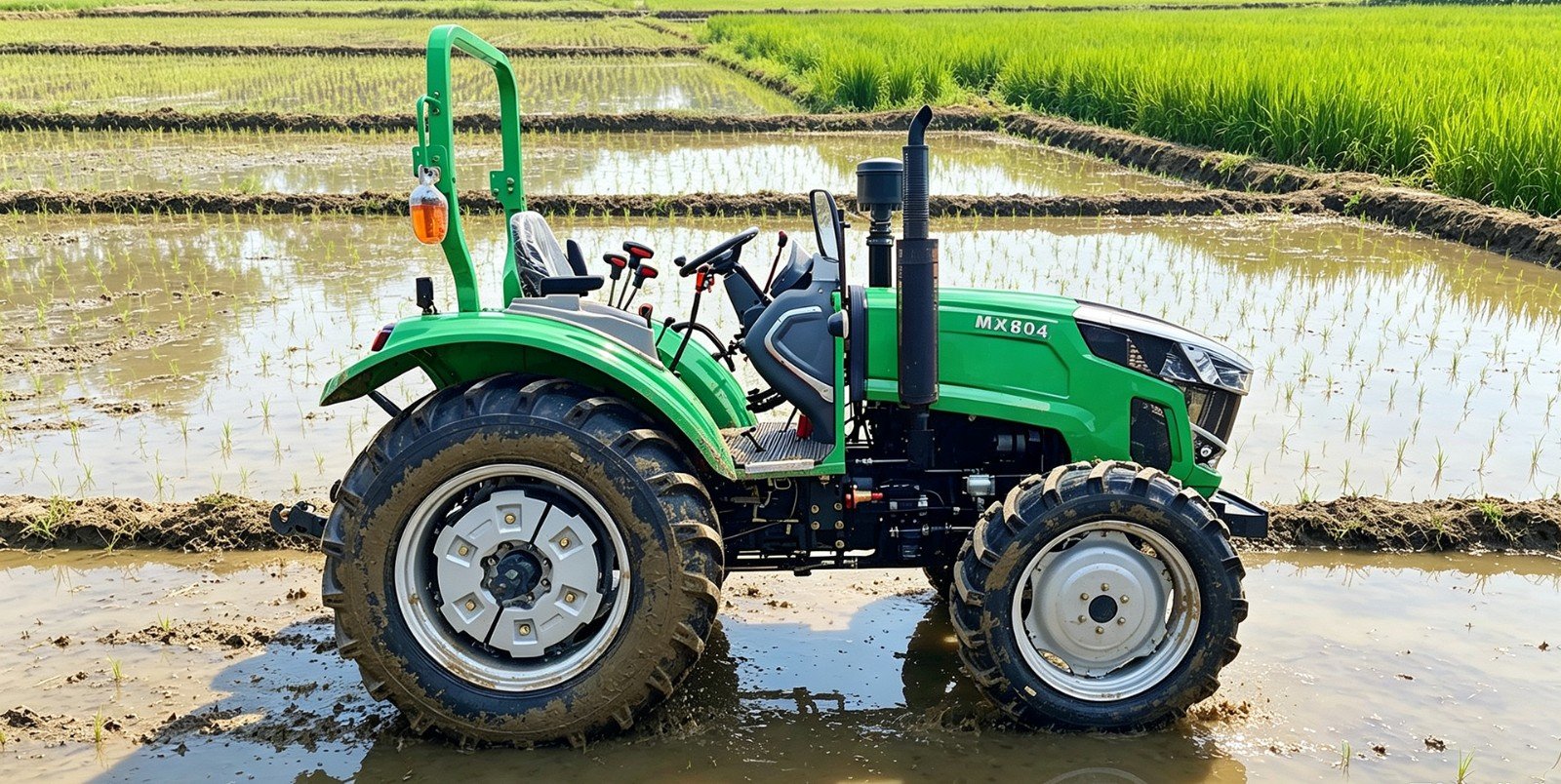

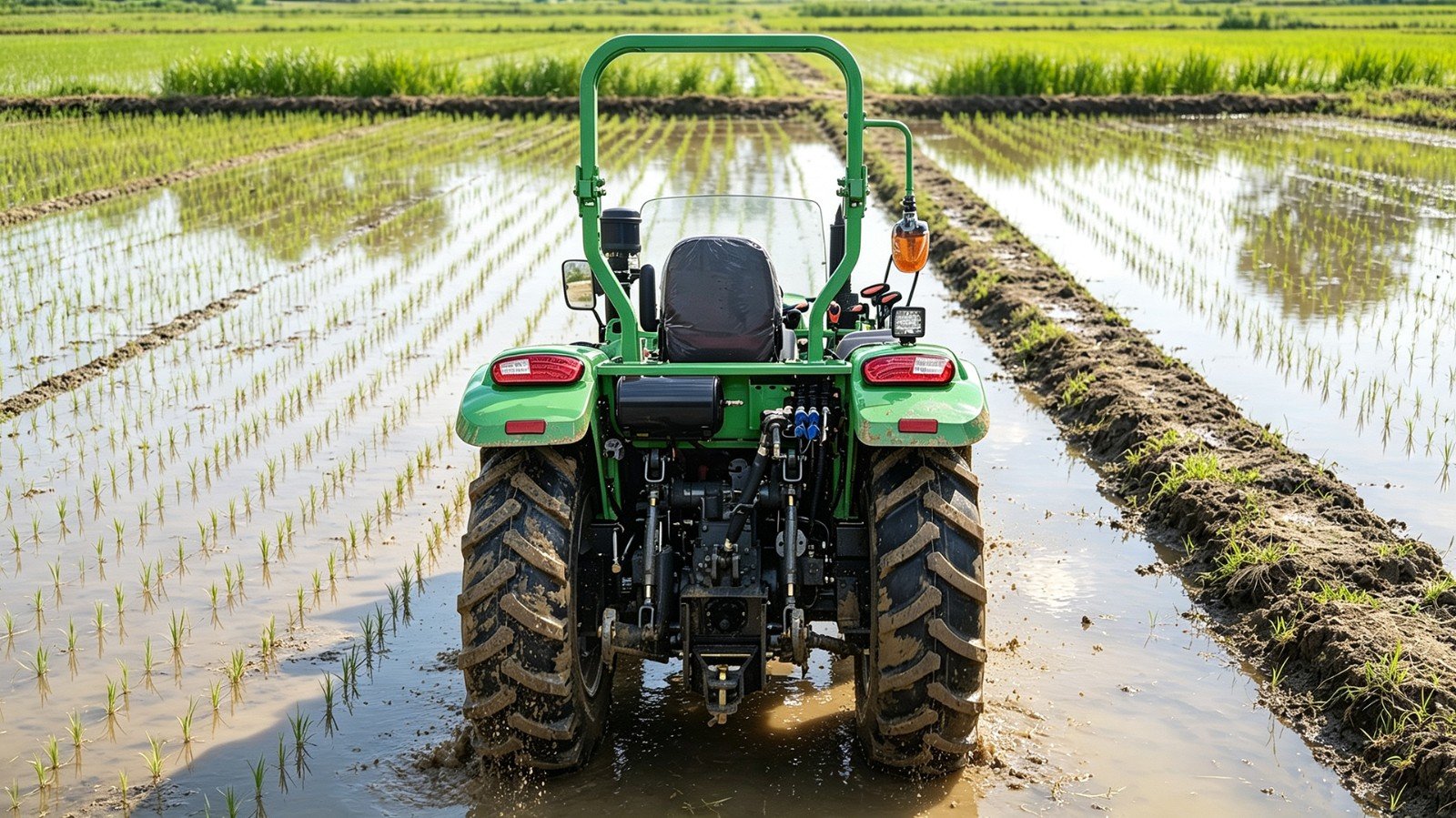

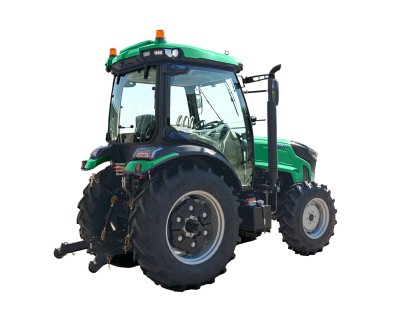

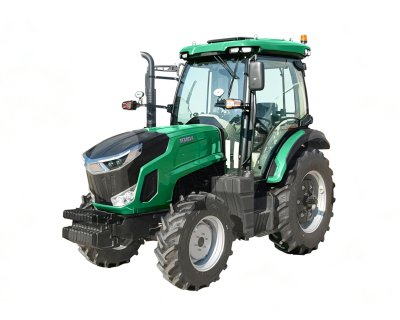

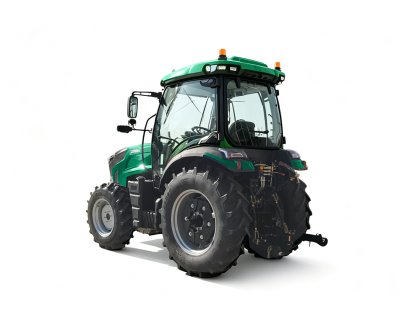

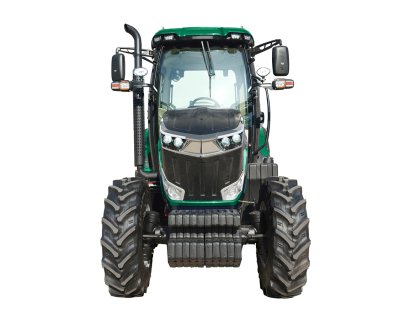

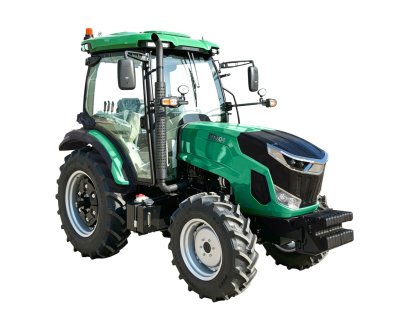

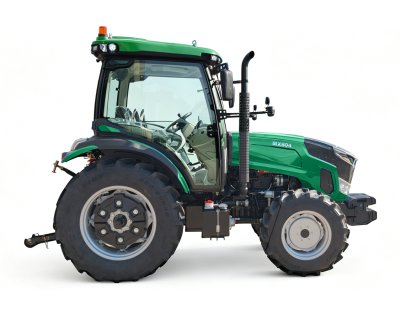

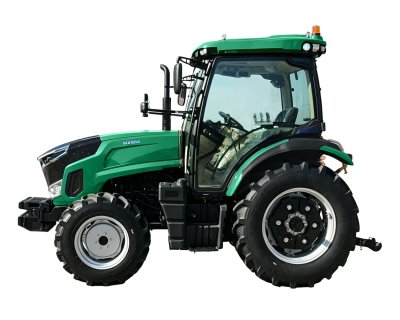

Mingsin MX804-B Utility Tractor
A high-performance Euro V-compliant agricultural tractor powered by a turbocharged 80HP diesel engine, designed for versatility across farming, ranching, and heavy-duty logistics. Its 12F+12R shuttle transmission enables seamless speed transitions, while the 2WD/4WD drive train and hydraulic steering system ensure adaptability to diverse terrains.
Key features include:
l Enhanced Productivity – Equipped with a Category II 3-point hitch for implement versatility, loader compatibility, and customized tire configurations (e.g., 9.5-24/14.9-30).
l Operator-Centric Design – Flat-floor cabin layout with ergonomic controls and vibration-damped seating for extended operational comfort.
l Emission-Efficient Performance – Euro V engine technology balances robust turbocharged power with reduced environmental impact.
l Task-Optimized Capabilities – Ideal for plowing, mowing, material transport, and livestock operations supported by a 2,500+ kg lift capacity.
l Engine: Equipped with a 4-cylinder, water-cooled, 4-stroke diesel engine (Model 4100) delivering 58.8 kW at 2400 rpm.
l Transmission: Offers 8 forward and 2 reverse gears, with an optional creeper shift for enhanced control.
l Clutch: Dual-stage clutch for smooth operation.
l Steering: Hydraulic power steering ensures easy maneuverability.
l PTO: Semi-independent PTO with speeds of 540/1000 rpm, featuring a F35 rectangle spline with 6 teeth.

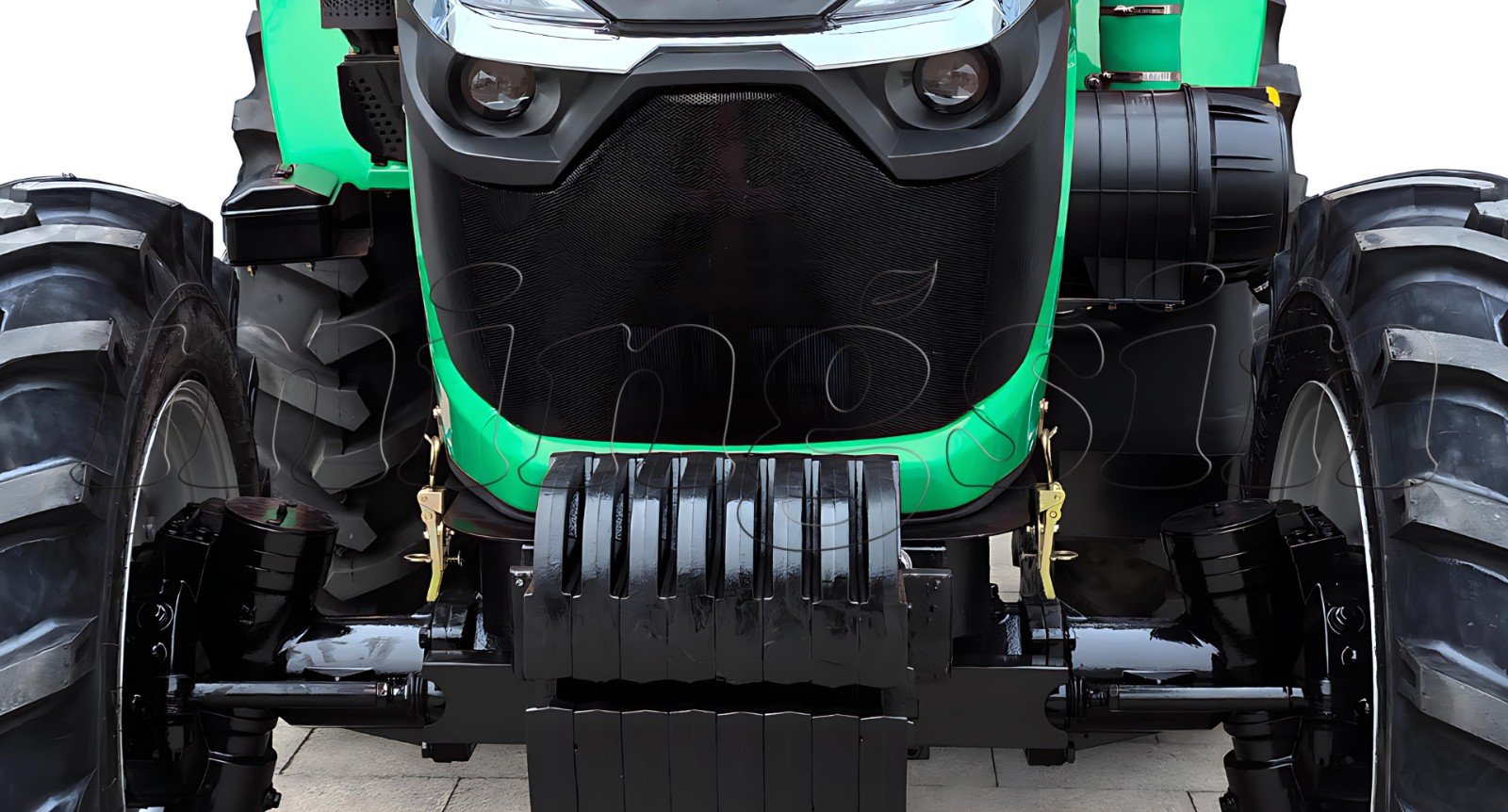

l Dimensions: Measures 4090 mm in length (including front ballast), 1900 mm in width, and 2690 mm in height (to the exhaust vent).
l Weight and Traction: Structural weight is 2940 kg, with a rated traction force of 1520 kg.

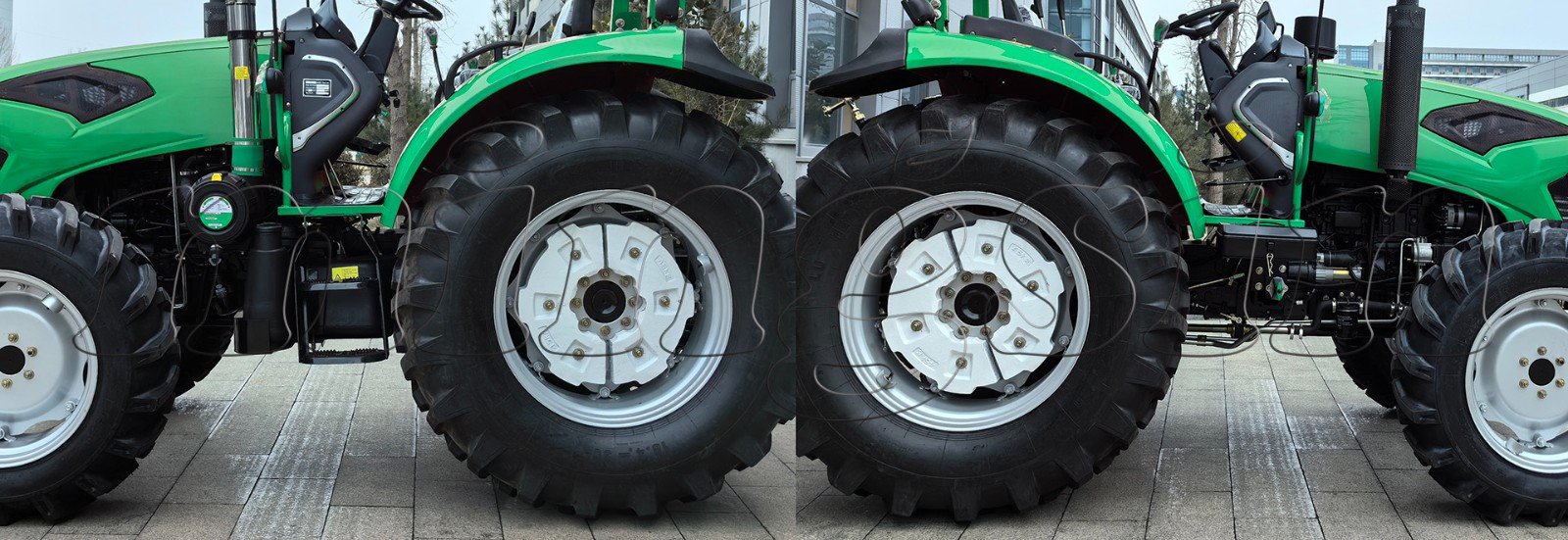

l Tires: Front tires are 8.3-24, and rear tires are 16.9-30.

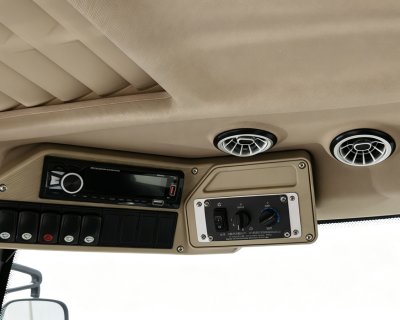

l Additional Features: Includes a 3-point linkage suspension, oil-immersed brakes, adjustable wheel tread, and optional features such as a cab with air conditioning, air brake for trailers, and front-end loader compatibility.
Engineered for optimal stability, operator-centric ergonomics, and fuel-efficient performance in demanding agricultural workflows.
Technical Specifications:
Model No. | MX804-B |
General Data | |
Tractor Power | 80hp |
Chassis Type | TB chassis |
Drive method | 4WD |
Overall dimension（L*W*H）mm | 4050×1795×2630 |
Wheel tread (mm) | front 1050,1150, 1250; rear1000~1300 |
Wheel base (mm) | 2010 |
Min Ground clearance (mm) | 390 |
Min service weight (kg) | 2825 |
Engine | |
Diesel engine | Laidong 4100. China Emission Stage II |
Type | inline, direct injection, water cooled |
Intake method | turbocharged |
Engine power | 58.8kW/2400rpm |
Fuel | diesel |
Hydraulic system/working Part | |

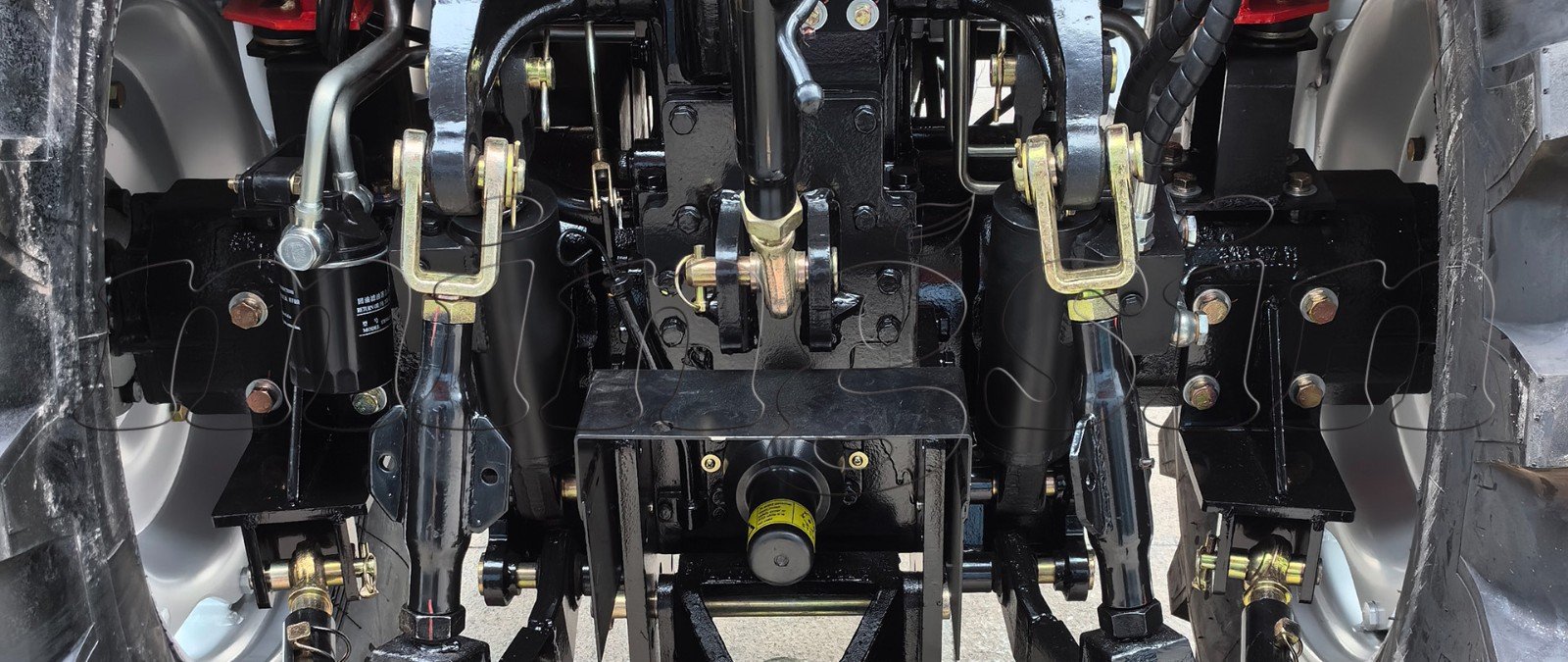

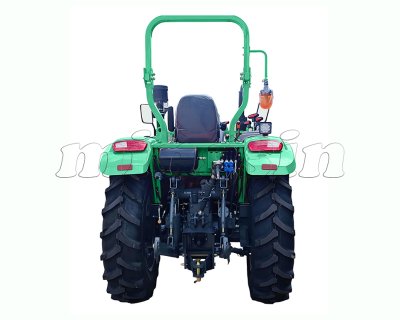

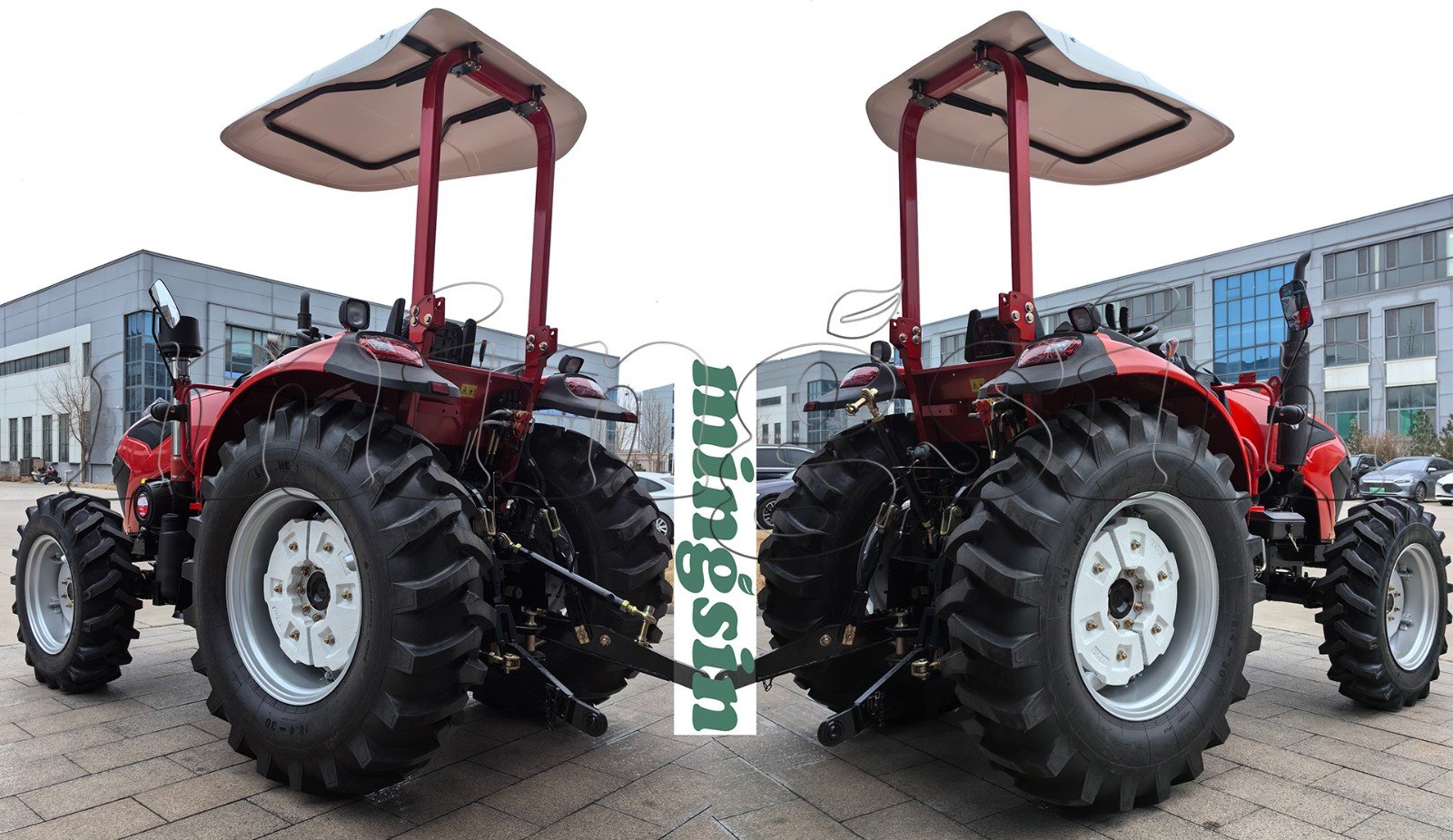

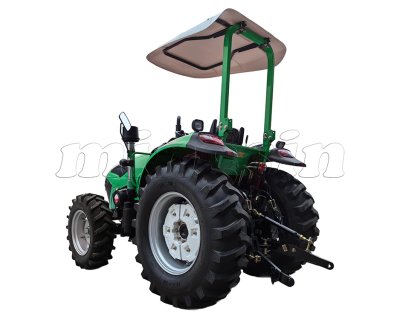

Suspension type | three point linkage, CAT II |
Hydraulic output | two group of hydraulic; Options: 3 groups |
Max traction power | ≥18kN |
Max lifting power | ≥15kN |
Rear PTO speed | 540/1000rpm |
PTO splines | 6 |
Travelling sysem | |
Steering | hydraulic steering |
Transmission | gearshift 12F+12R |
Clutch | dry type, dual stage |
Brake | oil-immersed |
Tire size | Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30 |
Theoretical speed | Forward: 2.46-32.73km/h |
