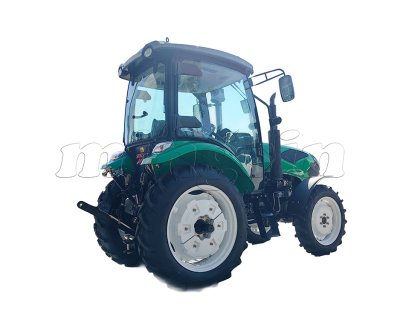

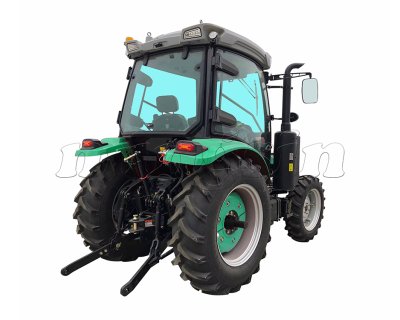

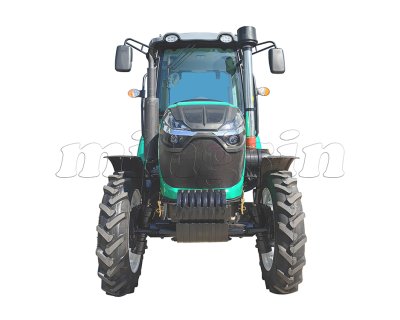

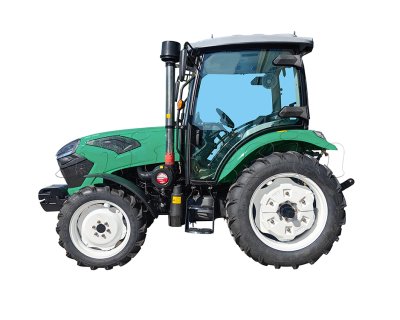

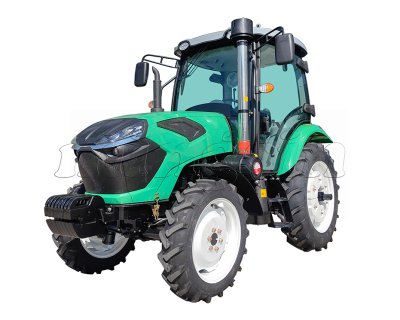

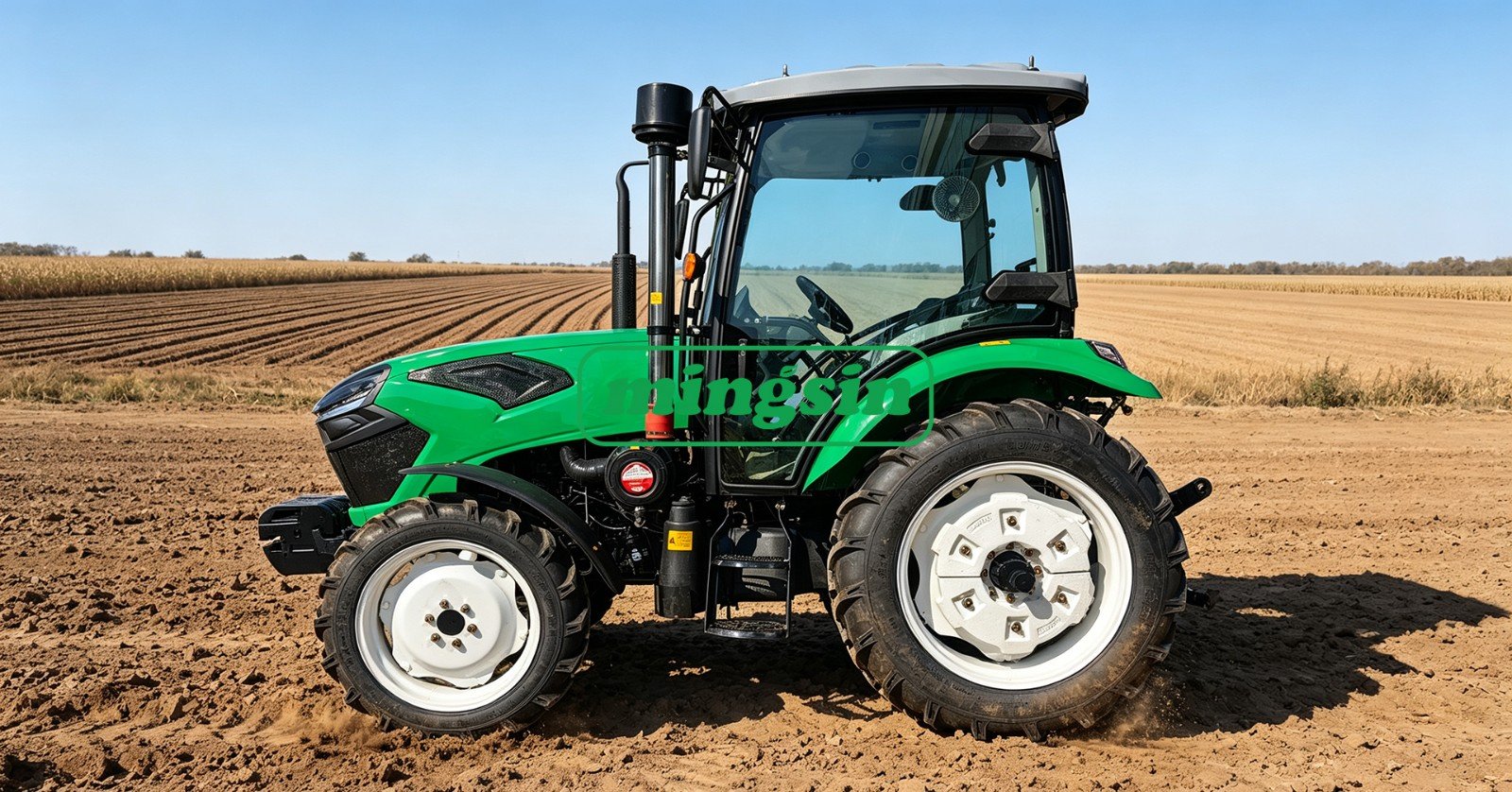

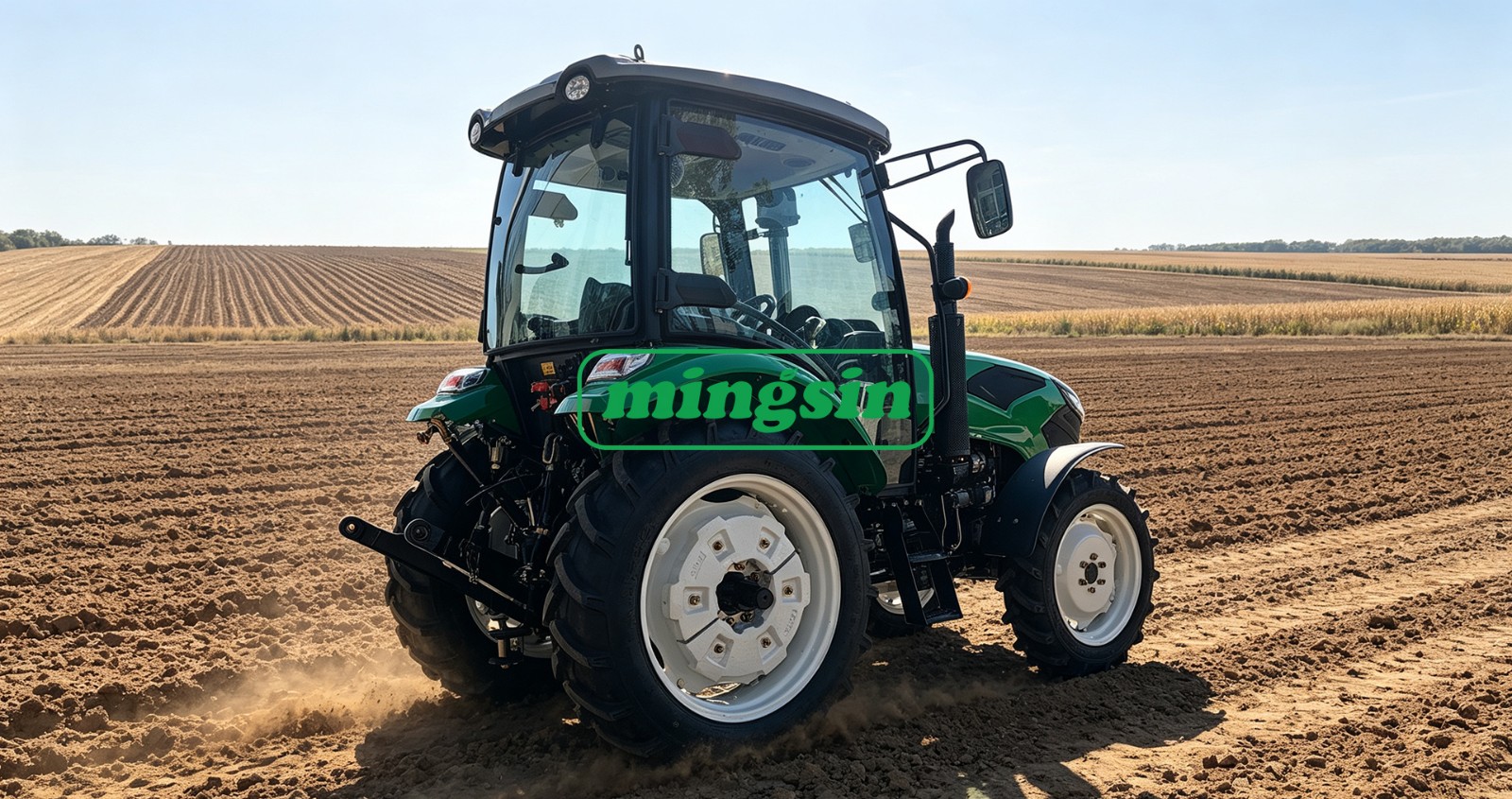

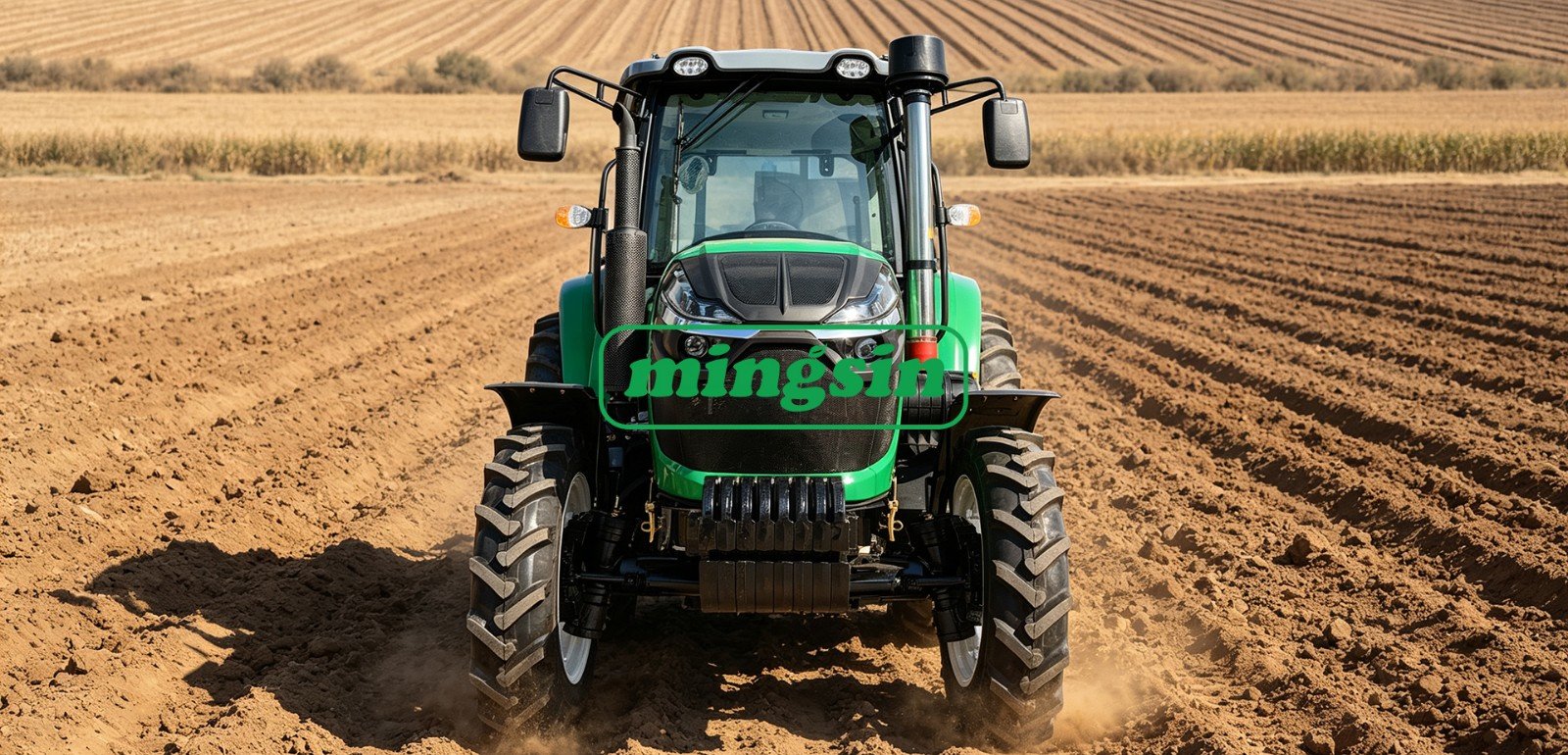

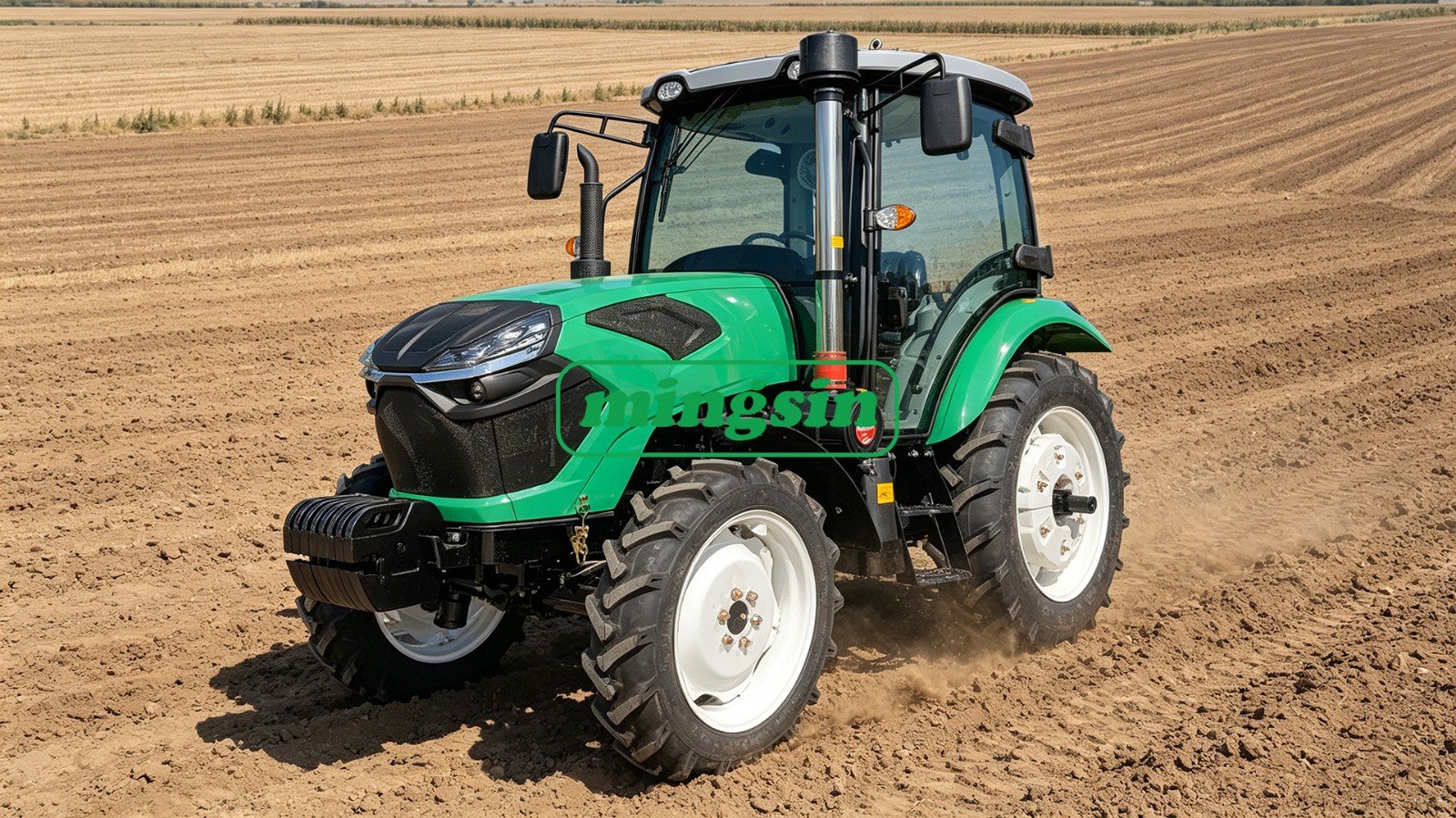

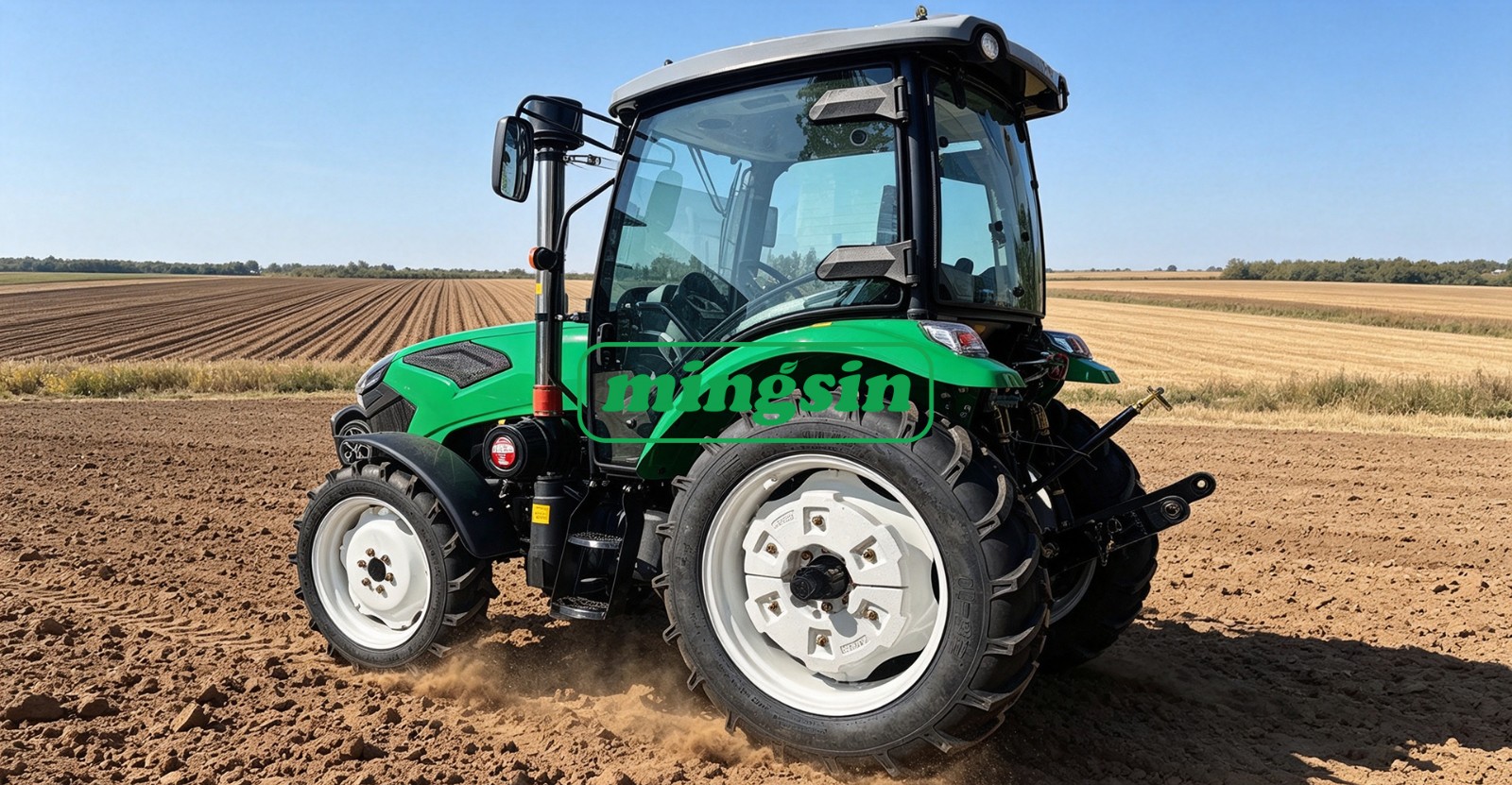

Powerful Engine: Equipped with a 100hp Yangdong 4110 turbocharged diesel engine, ensuring efficient performance for demanding agricultural tasks.
Transmission: 12 forward and 12 reverse gears with shuttle shift, providing flexibility and ease in maneuvering.
Drive Options: Available in both 2WD and 4WD configurations to suit different terrain requirements.
Versatile Applications: Ideal for plowing, seeding, mowing, loading, baling, transporting, and various other farm operations.
Hydraulic System: Features a Category II three-point linkage with a maximum lifting capacity of ≥16kN, suitable for a wide range of implements.
PTO Specifications: Dual-speed rear PTO (540/1000 rpm) with 6 splines, compatible with various attachments.
Operator Comfort: Spacious flat floor design with easily accessible controls, enhancing comfort during extended working hours.
Tire Options: Multiple tire configurations available, including 9.5-24/14.9-30, 8.3-24/16.9-30, and 12.4-24/18.4-30, to match specific field conditions.
Durable Build: Constructed with a sturdy TB chassis, ensuring longevity and reliability in various working environments.
Products that also use TB chassis are Utility Tractor MX754-B,Utility Tractor MX804-B,Utility Farm Tractor MX904-B.
Powerful Engine: Equipped with a 100hp Yangdong 4110 turbocharged diesel engine, ensuring efficient performance for demanding agricultural tasks.
Transmission: 12 forward and 12 reverse gears with shuttle shift, providing flexibility and ease in maneuvering.
Drive Options: Available in both 2WD and 4WD configurations to suit different terrain requirements.
Versatile Applications: Ideal for plowing, seeding, mowing, loading, baling, transporting, and various other farm operations.
Hydraulic System: Features a Category II three-point linkage with a maximum lifting capacity of ≥16kN, suitable for a wide range of implements.
PTO Specifications: Dual-speed rear PTO (540/1000 rpm) with 6 splines, compatible with various attachments.
Operator Comfort: Spacious flat floor design with easily accessible controls, enhancing comfort during extended working hours.
Tire Options: Multiple tire configurations available, including 9.5-24/14.9-30, 8.3-24/16.9-30, and 12.4-24/18.4-30, to match specific field conditions.
Durable Build: Constructed with a sturdy TB chassis, ensuring longevity and reliability in various working environments.
Model NO. | MX1004-B |
General Data | |
Tractor Power | 100hp |
Chassis Type | TB chassis |
Drive method | 4WD |
Overall dimension（L*W*H）mm | 4050×1830×2660 |
Wheel tread (mm) | front 1050,1150, 1250; rear1000~1300 |
Wheel base (mm) | 2100 |
Min Ground clearance (mm) | 340 |
Min service weight (kgs) | 2825 |
Engine | |
Diesel engine | Yangdong 4110. China Emission Stage II, 4.087L |
Type | inline, direct injection, water cooled |
Intake method | turbocharged |
Engine power | 66.15kW/2400rpm |
Fuel | diesel |
Hydraulic system/working Part | |
Suspension type | three point linkage, CAT II |
Hydraulic output | dry type, dual stage |
Max traction power | ≥24.5kN |
Max lifting power | ≥16kN |
Rear PTO speed | 540/1000rpm |
PTO splines | 6 |
Travelling system | |
Steering | hydraulic steering |
Transmission | gearshift 12F+12R |
Clutch | dry type, dual stage |
Brake | oil-immersed |
Tire size | Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30 |
Theoretical speed | Forward: 2.46-32.73km/h |
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Designed to work seamlessly with a variety of light farmland cultivation equipment and tools, including front loaders , backhoes , trailers, hay mowers, rakes, sprayers, and rotary cultivators.
MX354-E Tractor is a versatile 35 HP compact tractor designed for farming, horticulture, greenhouse planting, and lawn maintenance. Equipped with a Laidong 4L22 Euro IIIA-compliant engine, 8F+8R synchronizer shuttle shift, and optional hydraulic outputs, it ensures efficient and comfortable operations. Features include OECD/EC certifications, 540/720/1000 PTO speeds, and a Category I suspension. Ideal for dry/paddy fields, gardening, and multi-functional agricultural tasks.
MX504-E Dapeng King (King in greenhouse) Tractor is specially designed to meet the needs of greenhouse and orchard environments, while also accommodating general fieldwork requirements. It is a multi-purpose wheeled gardening tractor powered by a vertical four-cylinder diesel engine, combining compact structure, strong power, and flexible operation.

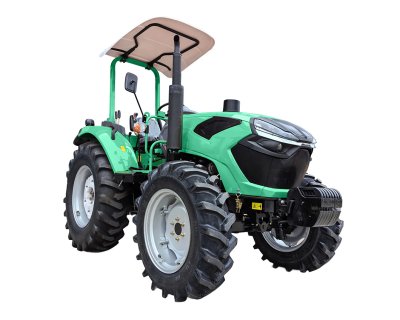

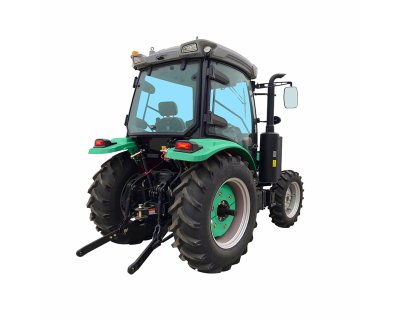

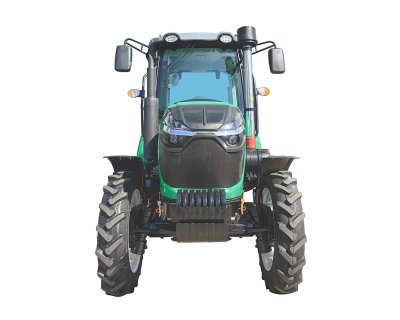

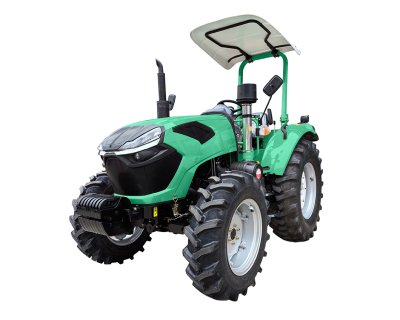

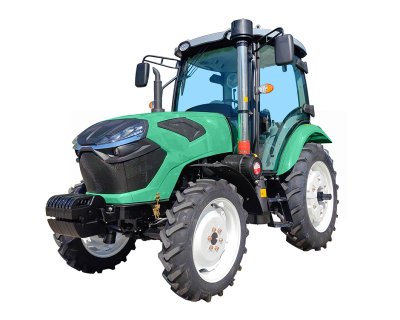

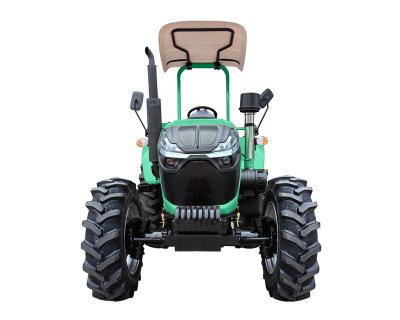

MX804-E Tractor is a versatile and powerful machine that combines robustness, reliability, and efficiency. It is designed for a wide range of farming applications, including tillage, planting, harvesting, and transportation. With its advanced features and compact design, this tractor is an excellent choice for farmers who need a versatile and dependable machine to tackle their farming challenges.
