ü YTO Turbocharged Engine: 4-cylinder in-line configuration (75–130 HP range) with turbocharging technology for reliable power and fuel efficiency
ü Heavy-Duty Torque: Exceptional torque reserve for plowing, tilling, harvesting, and hauling (up to 4,500 kg lifting capacity with optional press lifter)
ü Transmission Options:
Standard: 16F+8R synchronized gearbox (smooth, energy-efficient shifting)
Optional: 16F+8R creeper gears for precision low-speed tasks

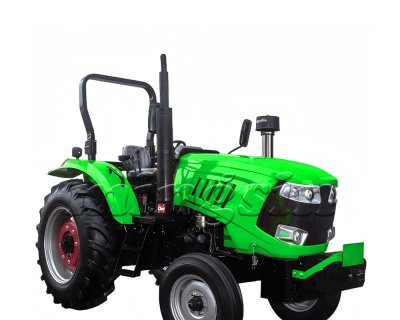

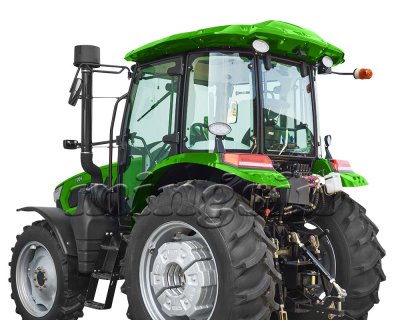

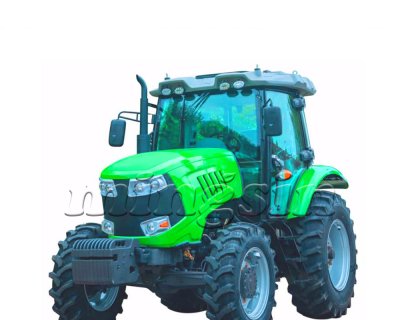

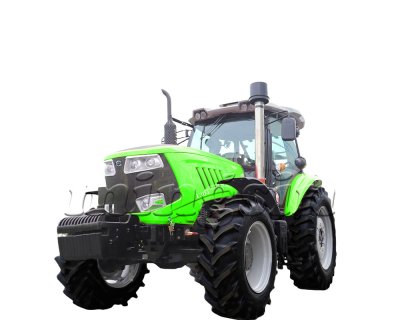

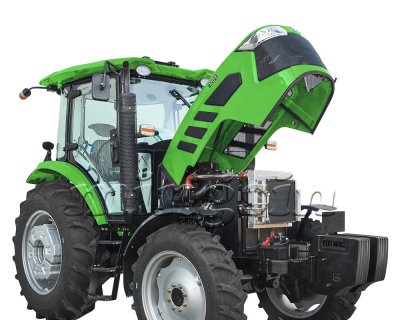

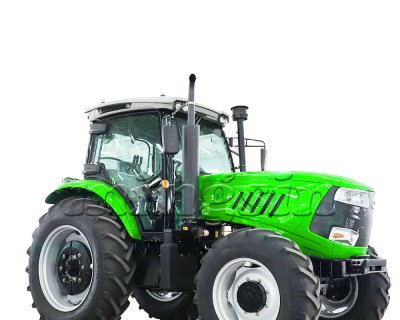

Mingsin TD1204 Wheeled Tractor
A flagship model in China’s globally recognized agricultural machinery lineup, the Mingsin TD1204 is engineered for heavy-duty fieldwork and versatile farm operations. Combining power, durability, and operator-centric design, it redefines efficiency for medium-to-large-scale farming enterprises.
ü Safety Compliance: Standard ROPS (Roll-Over Protective Structure) or OECD/EC-certified cabin
ü 3rd-Gen European Cabin: Sleek, fully enclosed design with climate control, adjustable steering, and a Grammer ergonomic seat for fatigue-free operation
ü Advanced Dashboard: U.S.-made ACTUANT combination instrument panel with high sealing performance and multi-functional digital display
ü YTO Turbocharged Engine: 4-cylinder in-line configuration (75–130 HP range) with turbocharging technology for reliable power and fuel efficiency
ü Heavy-Duty Torque: Exceptional torque reserve for plowing, tilling, harvesting, and hauling (up to 4,500 kg lifting capacity with optional press lifter)
ü Transmission Options:
Standard: 16F+8R synchronized gearbox (smooth, energy-efficient shifting)
Optional: 16F+8R creeper gears for precision low-speed tasks
ü Dual Fuel Tanks: 145L combined capacity for extended uninterrupted operation
ü Multi-Task Adaptability: Compatible with planting, inter-tillage management, sowing, harvesting, and logistics
ü Upgrade-Ready Design: Modular architecture for easy integration of attachments and future tech
ü Powertrain: YTO engine with turbocharging system for consistent output under load
ü Hydraulic System: Optional independent adjustable lifter with 4,500 kg max lift capacity
ü Compliance: Meets OECD/EC safety and emissions standards for global deployment
Why Choose the TD1204?
Proven Durability: Built for 24/7 operations in harsh agricultural environments
Operator Comfort: Climate-controlled cabin and intuitive controls reduce fatigue
Global Standards: Combines Chinese engineering excellence with internationally certified components
Versatility: Seamlessly transitions between field tasks and transport duties
Model | TD1200 | TD1250 | TD1300 | TD1204 | TD1254 | TD1304 | ||
Type | 2WD Wheeled Type | 4WD Wheeled Type | ||||||
Dimensions of Tractor(mm) | Length (to front ballast) | 2WD:4260 4WD:4630 | ||||||
Width | 2050 | |||||||
Height (to the exhaust vent) | 2510 | |||||||
Wheelbase | 2200 | |||||||
Tread | Front Wheel | 2WD: 1385~1685 (Usual 1485) 4WD:1610 | ||||||
Rear Wheel | 1620~2020(Usual 1620) | |||||||
Min.Ground Clearance | 430 | 405 | ||||||
Structure weight (kg) | 3250 | 3540 | ||||||
Ballast weight | Front ballast | 250 | ||||||
Rear ballast | 170 , 340 , 510 (optional) | |||||||
Engine | Model | LR6B5-23 | ||||||
Type | Vertical,6-Cylinder,Water Cooled and 4-stroke | |||||||
Rated Power(kw) | 88.2 | 91.9 | 95.6 | 88.2 | 91.9 | 95.6 | ||
Rated speed (r/min) | 2300 | |||||||
Fuel | Diesel | |||||||
Tyre | Front Wheel | 6.5-20 | 12.4-24 | |||||
Rear Wheel | 14.9-30/16.9-34 | 16.9-34/18.4-30 | ||||||
Clutch | Dual-stage clutch | |||||||
Steering | Power steering | |||||||
Transmission Type | 16F+8R | |||||||
Suspension Type | Three-point linkage Category II | |||||||
Lifting capacity(at point of 610mm) KN | 22(Common lifter)/32.25(Higher pressure lifter) | |||||||
Lifting capacity(origin)KN | 37(Common lifter)/54.6(Higher pressure lifter) | |||||||
PTO | Type and Rev | Semi-independent Type 540/1000 | ||||||
Spline Size | F35 Rectangle Spline with 6 teeth | |||||||
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
The Mingsin 4WD Farm 110HP Tractor is a powerful and reliable agricultural machine designed for the Indonesia market. Featuring a robust 110 horsepower engine, 4-wheel drive system, and advanced technology, this tractor delivers excellent performance and efficiency for various farming tasks. Manufactured by Mingsin, China's leading agricultural equipment brand, it offers durability, operator comfort, and global after-sales support.
The Mingsin TD1004 tractor features a powerful 100 HP YTO E5 diesel engine with a 4-cylinder water-cooled design. Equipped with a 16/8 synchronized gearbox and switchable 4x4 drive, it offers excellent versatility for agricultural tasks. With a lifting capacity of 3400 kg, air conditioning, and a Grammer suspension seat, this new tractor combines power, comfort, and reliability.
The TD Series Wheeled Tractor by Mingsin offers a range of powerful and reliable tractors from 75 HP to 100 HP, equipped with YTO 4-cylinder diesel engines, multiple transmission options, and advanced hydraulic systems. Designed for agricultural and industrial applications, these tractors feature comfortable cabins, strong lifting capacities, and efficient fuel consumption, making them ideal for diverse farming needs.
Mingsin 90 HP TD904 Wheel Tractor – Reliable and efficient agricultural machinery designed for heavy-duty farming and industrial tasks. Features a powerful diesel engine, 4WD capability, ergonomic design, and durable construction. Ideal for plowing, hauling, and landscaping. Customizable configurations available.
