Comprehensive Diagnostic and Maintenance Guide for Tractors: Restore Power and Extend Service Life

Comprehensive Diagnostic and Maintenance Guide for Mingsin Tractors

How to Restore Power, Reduce Failures, and Extend the Service Life of Your Tractor

The tractor is the true workhorse of modern agriculture. When it operates properly, productivity flows smoothly; when it loses power, even the simplest tasks become challenging. Whether it is a Mingsin tractor or another heavy-duty brand, a drop in performance should never be ignored.

The good news is that most power loss issues have clear causes and relatively simple solutions when diagnosed in time. This comprehensive guide is designed to help you identify, diagnose, and prevent the most common problems—saving time, money, and unnecessary downtime.

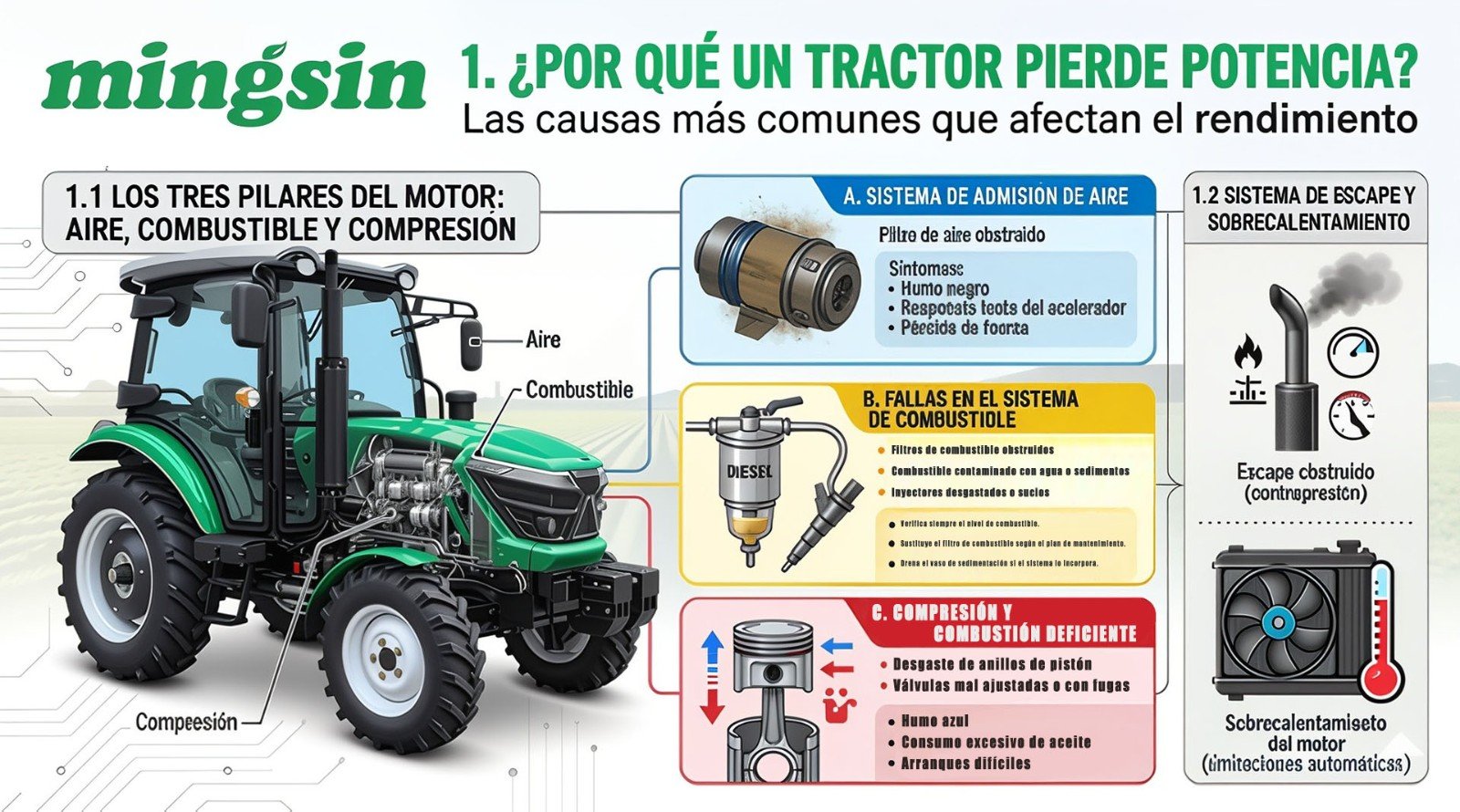

1. Why Does a Tractor Lose Power?

The Most Common Causes Affecting Performance

Power loss can appear in many forms: sluggish acceleration, difficulty pulling implements, abnormal vibrations, or higher-than-normal fuel consumption. In most cases, the root cause lies in one or more of the following key systems.

1.1 The Three Pillars of Engine Performance: Air, Fuel, and Compression

Every engine—especially agricultural diesel engines—relies on a precise balance of these three elements.

A. Air Intake System Problems
An engine is essentially a large air pump. If it cannot “breathe,” it cannot perform.

• Clogged air filter: Very common in dusty field conditions, straw, or soil.

• Typical symptoms: Black smoke, slow throttle response, noticeable power loss.

• Solution: Clean or replace the air filter according to its type (dry or oil-bath). This simple step can restore a significant amount of lost power.

B. Fuel System Failures
Clean fuel delivered in sufficient quantity is essential for efficient combustion.

Common issues include:

• Clogged fuel filters

• Fuel contaminated with water or sediment

• Damaged or leaking fuel lines

• Worn or dirty injectors

Practical recommendations:

• Always check the fuel level.

• Replace fuel filters according to the maintenance schedule.

• Drain the sediment bowl if the system is equipped with one.

• Avoid using old or long-stored diesel fuel.

C. Poor Compression and Combustion
In diesel engines, power output depends directly on proper compression.

• Worn piston rings

• Incorrectly adjusted or leaking valves

• Injectors that fail to atomize fuel correctly

These issues are often accompanied by blue smoke, excessive oil consumption, or hard starting, and usually require more in-depth technical inspection.

1.2 Exhaust System and Overheating Issues

• Restricted exhaust: Soot buildup in the muffler creates back pressure, reducing engine efficiency.

• Engine overheating: A faulty cooling system lowers thermal efficiency and, in modern tractors, may trigger automatic power derating to protect the engine.

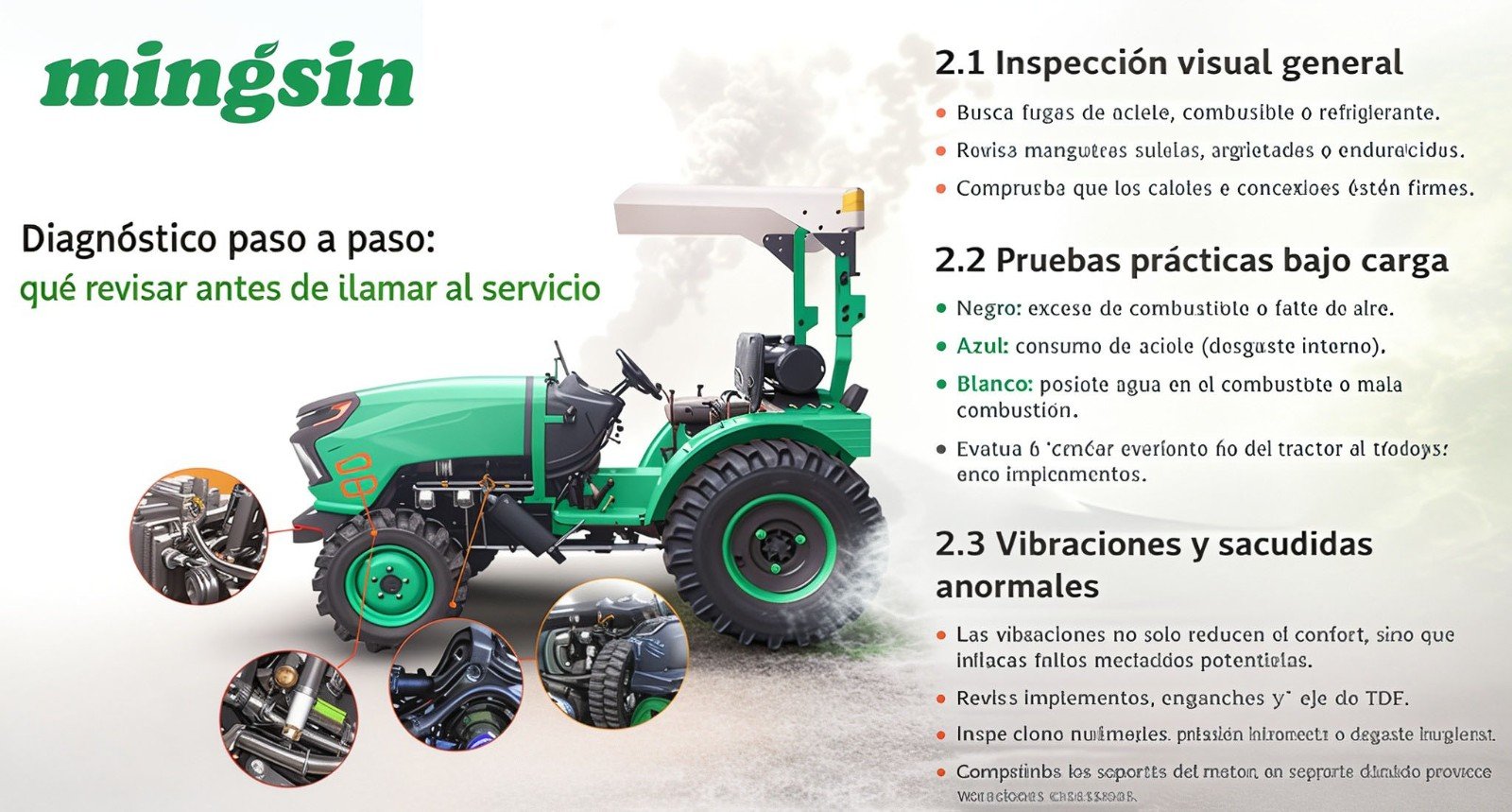

2. Step-by-Step Diagnosis: What to Check Before Calling a Technician

Before assuming a major failure, follow this basic diagnostic procedure:

2.1 General Visual Inspection

• Look for oil, fuel, or coolant leaks.

• Check hoses for looseness, cracks, or hardening.

• Ensure all cables and connections are secure.

2.2 Practical Load Testing

Observe exhaust smoke color:

• Black: Excess fuel or insufficient air.

• Blue: Oil consumption due to internal wear.

• White: Possible water in fuel or poor combustion.

Evaluate tractor behavior when operating implements under load.

2.3 Abnormal Vibrations and Shaking

Vibrations reduce comfort and often signal mechanical problems.

• Check implements, hitch points, and PTO shaft.

• Inspect tires for incorrect pressure or uneven wear.

• Examine engine mounts; damaged mounts cause excessive vibration.

3. Starting Problems and Irregular Operation

A tractor that is hard to start or runs unevenly often has electrical or fuel-related issues.

• Weak battery or corroded terminals

• Faulty glow plugs (diesel engines)

• Air trapped in the fuel system after filter replacement

• Incorrectly positioned fuel shut-off cable or lever

For diesel engines, following the correct bleeding procedure is essential to remove air bubbles from the fuel system.

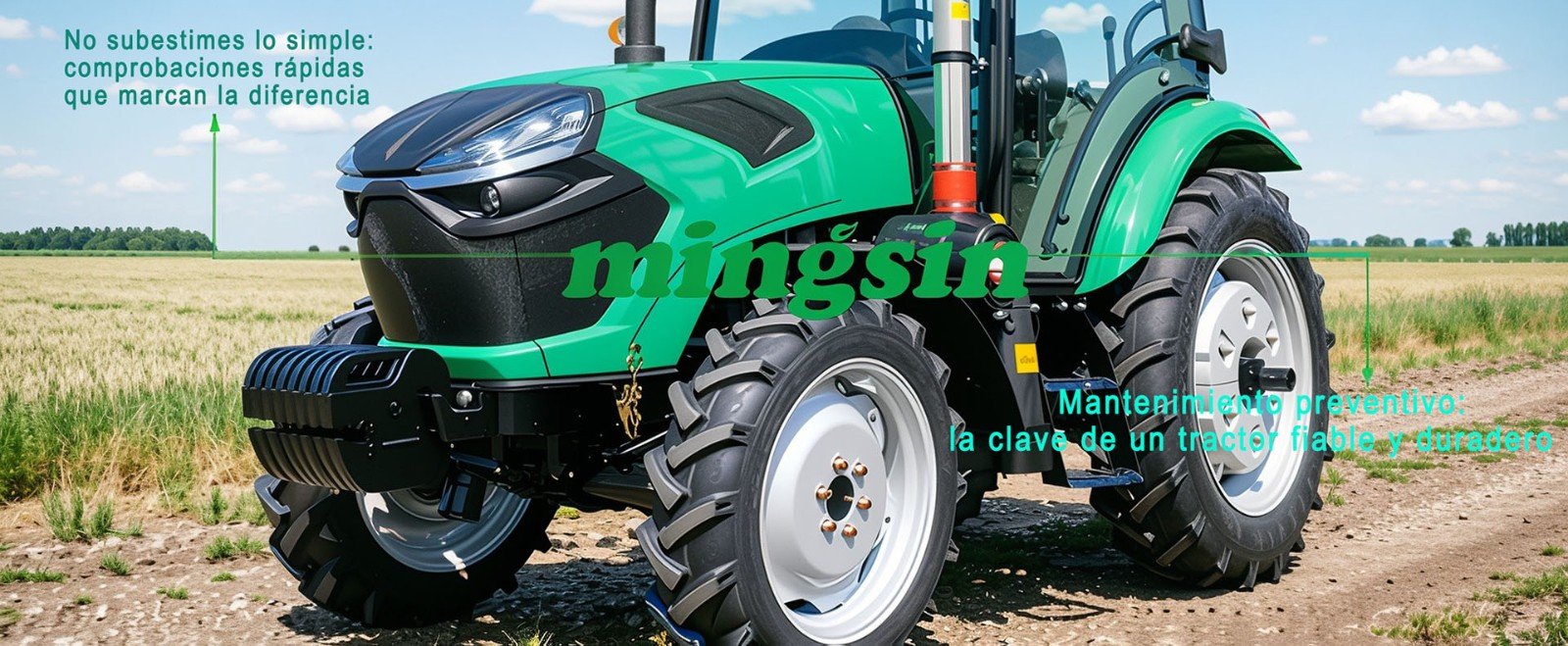

4. Do Not Underestimate the Simple Things: Quick Checks That Make a Difference

Many “power loss” complaints have surprisingly simple causes:

• Parking brake partially engaged

• Low hydraulic fluid level

• Improperly activated operator safety switches

• PTO or transmission levers in the wrong position

A quick check of these items can prevent misdiagnosis and wasted time.

5. Preventive Maintenance: The Key to a Reliable, Long-Lasting Tractor

The best repair is the one that never becomes necessary. Proper preventive maintenance ensures consistent power output and long service life.

Recommended best practices:

• Follow the manufacturer’s service intervals

• Use high-quality filters, lubricants, and spare parts

• Keep the air intake and cooling systems clean

• Record inspections and operating hours

A well-maintained tractor not only performs better but also consumes less fuel, fails less often, and works longer hours without interruption.

6. When Is It Time to Call a Professional?

If the problem persists after these checks, or if you notice:

• Loud metallic knocking

• Excessive, continuous smoke

• Major fluid leaks

• Severe and sudden power loss

It is time to contact a qualified technician. Safety should always be the top priority.

Conclusion

Knowledge, Maintenance, and Productivity

Understanding how your tractor works and how to detect common faults gives you control over your agricultural operation. Basic diagnostics combined with regular maintenance can keep your tractor operating reliably for years—reducing downtime and maximizing productivity every season.

A strong tractor starts with a well-informed operator.
