MX1804-G Large-Scale Agricultural Tractor | Heavy-Duty 180HP Farming Machinery

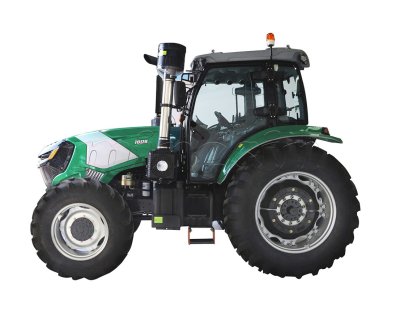

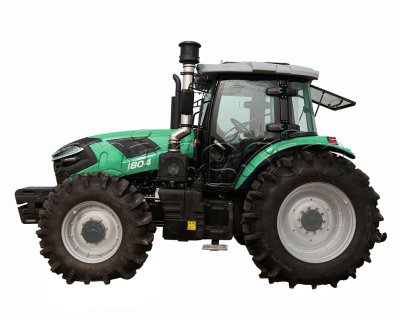

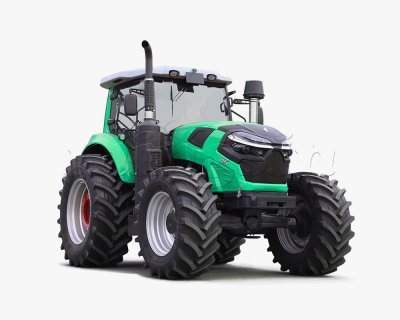

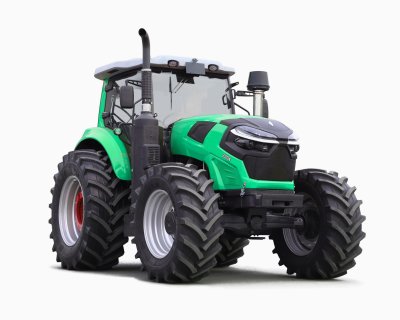

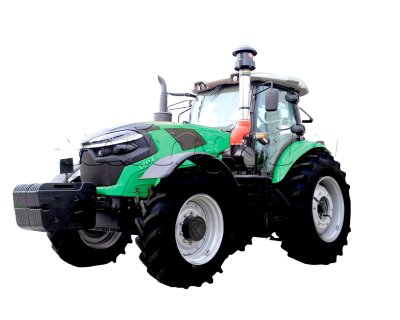

MX1804-G Large-Scale Agricultural Tractor

■ A transmission even smoother than your car`s

With crawling gear structure installed fully synchronizer main transmission and power shift sub-transmission, which has total gear number up to 40 forward gear and 40 reverse gear, covers the speed range 0.36-47.77km / h. It could provide you different range of speed for your different tasks. With the high range for travel speed, medium range for mowing and low range for hard-pull applications and loader work, you’ll always have the power you need for the task at hand.

Electrical fluid control wet multi-plate disc clutch with chassis fault diagnosis system can diagnose chassis fault itself, enhance the ability of continuous operation, give you a superior efficiency.

■ An air suspension seat better than your Sofa.

Air suspension seat, can effectively reduce the turbulence generated during operation of the vehicle, deliver a more comfortable and pleasant driving experience. Four-direction adjustable steering wheel, six-direction adjustable seat, helps you find the most suitable driving position.
Full vision cab with frameless glass cover, provides maximum field of vision for you and makes it safer to operate the tractor.
Using sound-absorbing insulation materials, to seal the whole cab, gives you an excellent sealing performance, effectively cut off the noise and heat from external environment.
The operator-oriented designing idea and ergonomic interior layout, make every button around you clearly marked and easy to touch. An easy-to-reach control lever controls the rear implements operating height and makes sure it’s always right where you need it. Equipped with Air-conditioner, brings you a more comfortable and pleasant driving experience.
Tilting traction structure effectively reduces the impact load and tractor vibration, the driving experience is more comfortable while making the connection structure more durable.

■ Excellent autopilot system liberates your hands and brain

Excellent autopilot system liberates your hands and brain. When the autopilot system controls machine ridge, planting, spraying, harvesting and other agricultural operations, the convergence of accuracy for the spacing is up to 2 cm. It can greatly reduce the cost of crop production inputs, effectively improve the agronomic quality of operations and reduce fatigue. That’s getting every job done faster than ever
Electronically controlled clutch system, it means you can smoothly transform two-wheel drive and four-wheel drive or shift the forward gear and reverse gear just by pressing a button without stopping. So what you need to do next is enjoying your controlling, even during the toughest tasks, allowing you to work smarter and reduce fatigue.
Hydraulic power steering systems with reverse camera makes steering smoother and more flexible, reduce fatigue.
Easily change direction of travel with the quick-shifting -shuttle system. Shift from forward to reverse in different speeds without stopping. You’ll greatly increase loader work productivity and make your entire to-do list easier.
Compact body design, small turning radius , more lightweight and flexible hydraulic power steering, makes it easy to operate and greatly reduces the your fatigue.

■ 3-way hydraulic output

Equipped with 3-way hydraulic output, makes your tractor match more kinds of farm implements. That means you can always get the function you need for whatever task you may face.

Equipped with a brand-name six-cylinder high-pressure common rail engine, offering strong power and fuel efficiency.

Enhanced 14-inch double-acting clutch made of wear-resistant material, providing large torque reserve.

 ■ Other features

Forced cooling lubrication system prevents overheating, extending the life of gears and bearings.

Strengthened rear axle drive housing and optimized transmission gear for improved chassis bearing capacity.

Shuttle shift positioned above the instrument panel for convenient operation.

Hydraulic-assisted clutch ensures comfortable and reliable control, reducing operator fatigue.

Noise-reducing drive system design enhances the driving experience.

Technical Specifications
