Powerful Engine: Equipped with a 100hp Yangdong 4110 turbocharged diesel engine, ensuring efficient performance for demanding agricultural tasks.
Transmission: 12 forward and 12 reverse gears with shuttle shift, providing flexibility and ease in maneuvering.
Drive Options: Available in both 2WD and 4WD configurations to suit different terrain requirements.
Versatile Applications: Ideal for plowing, seeding, mowing, loading, baling, transporting, and various other farm operations.
Hydraulic System: Features a Category II three-point linkage with a maximum lifting capacity of ≥16kN, suitable for a wide range of implements.
PTO Specifications: Dual-speed rear PTO (540/1000 rpm) with 6 splines, compatible with various attachments.
Operator Comfort: Spacious flat floor design with easily accessible controls, enhancing comfort during extended working hours.
Tire Options: Multiple tire configurations available, including 9.5-24/14.9-30, 8.3-24/16.9-30, and 12.4-24/18.4-30, to match specific field conditions.
Durable Build: Constructed with a sturdy TB chassis, ensuring longevity and reliability in various working environments.

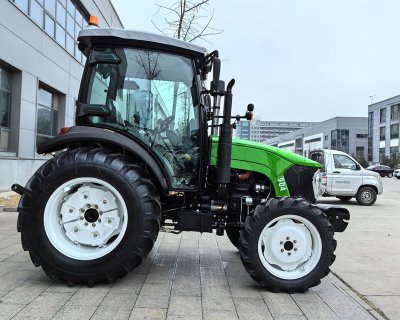

The TB1004 Utility Tractor is a robust and versatile 100hp agricultural machine designed to deliver high performance and operator comfort. Powered by a reliable 4-cylinder turbocharged diesel engine, it offers exceptional fuel efficiency and torque output. The 12F+12R shuttle transmission ensures smooth gear transitions, catering to various farming tasks. Its ergonomic design, featuring a flat floor and conveniently placed control levers, enhances driving comfort and operational efficiency.
Powerful Engine: Equipped with a 100hp Yangdong 4110 turbocharged diesel engine, ensuring efficient performance for demanding agricultural tasks.
Transmission: 12 forward and 12 reverse gears with shuttle shift, providing flexibility and ease in maneuvering.
Drive Options: Available in both 2WD and 4WD configurations to suit different terrain requirements.
Versatile Applications: Ideal for plowing, seeding, mowing, loading, baling, transporting, and various other farm operations.
Hydraulic System: Features a Category II three-point linkage with a maximum lifting capacity of ≥16kN, suitable for a wide range of implements.
PTO Specifications: Dual-speed rear PTO (540/1000 rpm) with 6 splines, compatible with various attachments.
Operator Comfort: Spacious flat floor design with easily accessible controls, enhancing comfort during extended working hours.
Tire Options: Multiple tire configurations available, including 9.5-24/14.9-30, 8.3-24/16.9-30, and 12.4-24/18.4-30, to match specific field conditions.
Durable Build: Constructed with a sturdy TB chassis, ensuring longevity and reliability in various working environments.
Model NO. | TB1004 |
General Data | |
Tractor Power | 100hp |
Chassis Type | TB chassis |
Drive method | 4WD |
Overall dimension（L*W*H）mm | 4050×1830×2660 |
Wheel tread (mm) | front 1050,1150, 1250; rear1000~1300 |
Wheel base (mm) | 2100 |
Min Ground clearance (mm) | 340 |
Min service weight (kgs) | 2825 |
Engine | |
Diesel engine | Yangdong 4110. China Emission Stage II, 4.087L |
Type | inline, direct injection, water cooled |
Intake method | turbocharged |
Engine power | 66.15kW/2400rpm |
Fuel | diesel |
Hydraulic system/working Part | |
Suspension type | three point linkage, CAT II |
Hydraulic output | dry type, dual stage |
Max traction power | ≥24.5kN |
Max lifting power | ≥16kN |
Rear PTO speed | 540/1000rpm |
PTO splines | 6 |
Travelling system | |
Steering | hydraulic steering |
Transmission | gearshift 12F+12R |
Clutch | dry type, dual stage |
Brake | oil-immersed |
Tire size | Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30 |
Theoretical speed | Forward: 2.46-32.73km/h |
