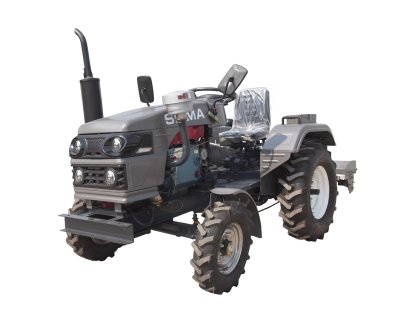

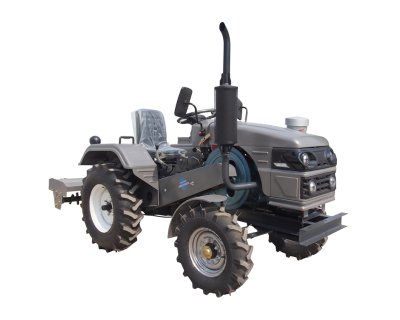

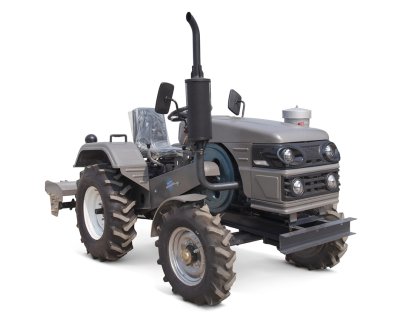

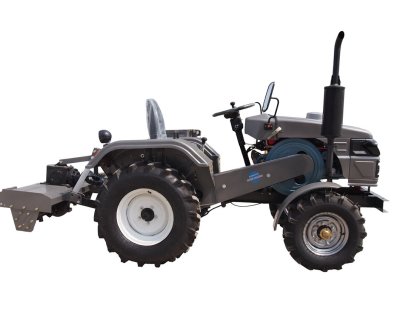

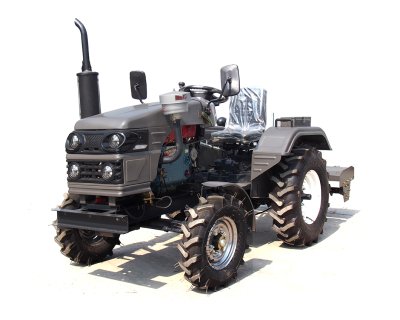

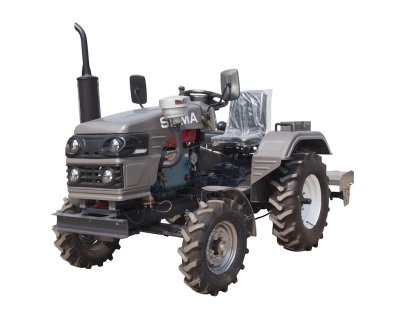

MSD184 18HP 4WD Mini Tractor — ZS1105NM Single-Cylinder Diesel with Four-Wheel-Drive Traction

The MSD184 belongs to the MSD series of small four-wheel agricultural tractors. It is a four-wheel-drive, frame-chassis mini tractor built around the ZS1105NM single-cylinder diesel — a horizontal, water-cooled, direct-injection engine with a 105 mm bore, approximately 0.996 L displacement, and a 12-hour rated power of 12.1 kW / 2200 rpm. In the small-tractor trade this engine is commonly sold as an 18 hp-class unit. Compared with 2WD MSD variants, the defining feature is the 4×4 driveline: the MSD184 engages the front axle under load, converting engine torque into drawbar pull more effectively in low-traction conditions. It is aimed at smallholders, orchardists, and mixed farmers who want four-wheel-drive traction without electronic controls or a larger machine footprint.

Product Features & Advantages

ZS1105NM single-cylinder, direct-injection diesel. The 105 mm-bore, water-cooled ZS1105NM displaces approximately 0.996 L and carries a 12-hour rating of 12.1 kW at 2200 rpm (1-hour 13.3 kW) — an “18 hp-class” engine known for simple mechanical injection, easy starting, and field-serviceable reliability.

Four-wheel drive for low-traction work. The MSD184’s front-drive axle engages under load, putting power to all four wheels in wet soil, on slopes, and during loaded trailer work.

6 forward + 1 reverse mechanical gearbox. The proven MSD shift pattern gives flexible speed selection for tillage, transport, and PTO work without electronic controls.

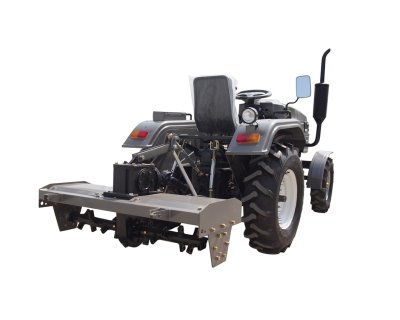

540 rpm PTO and category I three-point hitch. Industry-standard interfaces for rotary tillers, mowers, sprayers, and other small implements — no proprietary adapters required.

Differential lock for mud, loose soil, and wet grass. When one rear wheel loses grip, the differential lock ties the rear axle together; combined with 4WD, it gives the MSD184 a meaningful traction advantage.

Compact four-wheel chassis with a driven front axle. The 4WD front axle adds pulling capability without expanding the MSD184 into a larger tractor class. It remains narrow enough for orchards, greenhouses, and inter-row cultivation.

Water-cooled thermal stability. The ZS1105NM uses a condensing/radiator-type water-cooling system, supporting sustained PTO work and long working days better than air-cooled engines of similar output.

Product Technical Specifications

Engine data note: The ZS1105NM is listed with a 105 mm × 115 mm bore/stroke, ≈0.996 L displacement, 12-hour output 12.1 kW / 2200 rpm, and 1-hour output 13.3 kW / 2200 rpm. The “18 hp” designation reflects the 1-hour rating (13.3 kW ≈ 18.1 PS) and is the common trade label for this engine. Tractor-level dimensions and mass must be confirmed against the actual MSD184 factory specification; the smaller engine may result in a lighter operating weight than the MSD244, but final figures depend on front-axle and ballast configuration.

Product Usage Notes

Engage 4WD deliberately, not permanently. Four-wheel drive is a traction aid for wet soil, slopes, loose ground, and heavy draft — not an all-surface default. On firm dry ground and during tight turns, prolonged 4WD engagement increases tyre scrub and front-axle stress.

Match front and rear tyre wear and inflation. In a 4WD tractor, front and rear rolling circumferences are matched by design. Uneven wear, mismatched pressures, or a different tyre size front-to-rear can cause driveline wind-up. Replace tyres in axle pairs.

Use the differential lock only as needed. Engage it when one rear wheel is slipping, and disengage before turning on firm ground.

Respect PTO load limits, not just engine horsepower. The ZS1105NM is rated at 12.1 kW (12-hour) at the engine, but PTO output is lower. Compare the implement’s PTO power requirement against the tractor’s rated PTO power, not its engine rating.

Warm up the water-cooled diesel before load. Give the ZS1105NM a short low-idle warm-up, especially in cold weather, before running a PTO implement at full load.

Keep the cooling system clear. The ZS1105NM relies on water cooling; clean the radiator/condenser fins and check coolant level before each long session.

Inspect front axle and driveshaft guards. The 4WD front axle and front driveshaft introduce additional rotating components. Check boots, guards, and mounting bolts before field work, and never operate without a driveshaft shield.

Conclusion

If used properly, the Mingsin MSD184 mini tractor will become a reliable helper for the farmer. This equipment is striking in its efficiency, reliability and power!
