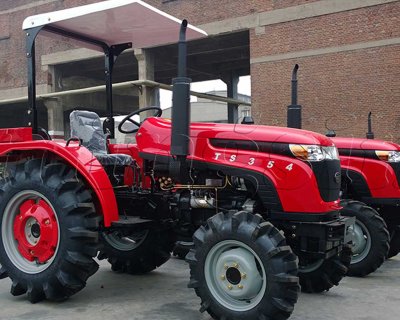

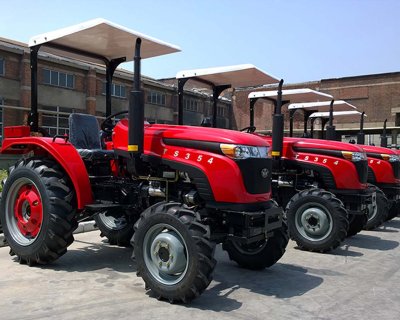

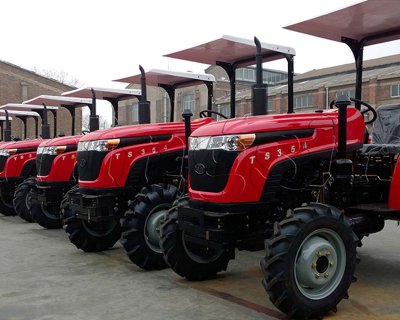

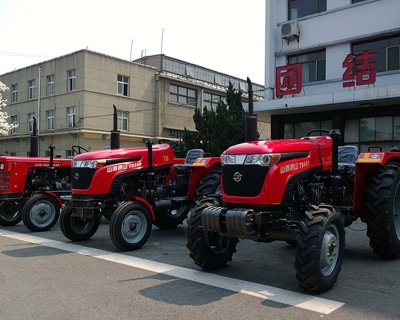

China Compact Tractor Model TY350/TS354
The TY350/TY354 Tractor from the Mingsin is a highly popular choice for small property owners and hobby farmers who need a compact, reliable tractor for tasks that can’t be handled manually. Perfectly suited for light-duty farm work, the TY350/TY354 is equipped with a front-end loader featuring a versatile 4-in-1 bucket, ideal for cleaning and maintaining your property with ease.
Powered by a proven 3-cylinder diesel engine, the TY350/TY354 delivers dependable performance and straightforward serviceability. Whether you're clearing land or tackling other chores, this tractor is built to make your work easier and more efficient.
Main Features
■ Integral type flat floor, side-mounted transmission control, suspended pedal,beautiful shape and driving comfort;
■ Optional safety frame or heating cab;
■ Optional EPAIV engine in order to meet different emission requirement area;
■ Double-acting clutch, 8+2 /8+8 shuttle type shift gear,with working efficiently;
■ Optional synchronized shuttle-type shift gear, lightness control and flexible and reliable;
■ Hydraulic steering,front drive axle of puncturing fuel cylinder, steering control and light and flexible;
■ Provide EC,EPA,GOST certification model.
■ Match the LD385 engine, large torque reserve , powerful;Match the LD385 engine, large torque reserve , powerful.
■ Dual-speed power output, according to job requirements can choose 540 / 720r / min and 540 / 1000r / min.
China Compact Tractor Model TY350/TS354
The TY350/TY354 Tractor from the Mingsin is a highly popular choice for small property owners and hobby farmers who need a compact, reliable tractor for tasks that can’t be handled manually. Perfectly suited for light-duty farm work, the TY350/TY354 is equipped with a front-end loader featuring a versatile 4-in-1 bucket, ideal for cleaning and maintaining your property with ease.
Powered by a proven 3-cylinder diesel engine, the TY350/TY354 delivers dependable performance and straightforward serviceability. Whether you're clearing land or tackling other chores, this tractor is built to make your work easier and more efficient.
Main Features
■ Integral type flat floor, side-mounted transmission control, suspended pedal,beautiful shape and driving comfort;
■ Optional safety frame or heating cab;
■ Optional EPAIV engine in order to meet different emission requirement area;
■ Double-acting clutch, 8+2 /8+8 shuttle type shift gear,with working efficiently;
■ Optional synchronized shuttle-type shift gear, lightness control and flexible and reliable;
■ Hydraulic steering,front drive axle of puncturing fuel cylinder, steering control and light and flexible;
■ Provide EC,EPA,GOST certification model.
■ Match the LD385 engine, large torque reserve , powerful;Match the LD385 engine, large torque reserve , powerful.
■ Dual-speed power output, according to job requirements can choose 540 / 720r / min and 540 / 1000r / min.
Model | TY350 | TY354 | |||
Drive Type | 4×2 | 4×4 | |||
Engine | |||||
Engine Manufacturer | Shandong Laidong | ||||
Engine Model | LD4L22, 4 Cylinders | ||||
Engine Type | inline,vertical,water-cooled,four-stroke | ||||
Cylinder diameter(mm) | 100 | ||||
Stroke(mm) | 105 | ||||
Max Torque(N·m)/Revolving Speed(rpm) | ≥121/≤1400 | ||||
Displacement(L) | 2.47 | ||||
Fuel Tank Capacity(L) | 51 | ||||
Engine Rated Power (kW/rpm) | 25.7 | ||||
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤243 | ||||
Drive Train | |||||
Clutch | Dry,single-stage | ||||
Standard PTO speed(rpm) | (540,1000)/(750,1000)/(540,750) | ||||
Gears | 8F+2R/8F+8R | ||||
Speed range(Km) | 2.35~30.09 | 1.98~25.33 | |||
Steering type | mechanical steering | hydraulic steering | |||
Gear Shift Mode | sliding gear shift | ||||
Break System | |||||
Service Brake | pedal,mechanical drive,closed shoe type | ||||
Parking Brake | locked pedal | ||||
Hydraulic System | |||||
Hydraulic Output Flow(L/min) | 30 | ||||
Hydraulic Output Valve | 1 way(optional) | ||||
Working Device | |||||
Three-Point Suspension | postposition,Category I | ||||
Max.Lifting Capacity(kN) | ≥5.78 | ||||
Tillage Depth Adjustment | draft and position adjustable | ||||
General Parameter | |||||
Overall Dimension(L×W×H)mm | With cab | / | |||
Without cab | 3195×1510×2065 | 3235×1455×2070 | |||
Wheelbase(mm) | 1840 | 1830 | |||
Min. operating weight(kg) | With cab | / | |||
Without cab | 1540 | 1830 | |||
Min. Ground Clearance(mm) | 440 | 345 | |||
Min.turning radius(mm) | 3200 | 3300 | |||
Maximum Pull(KN) | 7.5 | 10.3 | |||
Front Tire | 5.0-15 | 6.5-16 | |||
Rear Tire | 11.2-24 | 11.2-24 | |||
Optional Disposition | |||||
hydraulic steering, | dual-stage clutch, | ||||
