China Sub-Compact Tractors: Your Ultimate Guide

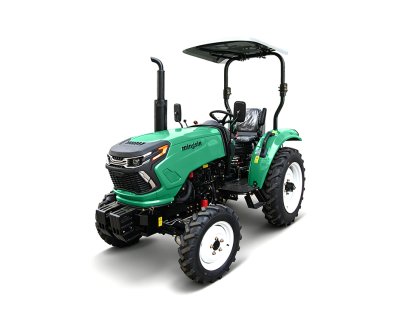

Mingsin MX254-Y Mini Tractor: Power, Reliability, and Versatility in One Machine

The Mingsin MX254-Y mini tractor offers the ideal balance of performance, traction, and functionality. It is equipped with the proven 385 three-cylinder, four-stroke diesel engine (24 hp), widely recognized as one of the most reliable and fuel-efficient engines in its class. This same engine is successfully used in equipment produced by well-known brands such as Dongfeng and Lovol, confirming its high quality and excellent serviceability.

Thanks to its 8+2 mechanical transmission (8 forward and 2 reverse gears), the tractor delivers flexible control for any type of work—from slow soil cultivation to faster transport tasks. The gearbox is known for its precise shifting and long service life, and it is also used on popular Dongfeng models.

Special attention has been given to off-road capability:

Ø The 4×4 full-time drive, paired with a lockable rear differential, ensures confident operation even on soft, uneven, or challenging terrain.

Ø The well-balanced 45/55 weight distribution (front/rear) provides excellent stability and traction.

Ø A long wheelbase and an operating weight of 1,250 kg—significantly higher than most competitors in this class—make the MX254-Y an ideal platform for heavy attachments and wide rotary tillers.

Ø Large-size tires (front 6.00–16, rear 9.50–24) further improve ground clearance and operator comfort when working on rough terrain.

Key Technical Features & Advantages

Ø Hydraulic System: Standard three-point hitch hydraulic distributor with two additional hydraulic outlets and quick couplers, allowing easy connection of external implements—from sprayers to hydraulic mowers.

Ø PTO (Power Take-Off): Live, two-speed PTO (540/720 rpm), 6-spline — compatible with a wide range of mounted and trailed equipment.

Ø Rear Hitch Lifting Capacity: Up to 480 kg — sufficient for most tasks in private farms, small agricultural operations, and municipal services.

Ø Power Steering with Independent Circuit: Reduces steering effort and improves maneuverability.

Ø Adjustable Suspension Seat: Ensures comfort even during long working hours.

Ø LED Lighting: Bright and energy-efficient illumination.

Ø Front and Rear Counterweights: Provide proper balance when using heavy attachments.

Ø Built-in Compressor and Trailer Socket: Everything needed for towing and pneumatic equipment. The air receiver is conveniently located behind the operator’s seat.

Where Is the Mingsin MX254-Y Most Effective?

Ø This model has already earned the trust of thousands of owners across Russia and the CIS. Its versatility allows it to perform equally well in agriculture and municipal applications:

Ø Plowing, cultivation, harrowing, sowing, and harvesting

Ø Operation with rotary tillers, plows, mowers, and sprayers

Ø Transporting goods with a trailer

Ø Snow removal in winter using a blade or snow shovel

Ø Maintenance of private properties, nurseries, greenhouses, and livestock farms

With its low fuel consumption, easy maintenance, high durability, and excellent off-road capability, the Mingsin MX254-Y has truly become a “workhorse” for farmers, private landowners, and municipal services.

Mingsin MX254-Y — more than just a mini tractor; it’s a dependable helper for any season and any task.

China 25hp Sub-Compact Tractor – Ideal for Small-Scale Farming and Garden Work

Main Features

■ A more smooth and flexible steering

Hydraulic power steering system, four-wheel drive models can equip full hydraulic steering, that means your steering will be more smooth and flexible, just enjoy your driving. Compact body and small turning radius make it easy to operate, 2-wheel drive 2.8m, 4-wheel drive 3m.

■ Differential lock, Superior off-road performance

Differential lock provides you better off-road performance.

Chassis designed in mature technology gives you an excellent durable performance.

Anti-rollover safety frame can effectively ensure the safety of the you when the tractor rollover.

■ Classic match

Transmission with 8 forward + 2 reverse gears (slip gear shift). You can choose to install the crawling gear structure which could double the number of the gears and provide you better traction. Another transmission with 10 forward + 2 reverse gears (clutch shift) is optional. You can also choose to install the crawling gear structure to make it become 20 forward + 4 reverse gears and provide you better traction. Driving speed covers the range of 0.32-38Km / h, meets the various demands of field working and road transportation.

■ Hydraulic output, Excellent versatile performance

Equipped with anti-rollover safety frame, which could effectively guarantee the driver`s body safe when the tractor overturns.

Equipped with awnings, your job is no longer limited by the weather.

Technical Specifications

General

· Brand: Mingsin

· Country of Manufacture: China

· Warranty: 1 year

· Traction Class: 0.4

· Hydraulic Distributor: Standard distributor for three-point linkage

· Hydraulic Pump Capacity: 14 L/min

· Standard Counterweights Included: Set of front and rear counterweight

· Number of Hydraulic Outlets:

· Compressor: No

· Air Receiver: No

· Hitch System: Three-point

· Hitch Lifting Capacity: 420 kg

· Front Wheels: 6.00-16

· Rear Wheels: 9.50-24

· Front Track Width: 1210 mm

· Rear Track Width: 1300 mm

· Wheelbase: 1680 mm

· Ground Clearance: 290 mm

Dimensions and Weight

· Overall Dimensions: 3100×1630×2000 mm

· Structural Weight Without Counterweights: 1280 kg

· Front Counterweights: 6×7 kg

· Rear Counterweights: 2×20 kg

Cab

· Cab: Optional

Engine

· Engine Model: 385

· Power: 24 hp

· Engine Type: Diesel

· Количество цилиндров:3

· Number of Cylinders: 3

· Cooling System: Liquid-cooled

· Engine Displacement: 1.53

· Fuel Tank Capacity: 30 L

· Turbocharger: No

· Intercooler: No

· Glow Plugs: No

· Decompression Mechanism: Yes

Transmission

· Wheel Formula: 4×4

· Engine-to-Gearbox Drive Type: Direct

· Differential Lock: Forced lock of the rear axle planetary mechanism

· Gearbox Type: Mechanical

· Number of Gears: 8 forward, 2 reverse

· Clutch: Dual-disc, two-stage, dry type, constant-mesh

· PTO Type: Splined

· Number of PTO Splines:

· PTO Speed: 540/1000 rp

· Front Axle: Oscillating, portal-type (with final drives)

· Creeper Gear: No

· Shuttle (Reverser): Yes

· Synchronizer: No

· Forced Hitch Lowering: Yes

· Floating Hitch Mode: Yes

Controls

· Power Steering: Yes

· Independent Circuit for Power Steering: Yes

· Brake System Type: Disc, dry

Electrical Equipment

· Horn: Yes

·  Lighting and Signals: High and low beam | Turn signals | Position lights | Brake light | Rear linkage illumination

Dashboard

· Hour Meter: Yes

· Tachometer: No

· Voltmeter: Ye

· Temperature Gauge: Ye

· Oil Pressure Gauge: Yes

· Fuel Level Indicator: Yes

· Air Pressure Indicator: No
