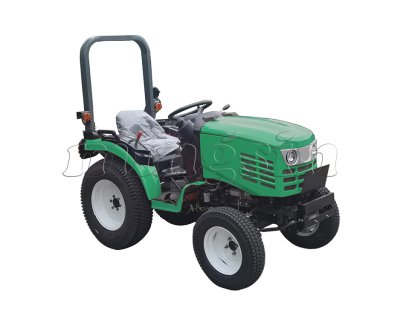

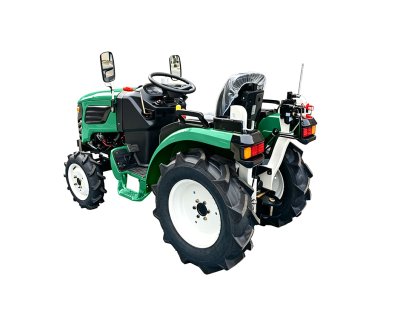

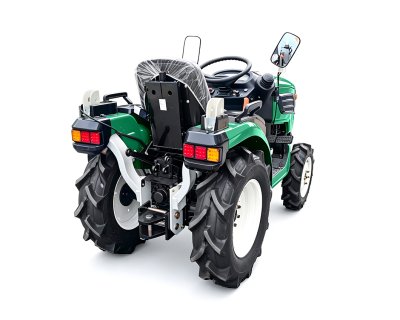

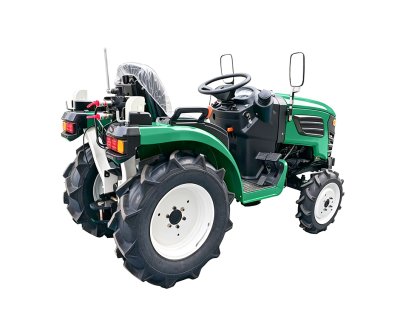

The Mingsin MSA254 agricultural tractor was designed to meet the needs of small and medium-sized producers who require a reliable, compact, and powerful machine for daily farm operations. Equipped with a 25 HP 3-cylinder diesel engine, this model combines strength and efficiency in a reduced-size frame, making it ideal for narrow-row crops, greenhouses, horticulture, fruit growing, poultry farming, dairy production, and general farm maintenance.
Main features and benefits

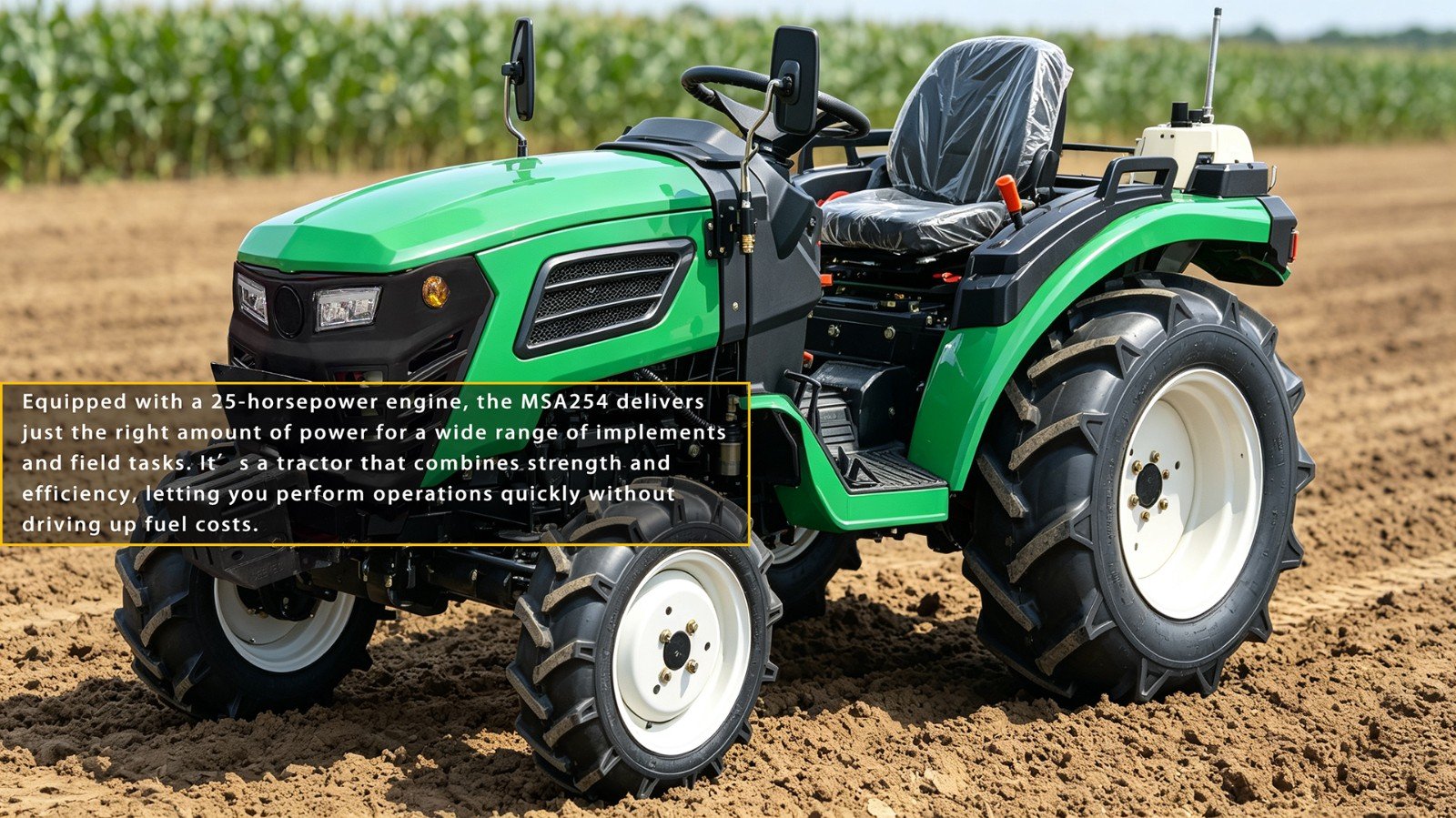

3-cylinder diesel engine with 25 HP: Reliable power for intensive farming with low fuel consumption
8-speed transmission (6 forward + 2 reverse): Full versatility for transport, soil preparation, and implement operation

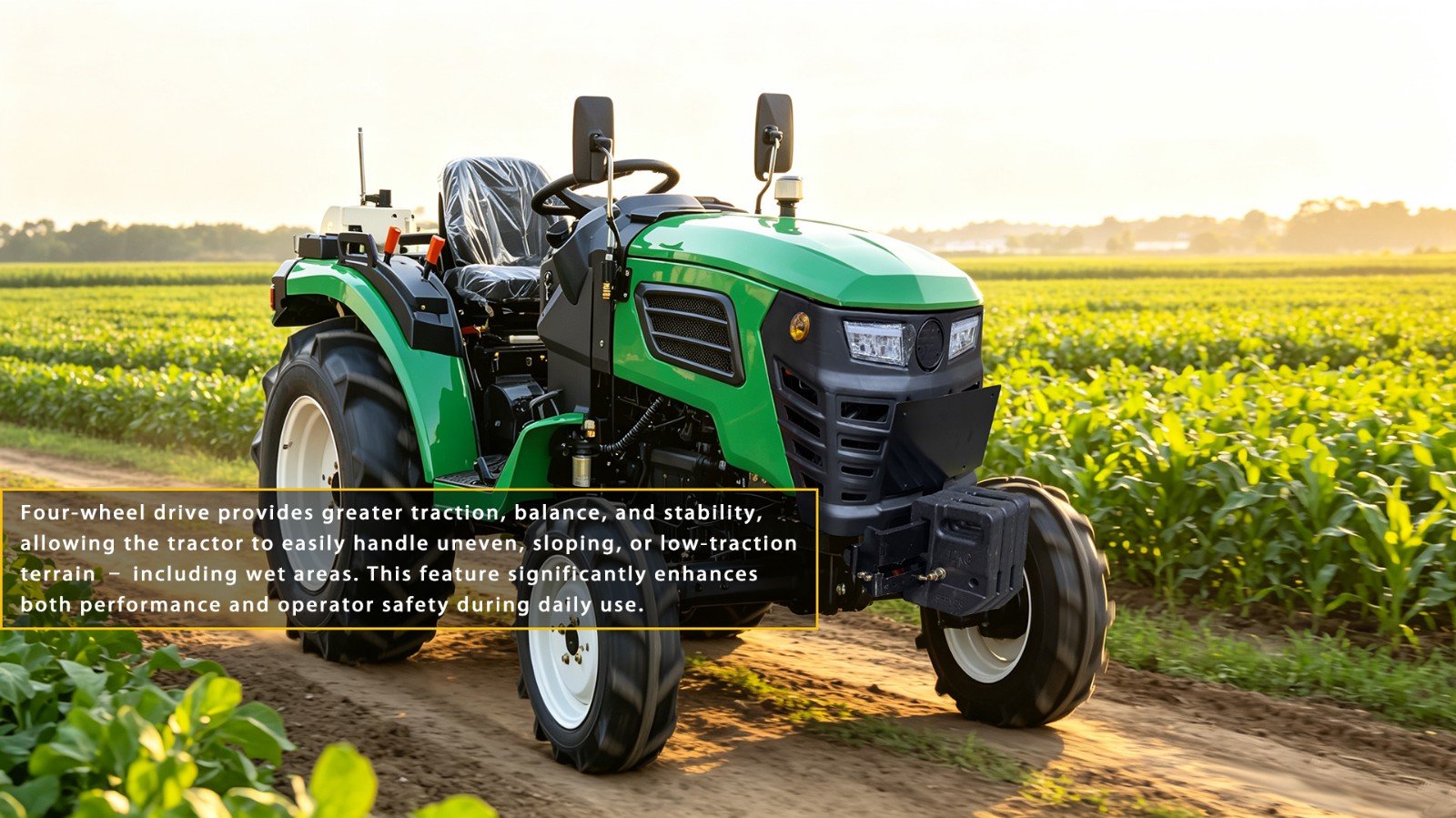

Permanent 4WD: Enhanced safety and traction on slopes, mud, loose soil, or when towing loads
Semi-hydraulic steering: Reduces operator effort and enables faster maneuvers even with heavy implements
Hydraulic linkage with 11.1 kN: Compatible with Category 1 harrows, sprayers, rippers, planters, and other equipment
Super compact (only 970 mm wide): Ideal for greenhouses, vegetable gardens, nurseries, and narrow-spaced areas
Factory-included ROPS, vertical exhaust, and counterweights: Superior safety and stability on all terrains
Robust construction with 745 kg operating weight: Increased ground grip and traction capacity without compromising lightness
Generous fuel tank and simplified maintenance: Low operating costs and extended service life
Mingsin MSA254 Agricultural Tractor – 25 HP 4x4 Super Compact
Power, Mobility, and Versatility for Small and Medium Farmers with Limited Space and High Operational Demand
The Mingsin MSA254 agricultural tractor was designed to meet the needs of small and medium-sized producers who require a reliable, compact, and powerful machine for daily farm operations. Equipped with a 25 HP 3-cylinder diesel engine, this model combines strength and efficiency in a reduced-size frame, making it ideal for narrow-row crops, greenhouses, horticulture, fruit growing, poultry farming, dairy production, and general farm maintenance.
Its compact structure, just 970 mm wide, allows for agile operation in areas where conventional tractors cannot access. The 4x4 drive system provides better grip and stability on uneven, wet, or rugged terrain, making it extremely useful on rainy days, sharp turns, or loose soil.
The 8-speed transmission (6 forward and 2 reverse gears) allows precise speed control for a variety of implements and tasks, such as spraying, subsoiling, harrowing, fertilizing, and light soil preparation. In addition, it features an 11.1 kN hydraulic lift, vertical exhaust, rollover protection bar, front and rear counterweights, and Category I hitch—offering compatibility with a wide range of agricultural implements available on the market.
Main features and benefits
3-cylinder diesel engine with 25 HP: Reliable power for intensive farming with low fuel consumption
8-speed transmission (6 forward + 2 reverse): Full versatility for transport, soil preparation, and implement operation
Permanent 4WD: Enhanced safety and traction on slopes, mud, loose soil, or when towing loads
Semi-hydraulic steering: Reduces operator effort and enables faster maneuvers even with heavy implements
Hydraulic linkage with 11.1 kN: Compatible with Category 1 harrows, sprayers, rippers, planters, and other equipment
Super compact (only 970 mm wide): Ideal for greenhouses, vegetable gardens, nurseries, and narrow-spaced areas
Factory-included ROPS, vertical exhaust, and counterweights: Superior safety and stability on all terrains
Robust construction with 745 kg operating weight: Increased ground grip and traction capacity without compromising lightness
Generous fuel tank and simplified maintenance: Low operating costs and extended service life
Full specifications
Model: MSA254
Type: 4x4 compact agricultural tractor
Engine power: 25 HP
Engine type: Diesel, 3-cylinder, liquid-cooled
Transmission:
3 forward + 1 reverse (standard)
3 forward + 1 reverse (creeper)
Total: 6 forward and 2 reverse gears
Traction: 4WD with differential
Steering system: Semi-hydraulic
Clutch type: Single-stage dry clutch
Power take-off (PTO): Side-mounted, independent
Hydraulic linkage capacity: 11.1 kN
Hydraulic system capacity: 14 liters

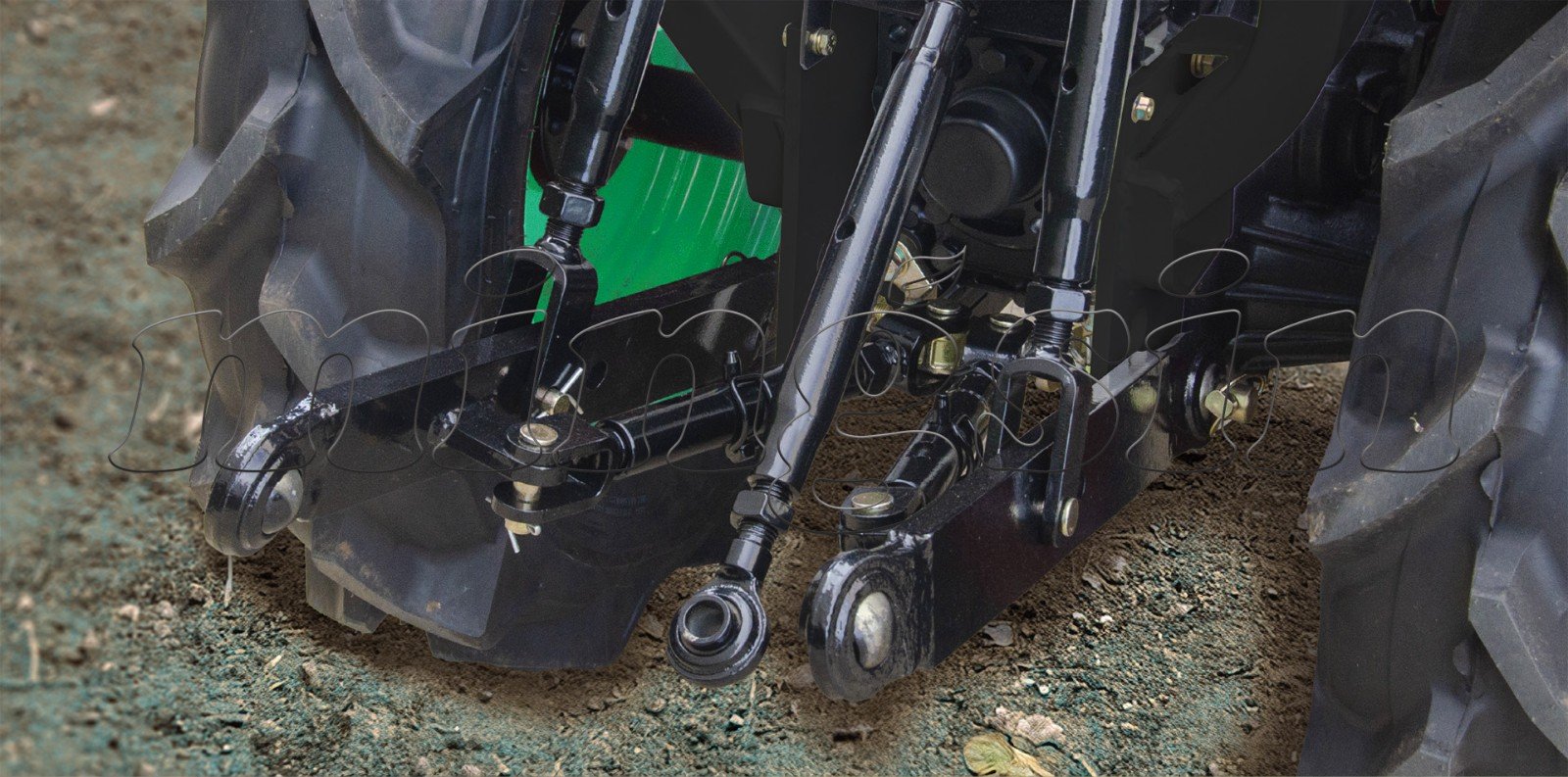

Three-point hitch category: Category I
Front counterweight: Included
Rear counterweight: Included
ROPS (protective structure): Included

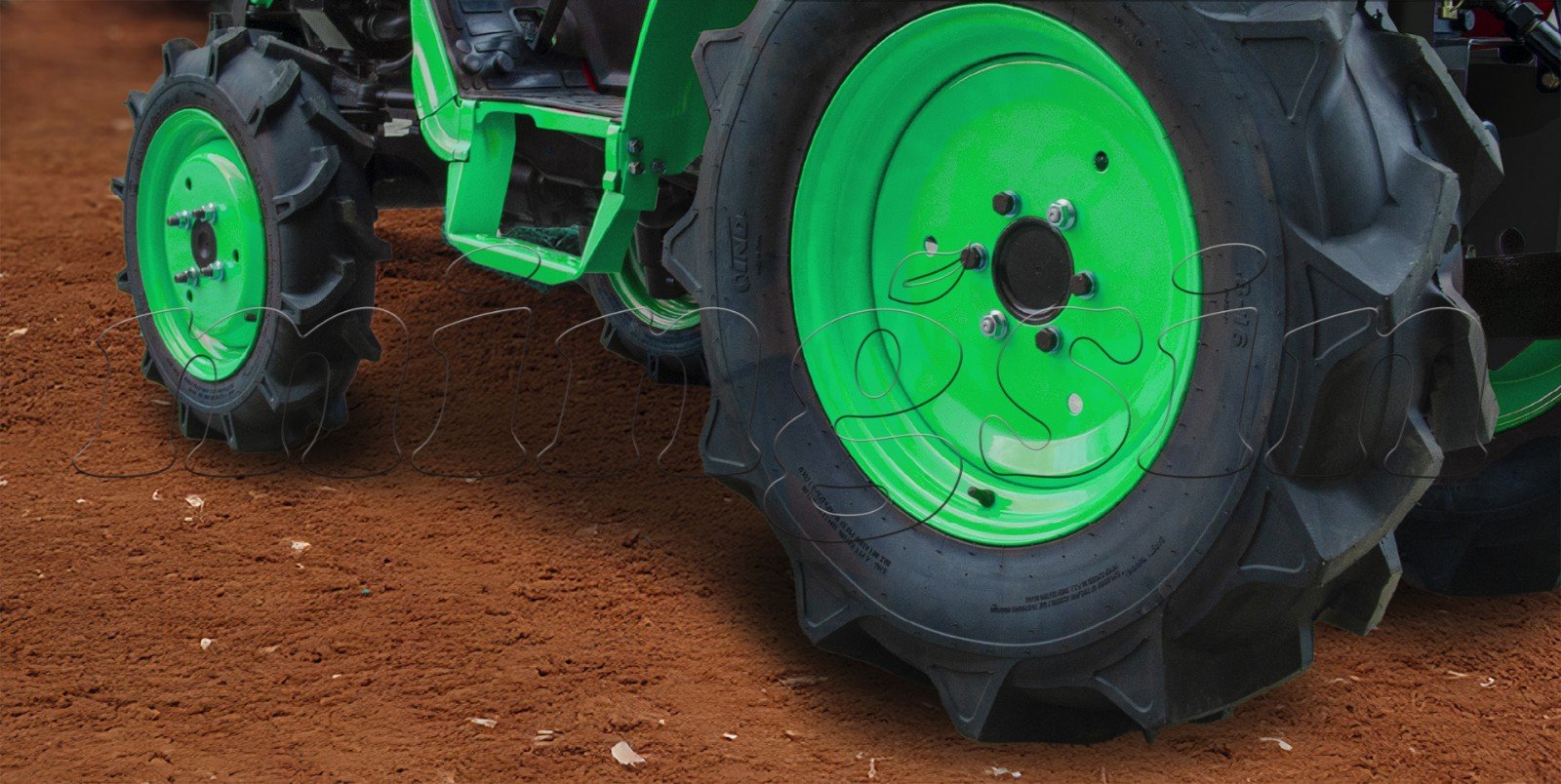

Front tires: 5.00-12
Rear tires: 8-16
Overall dimensions (L x W x H): 2450 x 970 x 1807 mm
Operating weight: 745 kg
Fuel tank capacity: 14 L (estimated)
Electrical system: 12V with basic instrument panel
Exhaust system: Vertical
Recommended applications

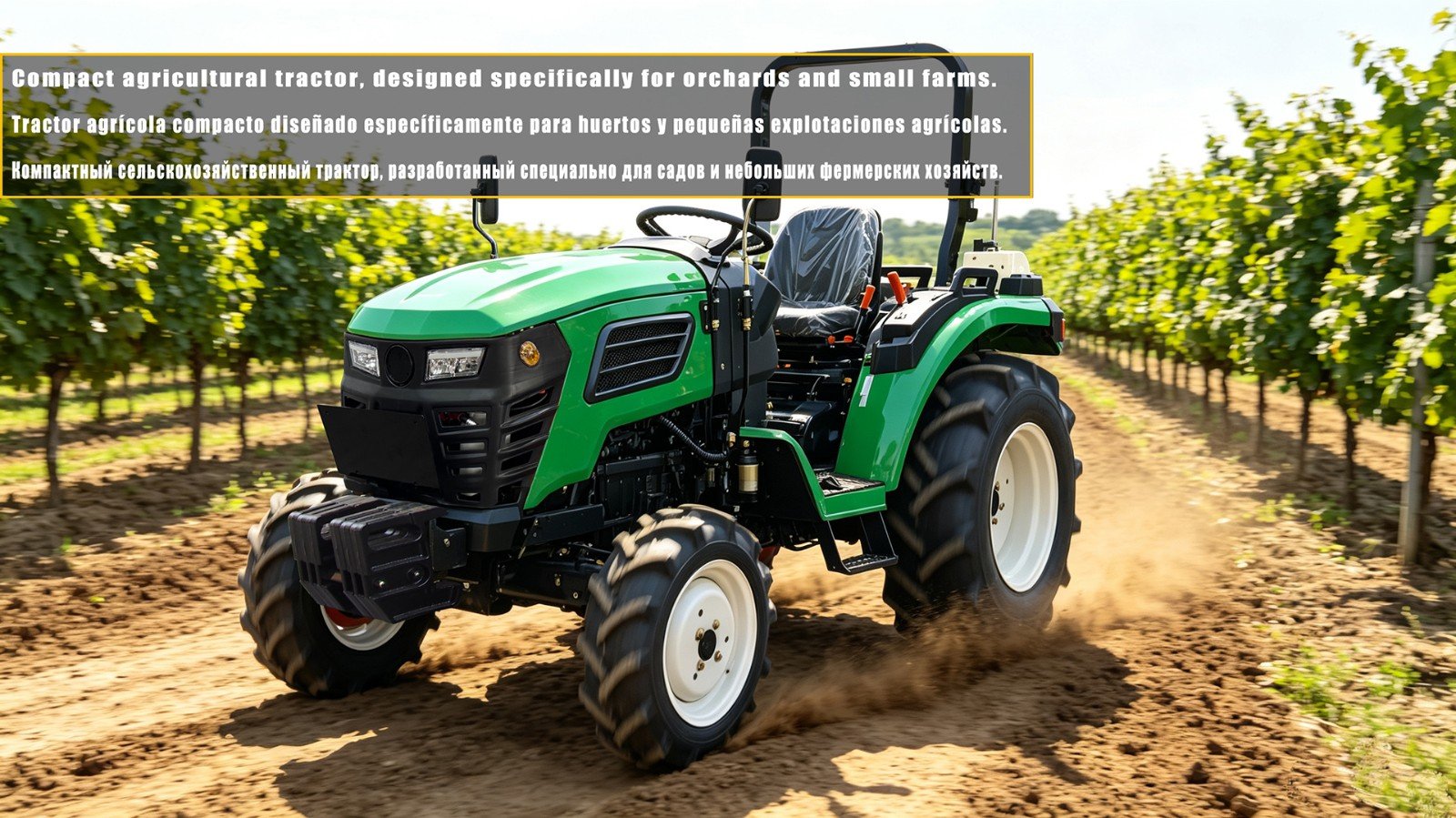

Precision fruit farming: Grapes, persimmons, apples, peaches, guavas, citrus, and other closely spaced crops
Commercial vegetable farming: Onions, carrots, potatoes, cabbage, lettuce, beets, kale, broccoli, etc.
Operations in greenhouses and covered areas
Internal transport with farm trailers on smallholdings and estates
Targeted spraying with towed boom or mist blower
Light soil preparation with rotary hoes, single-line plows, or narrow harrows
Fertilizing, planting, and furrowing with simple precision implements
Work in nurseries and flower farms where light agricultural traffic is essential
Usage and maintenance tips
Always use high-quality diesel fuel and avoid prolonged storage in improper containers
Check engine and hydraulic oil levels daily before operation
Calibrate tires periodically to ensure traction and prevent uneven wear
Keep the radiator clean, especially after working in dusty or straw-heavy areas
Change oil and filters according to the schedule in the operator’s manual
Regularly lubricate moving points on the hitch and traction system
Do not exceed specified lifting capacity or hydraulic linkage torque
Reduce speed on slopes or during turns for enhanced safety
Use only Category I compatible implements to ensure efficiency and prevent hydraulic system overloads
Technical Specifications:
Model | MSA254 |
Hydraulic lift capacity: | 570 kg |
Fuel tank capacity: | 14 L |
Hood: | No |
Hydraulic control: | N/A |
Rear wheel counterweight: | No |
Front counterweight: | Yes |
Dimensions: | 2450 x 970 x 1807 mm |
Steering: | Hydraulics |
Clutch: | Dry, single stage |
Exhaust: | Side |

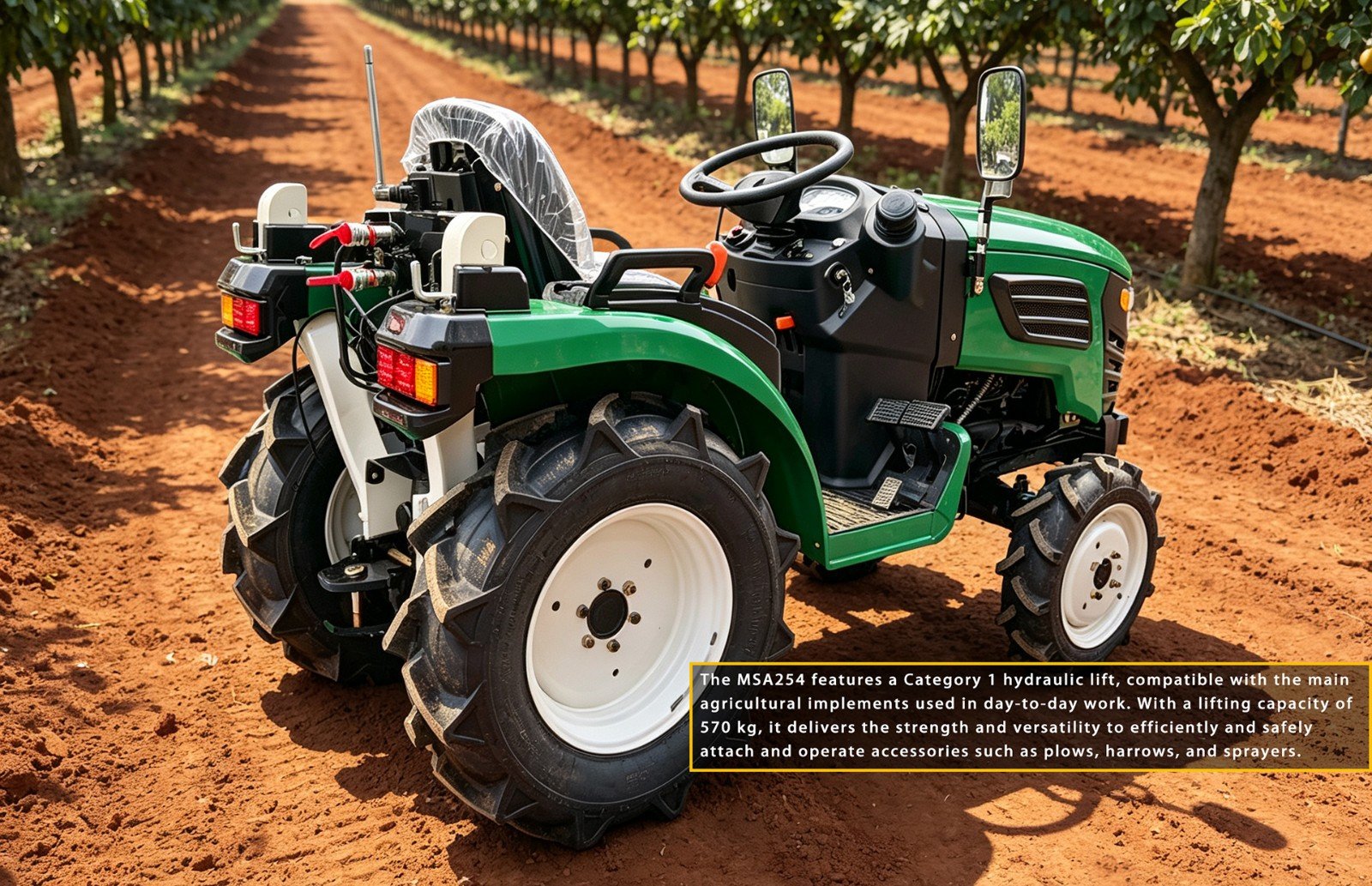

Hydraulic lift: | Category 1 |
Gears: | 8 ( Normal: 3 Forward + 1 Reverse / Reduced: 3 Forward + 1 Reverse) |
Observations: | The model uses a single reservoir for the lift, transmission and power steering system |
Net weight: | 745 kg |
Transmission power at working speed: | 17.3 kW |
Power: | 25 HP / 18.5kW |
Santo Antônio: | Yes |
Type: | Diesel, 3 cylinders in line |
Hydraulic take-off: | N/A |
Rear tires: | 8.00 - 16 |
POWER TAKE-OFF (with engine at 1800 rpm): | Dual rotation - 635 / 1116 rpm |
Front tire: | 5.00 - 12 |
Allows front loader mounting: | No |
Engine oil capacity: | 2.6 liters |
Engine oil type: | Oil SAE 15W40 - (2.6 liters) |
Transmission oil type: | SAE 46 |
Transmission oil capacity: | 11.5 liters |
Front axle oil type: | SAE 90 |
Hydraulic system oil capacity: | 11.5 liters |
Hydraulic steering system oil type: | SAE 46 |
