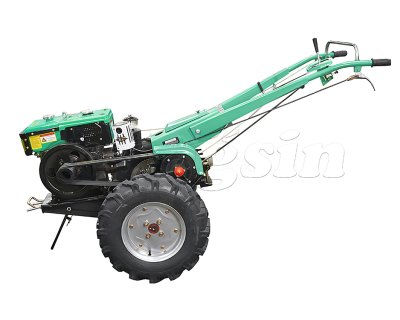

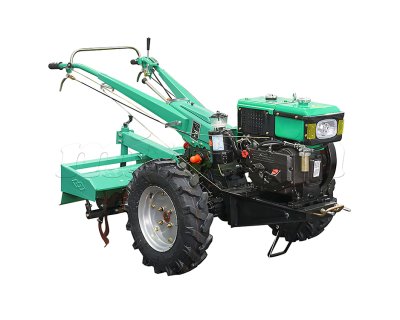

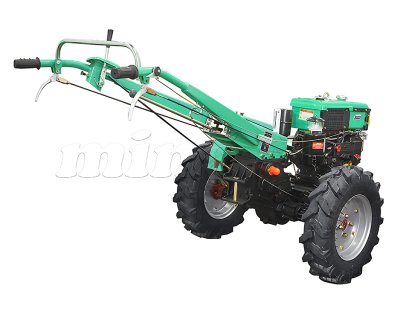

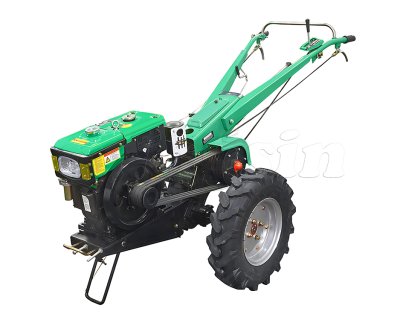

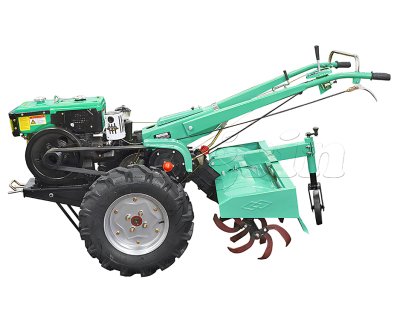

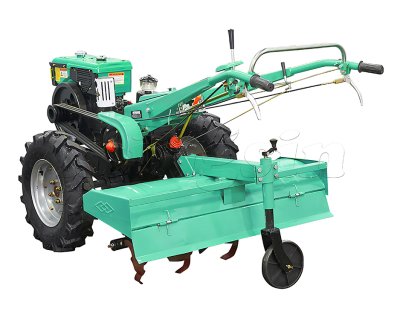

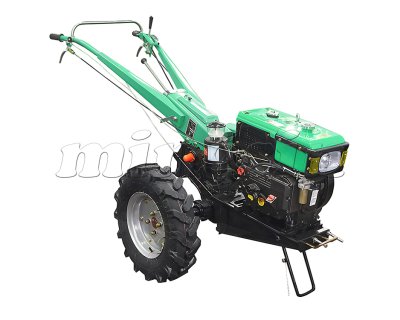

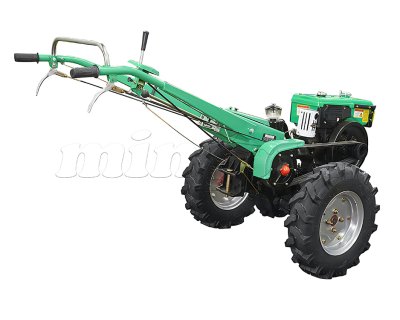

The Mingsin Brand 8h Walking Tractor is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX81 walking tractor is more powerful and efficient than MX61. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination.
It can be used for plowing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Walking Tractor Model MX81 – Powerful, Versatile, and Compact
The MX81 walking tractor is designed for small to medium-sized farms, offering exceptional power and versatility in a compact design. Ideal for various agricultural tasks like tilling, plowing, and cultivating, this model features a robust engine, easy handling, and high efficiency. Whether you're preparing soil for planting or performing maintenance on your land, the MX81 delivers reliable performance with minimal effort. With its durable build and multiple attachment options, it’s the perfect solution for small-scale farming and gardening. Discover how the MX81 can help you streamline your farming operations today.
Key Features:
Powerful engine for optimal performance
Compact design for easy maneuverability
Multi-functional for various agricultural tasks
Durable and long-lasting construction
Easy to operate and maintain
Technical Specifications:
Model | Unit | MX81 | |
Structure weight | Without rotavator | kg | 205 |
With rotavator | 262 | ||
Working weight (with rotavator) | kg | 274 | |
Overall dimensions (LxWxH) | mm | 2170x845x1150 | |
Number of blades | PCS | 14-20 | |
Rototilling width | mm | 700, 800, 900, 1000 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forward | Km/h | 1.98, 3.08, 4.98, 8.04, 12.49, 20.2 |
Reverse | 1.53, 6.18 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 680~740(adjustable) | |
Min. ground clearance | mm | 210 | |
Min. turning radius | m | 0.71 (without rotavator) | |
Model of engine | R180AN | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 80*80 | |
Total displacement | L | 0.402 | |
Compression ratio | 22±1 | ||
Turing speed of crankshaft | rpm | 2600 | |
1-hour rated output | KW/hp | 5.67/8 | |
12-hour rated output | KW/hp | 5.15/7 | |
Specific fuel consumption | g/kw.h | ≤278.8 | |
Specific lube oil consumption | g/kw.h | ≤2.72 | |
Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional) | Anti-skid steel wheel Model 100-640 | ||
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Enhance your productivity with our affordable and reliable 118HP mini tractors. Designed for small to medium-scale farming and landscaping, these tractors offer excellent maneuverability and low maintenance. Perfect for homeowners, small farmers, and garden enthusiasts.
Model TY300 and TY304 compact tractor boasts a reliable, Laidong diesel engine, a dry-friction, single-disc, dual-stage clutch for smooth operation, and constant-mesh gear engagement. It features responsive hydraulic steering and a Category I/II three-point hitch. The rear-mounted, semi-independent PTO offers speeds of 540/760 RPM or 540/1000 RPM, and includes dual hydraulic outputs for versatile implement use.
Good Description: The Mingsin Brand 8hp walking tractor is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX81 walking tractor is more powerful and efficient than MX61. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plowing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
With a spacious and durable deck, our walking tractor's trailer provides ample space for transporting various items.
