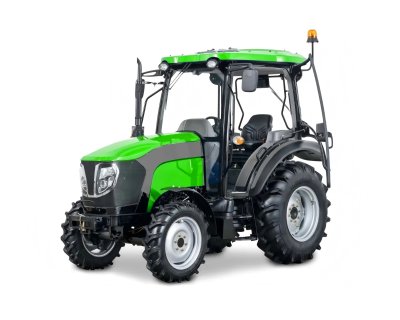

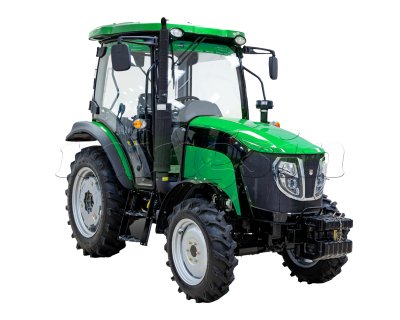

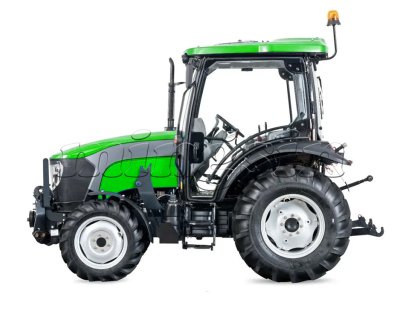

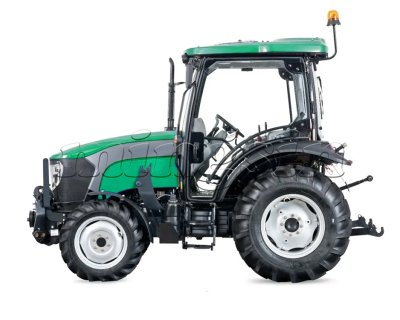

Discover the Mingsin TB754 Utility Tractor – a robust 70hp Euro V diesel engine tractor with 12F+12R transmission, 4WD/2WD options, and hydraulic steering. Ideal for farming, mowing, transporting, and ranch work. Features turbocharged power, 3-point linkage, and customizable tires. Built for stability, comfort, and efficiency.Other products that use TB chassis are Utility Tractor TB804,Utility Farm Tractor TB904,Utility Farm Tractor TB1004.
Euro V 75HP Tractor: A high-performance, emission-compliant agricultural tractor designed for versatility and ease of operation. Equipped with a 12F+12R shuttle transmission for seamless speed adjustments, it supports 2WD/4WD configurations and customizable tire options (e.g., 9.5-24/14.9-30). Ideal for farming tasks like cultivating, mowing, loader operations, and transportation. Features a flat-floor design for enhanced workspace comfort and ergonomic controls
Key Specifications:Engine: 75HP Euro V-compliant diesel engine, ensuring low emissions and fuel efficiency.
Transmission: 12F+12R shuttle shift with optional synchronized shifting for smooth operation across varied workloads.
Driving type: 2WD or 4WD configurations to adapt to terrain demands.
Tire Options: Optional combinations (e.g., 9.5-24/14.9-30; 12.4-24/18.4-30) for optimal traction and stability.
Ergonomic Controls: Intuitive lever placement for easy reach and reduced operator fatigue.
Flat-Floor Cabin: Spacious, clutter-free workspace with enhanced visibility and comfort.
Applications:Farming: Cultivating, mowing, baling, and livestock management.

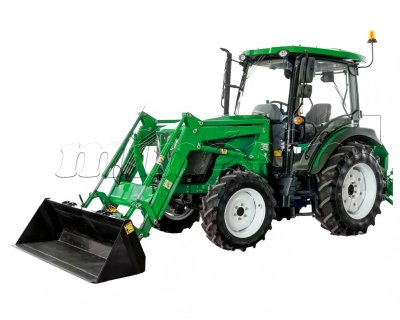

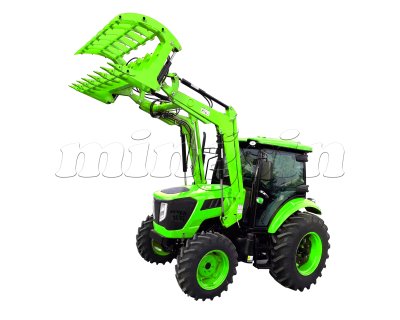

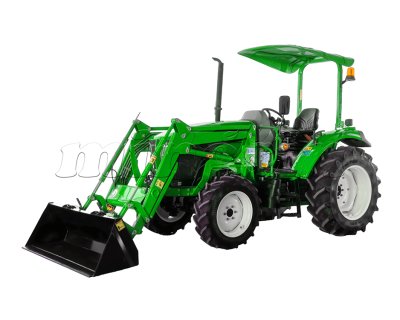

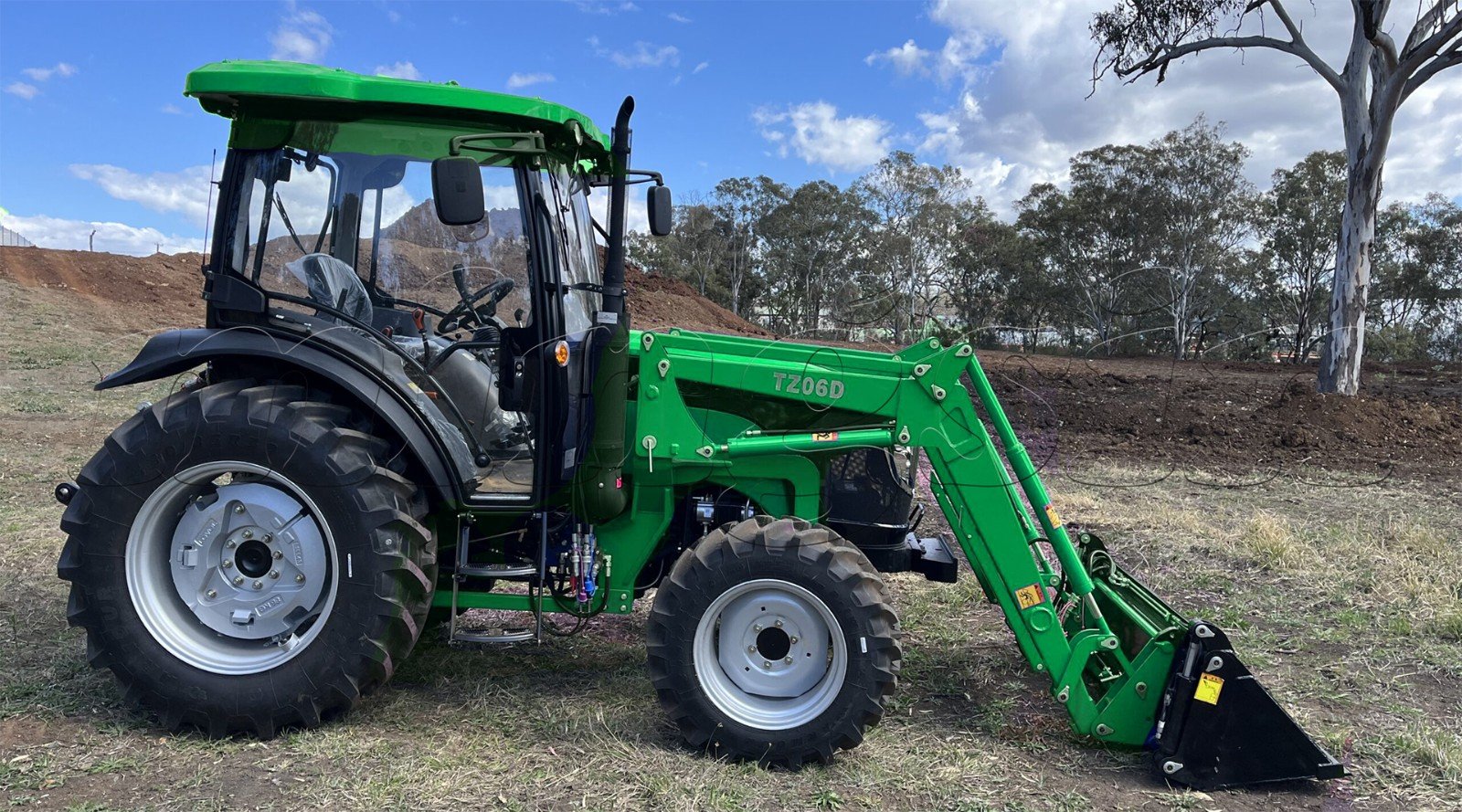

Utility Work: Loader/backhoe operations, roadside maintenance, and ranch chores.
Synchronized shifting for precision tasks.
Customizable tire setups for specialized terrain.
Compliance & Efficiency:
Meets Euro V emission standards, balancing power with environmental responsibility.
Model NO. | TB754 |
General Data | |
Tractor Power | 75hp |
Chassis Type | TB chassis |
Drive method | 4WD |
Overall dimension（L*W*H）mm | 4050×1795×2630 |
Wheel tread (mm) | front 1050,1150, 1250; rear1000~1300 |
Wheel base (mm) | 2010 |
Min Ground clearance (mm) | 390 |
Min service weight (kg) | 2825 |
Engine | |
Diesel engine | Yangdong 4105. China Emission Stage II |
Type | inline, direct injection, water cooled |
Intake method | turbocharged |
Engine power | 55kW |
Fuel | diesel |
Hydraulic system/working Part | |

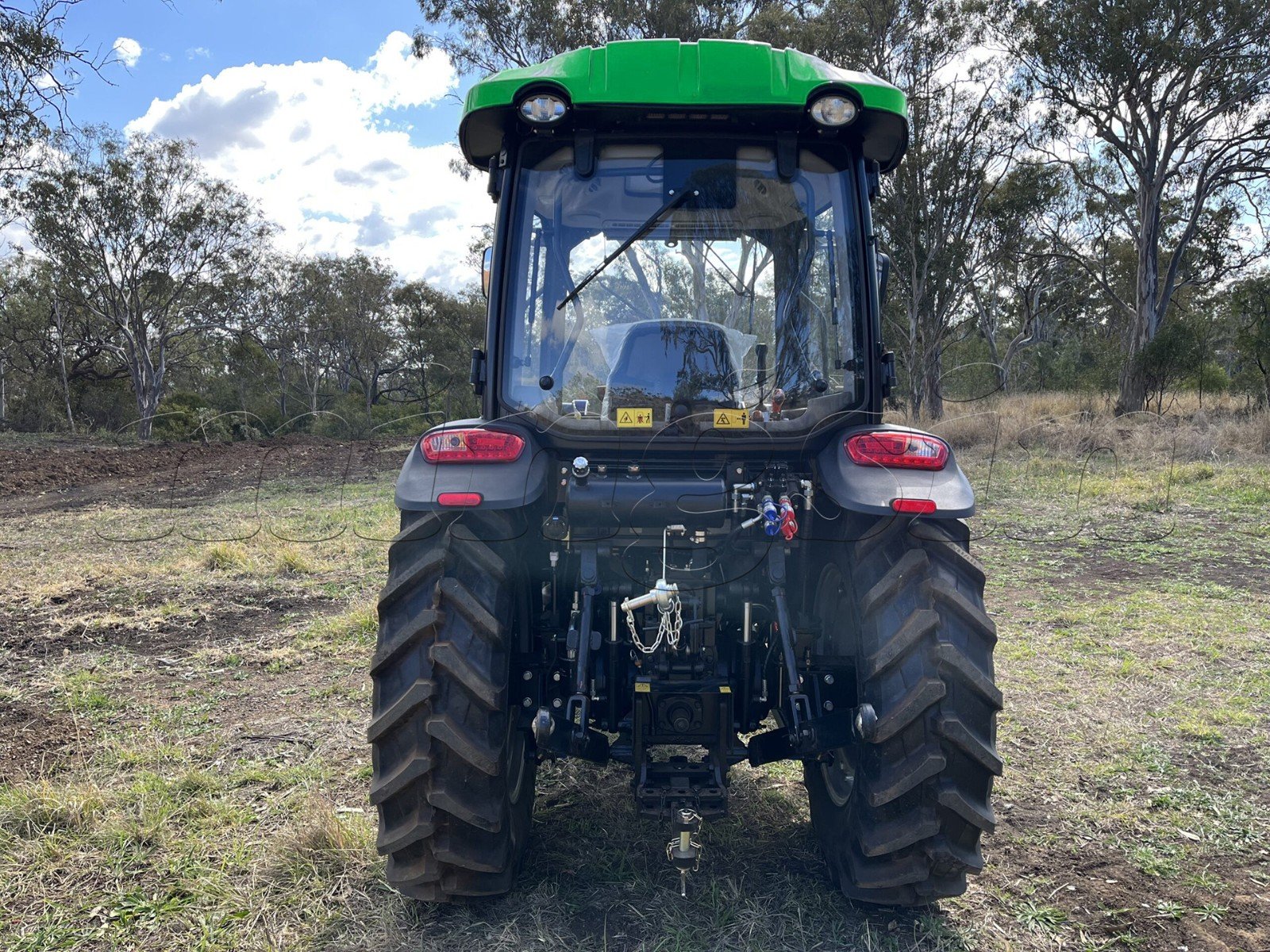

Suspension type | three point linkage, CAT II |
Hydraulic output | two group of hydraulic; Options: 3 groups |
Max traction power | ≥16.5kN |
Max lifting power | ≥12.4kN |
Rear PTO speed | 540/1000rpm |
PTO splines | 6 |
Travelling system | |
Steering | hydraulic steering |
Transmission | gearshift 12F+12R |
Clutch | dry type, dual stage |
Brake | oil-immersed |
Tire size | Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30 |
Theoretical speed | Forward: 2.46-32.73km/h |
