· 8F+2R or 8F+8R Transmission: Smooth shifting for versatile speed control.
· Quick-Shifting Shuttle System: Effortlessly switch between forward/reverse.
· Hydraulic Power Steering: Lightweight design for maneuverability.
· Anti-Rollover Safety Frame: Enhanced driver protection.
· Optional Hydraulic Outputs: Compatible with diverse farm implements.
· Reinforced TE Chassis: Built for heavy-duty tasks and longevity.
· Compact Design: Small turning radius for tight spaces.
· High Traction: Ideal for plowing, mowing, and loader work.

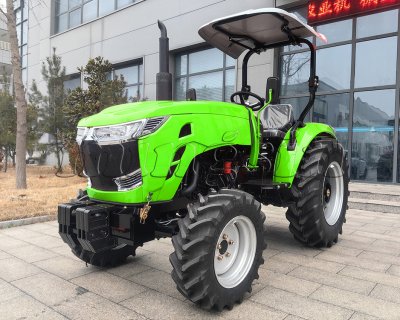

China Wheel Tractor Model TE454
The TE Chassis Tractor TE454 is engineered for demanding agricultural operations, combining rugged durability with advanced functionality. Built on a reinforced TE chassis with high-quality materials, this tractor excels in heavy-duty tasks like plowing, mowing, and loader work. Its 8 forward and 8 reverse gears provide a wide speed range (2.59–29.42 km/h), adapting seamlessly to varying terrain and implement requirements.
Key features include a quick-shifting shuttle system for instant directional changes, hydraulic power steering for effortless control, and an optional dual-speed PTO (540/1000 RPM) to power attachments like mowers and trailers. The anti-rollover safety frame and optional enclosed cab prioritize operator safety, while the compact design ensures agility in confined spaces.
Powered by a 33.1 kW JD495BT3 engine (3.17L displacement), the TE450/TE454 delivers reliable performance with low fuel consumption (≤245 g/kW·h). Choose between 4x2 (TS450) or 4x4 (TS454) drive types for enhanced traction on challenging terrain. With optional configurations like paddy tires, air brakes, and hydraulic outputs, this tractor is a versatile solution for global farming needs.
Features:
8F+8R Transmission: Smooth shifting for versatile speed control.
Quick-Shifting Shuttle System: Effortlessly switch between forward/reverse.
Hydraulic Power Steering: Lightweight design for maneuverability.
Anti-Rollover Safety Frame: Enhanced driver protection.
Optional Hydraulic Outputs: Compatible with diverse farm implements.
Reinforced TE Chassis: Built for heavy-duty tasks and longevity.
Compact Design: Small turning radius for tight spaces.
High Traction: Ideal for plowing, mowing, and loader work.
Technical Specifications:
Item | Unit | Parameters | ||
Tractor body | Model | / | TE454 | |
Type | / | 4×2 or 4×4 wheeled tractor | ||
Purpose | / | Farm work, transportation | ||
Overall dimensions (LxWxH) | mm | 3350×1610×1900 | ||
Axle distance or track ground length | mm | 1870 | ||
Wheelbase (front/rear) or track gauge | mm | 1000~1300/1000~1300 | ||
Wheelbase adjustment (front/rear) | / | Front wheels stepwise adjustable/rear wheels stepless adjustable | ||
Minimum ground clearance | mm | 330 | ||
Minimum useable mass | kg | 1214 | ||
Mass of front axle/mass of rear axle (without counterweight) | kg | 486/728 | ||
Maximum counterweight mass (front/rear) | kg | 30/90 | ||
Number of gears (forward/reverse) | / | 8F+2R or 8F+8F | ||
Theoretical speed in each gear | km/h | Forward:Ⅰ 2.07;Ⅱ 3.26;Ⅲ 4.95; Ⅳ 6.87; Ⅴ 9.57; Ⅵ 14.58; Ⅶ 22.87;Ⅷ 31.54 | ||
Connection between engine and clutch | / | Direct connection | ||
Starting method | / | Electric start | ||
Power output shaft power | kw | ≥18.8 | ||
Max. Traction force | kN | ≥5.9 | ||
Engine | Trademark or Brand | / | Laidong | |
Model | / | Inline, water-cooled, vertical, four-stroke | ||
Intake | / | Naturally aspirated | ||
Number of Cylinders | 缸 | 4 | ||
Calibrated Power | kw | 33.1kw | ||
Calibrated RPM | r/min | 2350 | ||
Injector Pump Model/Type | / | VE3/10E1175RLD03/Single acting plunger type | ||
Injector Model/Type | / | KBAL-P043 perforated type | ||
Injector Manufacturer | / | / | ||
Supercharger Model/Manufacturer EGR Model/Type | / | / | ||
ECU Model/Type | / | D26A-81-10 | ||
Catalytic Converter Model | / | / | ||
Intercooler Model | / | / | ||
Air Filter Model/Type | / | Oil bath type、TF500 | ||
Starter Motor Model | / | QD139 | ||
Cooling System Type | / | Forced water cooling | ||
Driver's seat | Specification Model | / | 629 | |
Suspension Type | / | Stationary | ||
Muffler | Muffler Chamber Dimensions (L x W x Thickness or Diameter x Length) | mm | φ100*453 | |
Mass | kg | 3.2 | ||
Steering, braking system | Steering System Type | / | Fully hydraulic steering | |
Steering Gear Type | / | Pendulum rotary-valve hydrostatic steering | ||
Brake System Type | / | Mechanical, hoofed | ||
Transmission system | Clutch Type | / | Single-piece, dry, single-acting/dry, double-acting | |
Transmission Type | / | (4+1)×2 composition | ||
Transmission Shift Type | / | Engaged bushing wheel shift | ||
Central Transmission Type (front/rear) | / | Spiral bevel gear | ||
Differential Transmission Type (front/rear) | / | Two planetary gears, enclosed | ||
Final Drive Type (front/rear) | / | Built-in, single-stage spur gears | ||
Traveling system | Frame type | / | Semi-framed | |
Wheel type | Tire (Front/Rear) | / | 6.00-16/9.5-24;650-16/11.2-24 | |
Air pressure(Front/Rear) | kpa | Field: 120/150 Transportation: 150/180 | ||
Material of wheel rim | / | Q215 | ||
Working device | Hydraulic suspension system type | / | Semi-split | |
Suspension device type | / | Rear, three-point suspension | ||
Suspension device category | / | Class 1 | ||
Adjustment method | / | Bit adjustment | ||
Hydraulic oil pump type and model | / | Gear pump, CBN-E34 | ||
Hydraulic output device | / | Simple hydraulic output | ||
Safety valve full opening pressure | Mpa | 16±0.5 | ||
Power output shaft type | / | Rear, non-independent | ||
Number of splines on power output shaft | / | 6-tooth | ||
Outer diameter of splines on power output shaft | mm | φ35 | ||
Speed of power output shaft | r/min | 720/540 | ||
Maximum lifting force at 610 mm on the frame | kN | ≥5.0 | ||
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Designed to work seamlessly with a variety of light farmland cultivation equipment and tools, including front loaders , backhoes , trailers, hay mowers, rakes, sprayers, and rotary cultivators.

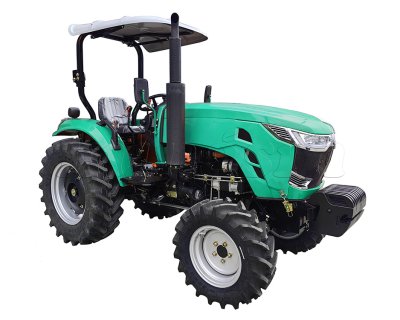

Model TY300 and TY304 compact tractor boasts a reliable, Laidong diesel engine, a dry-friction, single-disc, dual-stage clutch for smooth operation, and constant-mesh gear engagement. It features responsive hydraulic steering and a Category I/II three-point hitch. The rear-mounted, semi-independent PTO offers speeds of 540/760 RPM or 540/1000 RPM, and includes dual hydraulic outputs for versatile implement use.
