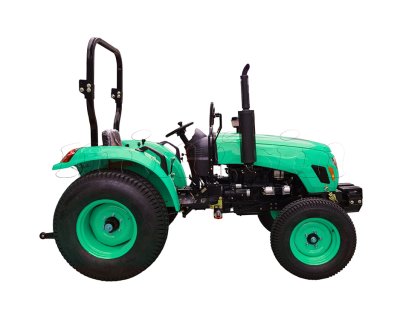

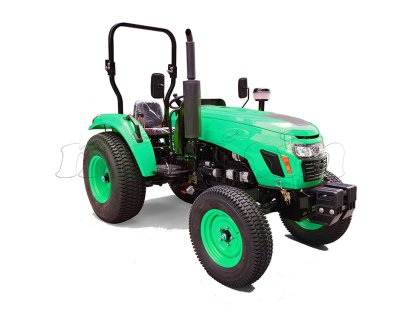

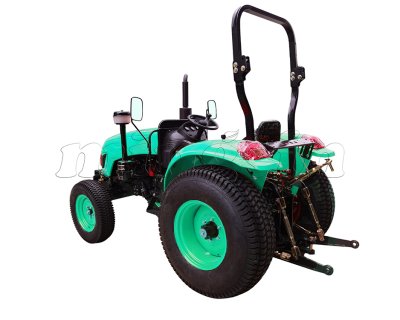

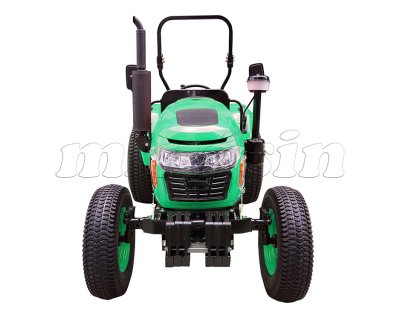

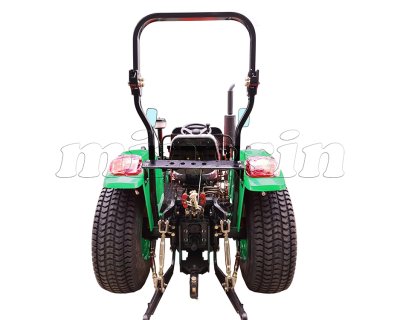

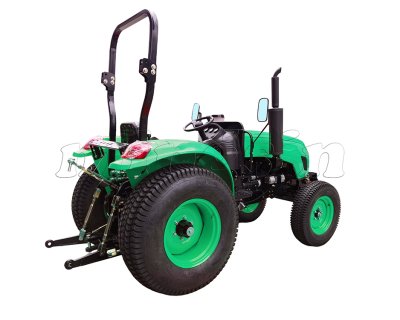

The TE Chassis Tractor TE454 with turf tires feature a wide, shallow tread design that spreads the tractor’s weight more evenly, reducing ground pressure and preventing damage to grass or soft soil. This makes the TE 45HP tractor perfect for landscaping, lawn mowing, and property maintenance where surface protection is critical.
Additionally, the TE axle provides strong traction and efficient power transmission, while the turf tires allow for excellent maneuverability and minimal surface disruption. Together, they ensure both productivity and preservation of the terrain.
The TE Chassis Tractor TE454 with turf tires feature a wide, shallow tread design that spreads the tractor’s weight more evenly, reducing ground pressure and preventing damage to grass or soft soil. This makes the TE 45HP tractor perfect for landscaping, lawn mowing, and property maintenance where surface protection is critical.
Additionally, the TE axle provides strong traction and efficient power transmission, while the turf tires allow for excellent maneuverability and minimal surface disruption. Together, they ensure both productivity and preservation of the terrain.
Pairing a 45-horsepower TE axle tractor with turf tires is an excellent choice for users who need powerful performance without damaging delicate surfaces. The TE chassis offers reliable stability and smooth operation, and when combined with turf tires, it becomes ideal for work on lawns, parks, sports fields, and golf courses.
It could provide you different range of speed with the transmission with 8 forward gears and 8 reverse gears for your different tasks. With the high range for travel speed, medium range for mowing and low range for hard-pull applications and loader work, you’ll always have the power you need for the task at hand. You could make a proper gear selection in a wide speed range according to the changes of circumstances, the function of different farm implements, the changing of speed, undulating of the ground, which makes full use of the performance of the power system and meets your requirements better.
Easily change direction of travel with the quick-shifting -shuttle system. Shift from forward to reverse in different speeds without stopping. You’ll greatly increase loader work productivity and make your entire to-do list easier.
Compact body design, small turning radius , more lightweight and flexible hydraulic power steering, makes it easy to operate and greatly reduces the your fatigue.
Anti-rollover safety frame can effectively ensure the safety of the driver when the tractor rollover. It also can be equipped with fully sealed cab.
Chassis designed in mature technology gives you an excellent durable performance.
Hydraulic output is optional, making your tractor match more kinds of farm machinery and implements, to meet your different demands.
Technical Specifications:
Item | Unit | Parameters | ||
Tractor body | Model | / | 454 | |
Type | / | 4×2 or 4×4 wheeled tractor | ||
Purpose | / | Farm work, transportation | ||
Overall dimensions (LxWxH) | mm | 2900×1600×1500 | ||
Axle distance or track ground length | mm | 1930 | ||
Wheelbase (front/rear) or track gauge | mm | 1000~1300/1000~1300 | ||
Wheelbase adjustment (front/rear) | / | Front wheels stepwise adjustable/rear wheels stepless adjustable | ||
Minimum ground clearance | mm | 330 | ||
Minimum useable mass | kg | 1214 | ||
Mass of front axle/mass of rear axle (without counterweight) | kg | 486/728 | ||
Maximum counterweight mass (front/rear) | kg | 30/90 | ||
Number of gears (forward/reverse) | / | 8F+2R or 8F+8F | ||
Theoretical speed in each gear | km/h | Forward:Ⅰ 2.07;Ⅱ 3.26;Ⅲ 4.95; Ⅳ 6.87; Ⅴ 9.57; Ⅵ 14.58; Ⅶ 22.87;Ⅷ 31.54 | ||
Connection between engine and clutch | / | Direct connection | ||
Starting method | / | Electric start | ||
Power output shaft power | kw | ≥18.8 | ||
Max. Traction force | kN | ≥5.9 | ||
Engine | Trademark or Brand | / | Laidong | |
Model | / | Inline, water-cooled, vertical, four-stroke | ||
Intake | / | Naturally aspirated | ||
Number of Cylinders | 缸 | 4 | ||
Calibrated Power | kw | 33.1kw | ||
Calibrated RPM | r/min | 2350 | ||
Injector Pump Model/Type | / | VE3/10E1175RLD03/Single acting plunger type | ||
Injector Model/Type | / | KBAL-P043 perforated type | ||
Injector Manufacturer | / | / | ||
Supercharger Model/Manufacturer EGR Model/Type | / | / | ||
ECU Model/Type | / | D26A-81-10 | ||
Catalytic Converter Model | / | / | ||
Intercooler Model | / | / | ||
Air Filter Model/Type | / | Oil bath type、TF500 | ||
Starter Motor Model | / | QD139 | ||
Cooling System Type | / | Forced water cooling | ||
Driver's seat | Specification Model | / | 629 | |
Suspension Type | / | Stationary | ||
Muffler | Muffler Chamber Dimensions (L x W x Thickness or Diameter x Length) | mm | φ100*453 | |
Mass | kg | 3.2 | ||
Steering, braking system | Steering System Type | / | Fully hydraulic steering | |
Steering Gear Type | / | Pendulum rotary-valve hydrostatic steering | ||
Brake System Type | / | Mechanical, hoofed | ||
Transmission system | Clutch Type | / | Single-piece, dry, single-acting/dry, double-acting | |
Transmission Type | / | (4+1)×2 composition | ||
Transmission Shift Type | / | Engaged bushing wheel shift | ||
Central Transmission Type (front/rear) | / | Spiral bevel gear | ||
Differential Transmission Type (front/rear) | / | Two planetary gears, enclosed | ||
Final Drive Type (front/rear) | / | Built-in, single-stage spur gears | ||
Traveling system | Frame type | / | Semi-framed | |
Wheel type | Tire (Front/Rear) | / | 6.00-16/9.5-24;650-16/11.2-24 | |
Air pressure(Front/Rear) | kpa | Field: 120/150 Transportation: 150/180 | ||
Material of wheel rim | / | Q215 | ||
Working device | Hydraulic suspension system type | / | Semi-split | |
Suspension device type | / | Rear, three-point suspension | ||
Suspension device category | / | Class 1 | ||
Adjustment method | / | Bit adjustment | ||
Hydraulic oil pump type and model | / | Gear pump, CBN-E34 | ||
Hydraulic output device | / | Simple hydraulic output | ||
Safety valve full opening pressure | Mpa | 16±0.5 | ||
Power output shaft type | / | Rear, non-independent | ||
Number of splines on power output shaft | / | 6-tooth | ||
Outer diameter of splines on power output shaft | mm | φ35 | ||
Speed of power output shaft | r/min | 720/540 | ||
Maximum lifting force at 610 mm on the frame | kN | ≥5.0 | ||
