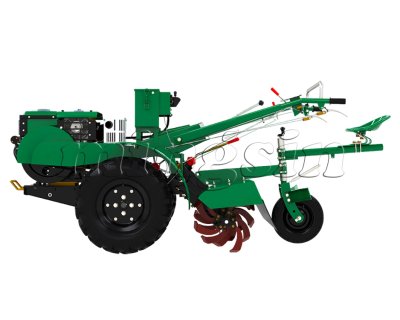

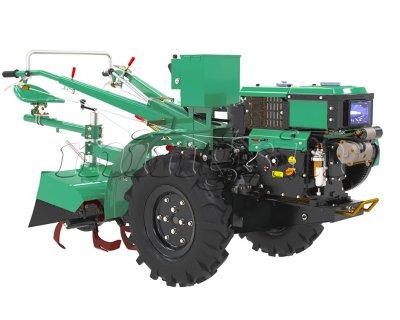

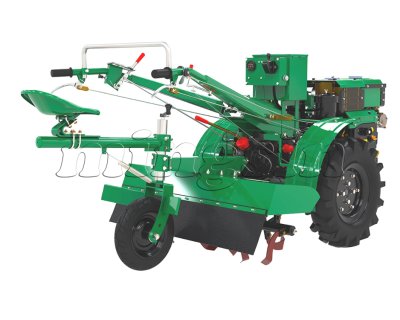

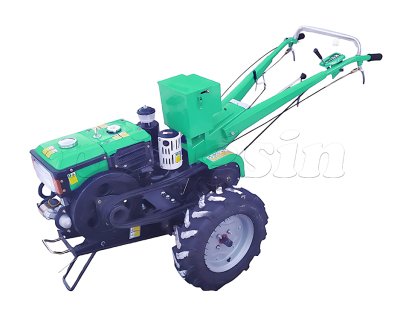

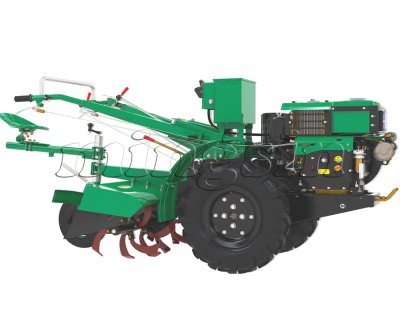

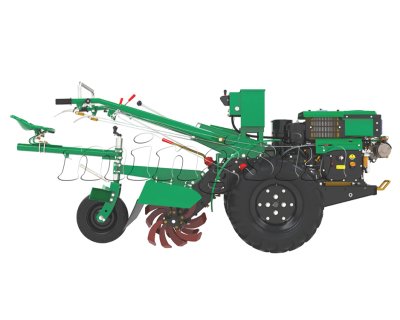

The Mingsin Two-wheel Tractor model MX101D is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX101D two-wheel tractor is more powerful and efficient than MX-81. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination.
It can be used for plowing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Product Description: Fighter MX101D Heavy-Duty Two-wheel Tractor
The MX101D two-wheel tractor is a robust 11 HP diesel-powered tiller designed for intensive agricultural operations. As a heavy-duty solution surpassing entry-level models, it delivers multifunctional performance beyond basic soil cultivation with rotary tillers.
Key Operational Capabilities:
· Plowing & soil cultivation (including virgin land)
· Seedbed preparation for cereals and vegetables
· Crop maintenance (hilling/ridging)
· Grass mowing & harvesting
· Cargo transportation (with trailer attachment)
Technical Specifications:
1. Transmission System: (3+1) × 2-stage gear transmission with dual belt drive
2. Power Unit:
· R190ANE single-cylinder liquid-cooled diesel engine
· 11 HP rated output
· Sustained torque performance (maintains traction force even at 1,000 RPM)
3. PTO Configuration:
· Belt-driven PTO (flywheel pulley)
· Splined shaft PTO (primary transmission input)
· Rear gear-driven PTO (active rotary tiller drive)
4. Maneuverability:
· Independent differential locks (enables zero-radius turns)
· 12" agricultural wheels
Standard Package Includes:
· Electric starter system
· 100 cm working width rotary tiller
· Operator seat
· Comprehensive wheel set
This industrial-grade implement combines Chinese engineering with German transmission technology, offering professional farmers enhanced operational versatility and durability in field management tasks.
Technical Specifications:
Model | Unit | MX101D Electric starting type two-wheel tractor | |
Structure weight | Without rotavator | kg | 262 |
With rotavator | 319 | ||
Working weight (with rotavator) | kg | 331 | |
Overall dimensions (LxWxH) | mm | 2170x845 x 1150 | |
Number of blades | PCS | 14 | |
Rototilling width | mm | 700 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forward | Km/h | 1.98, 3.08, 4.98, 8.04, 12.49, 20.2 |
Reverse | 1.53, 6.18 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 680~740(adjustable) | |
Min. ground clearance | mm | 210 | |
Min. turning radius | m | 0.71 (without rotavator) | |
Model of engine | R190AN | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 90*90 | |
Total displacement | L | 0.573 | |
Compression ratio | 21:01 | ||
Turing speed of crankshaft | rpm | 2300 | |
1-hour rated output | KW/hp | 7.7/10.5 | |
12-hour rated output | KW/hp | 7.0/9.5 | |
Specific fuel consumption | g/kw.h | ≤273.4 | |
Specific lube oil consumption | g/kw.h | ≤2.72 | |
Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional) | Anti-skid steel wheel Model 100-640 | ||
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
The 12HP model MX121D electric starting type power tiller is a dual-purpose machine designed for both traction and drive. Its key features include a simple and compact structure, high reliability, extended service life, user-friendly operation, substantial power output, lightweight design, and excellent cross-country mobility. This tiller is highly adaptable for use in paddy fields, dry fields, orchards, vegetable gardens, and mildly sloped terrain. When equipped with appropriate implements, it can perform plowing, rotary tilling, harrowing, harvesting, drilling, ditching, and transportation. Furthermore, it can be utilized as a stationary power source for tasks such as drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, and fodder cutting.
The MX770 is a robust and versatile multi-functional machine powered by a 418CC diesel engine, featuring an all-gear drive transmission and 4 forward & 4 reverse gears. Its adjustable handlebar with 240° orientation and hydraulic disc brake for steering assistance ensure ease of operation. Ideal for various agricultural tasks, the MX770 offers reliable performance and adaptability.
As a flagship model in the heavy-duty class (400 kg category), the Mingsin brand model MX111D Two-wheel Tractor stands out with unparalleled versatility through its comprehensive range of compatible attachments. This workhorse features multiple PTO configurations - gear-driven, splined shaft, and dual belt-driven systems (engine/reducer pulleys) - enabling year-round agricultural operations across all seasons through modular implement integration.
The Mingsin Brand Walking Tractor for Sale in China Model MX81D is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX81D walking tractor is more powerful and efficient than MX61. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plowing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
