Goods Description

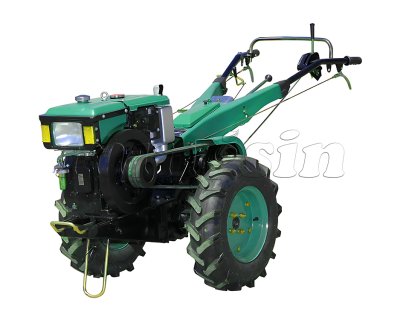

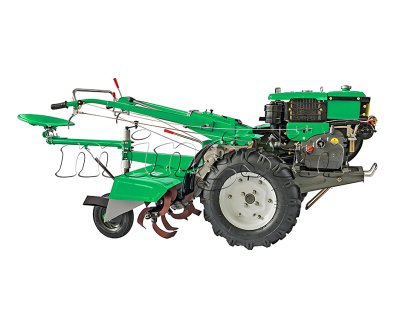

The Mingsin Brand 10hp China walking tractor is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX101 walking tractor is more powerful and efficient than MX-81. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination.
It can be used for plowing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Walking Tractor Model MX101 – Powerful, Versatile, and Compact
The 10HP China walking tractor is a robust, versatile agricultural machinery designed to tackle a wide range of farming tasks with precision and efficiency. Combining compact design with powerful diesel-engine performance, this walk-behind tractor (commonly known as a power tiller or two-wheel tractor) is ideal for small to medium-scale farmers seeking reliable soil cultivation, plowing, tilling, and transportation solutions. Built for durability, it supports multiple attachments—from rotary tillers and plow blades to trailers—making it adaptable for diverse terrains and crops. With fuel-efficient operation, easy maneuverability, and low maintenance, this Chinese-engineered machine delivers exceptional value for cost-conscious farmers and agricultural professionals worldwide. Perfect for rice paddies, orchards, or vegetable farms, the 10HP model balances power, affordability, and versatility in one compact package.
Parameters:
Model | Unit | MX-101 | |
Structure weight | Without rotavator | kg | 262 |
With rotavator | 319 | ||
Working weight (with rotavator) | kg | 331 | |
Overall dimensions (LxWxH) | mm | 2170x845 x 1150 | |
Number of blades | PCS | 14 | |
Rototilling width | mm | 700 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forward | Km/h | 1.98, 3.08, 4.98, 8.04, 12.49, 20.2 |
Reverse | 1.53, 6.18 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 680~740(adjustable) | |
Min. ground clearance | mm | 210 | |
Min. turning radius | m | 0.71 (without rotavator) | |
Model of engine | R190AN | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 90*90 | |
Total displacement | L | 0.573 | |
Compression ratio | 21:01 | ||
Turing speed of crankshaft | rpm | 2300 | |
1-hour rated output | KW/hp | 7.7/10.5 | |
12-hour rated output | KW/hp | 7.0/9.5 | |
Specific fuel consumption | g/kw.h | ≤273.4 | |
Specific lube oil consumption | g/kw.h | ≤2.72 | |
Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional) | Anti-skid steel wheel Model 100-640 |
