GN121 walking tractor are traction drive dual -purpose walking tractor ,this machine is widely used in the rice paddy fields, upland plains, mountainous and hilly areas, coupled with the corresponding farm machinery for plowing rotary tillage harrowing ,planting ,harvesting ,pumping ,transportation, spraying pesticides and so on.
For this model can work with independent seat assembly when rotary land or plow land or other work.
The tractor was created with the expectation of a European market, passed laboratory tests and certification in the European Union.
The six-speed forward and reverse MSD200 gearbox, which is designed for tractors to withstand the extreme loads that the single-cylinder power engine can deliver

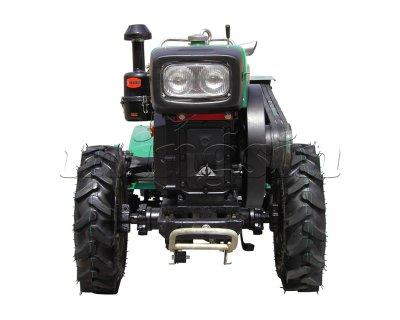

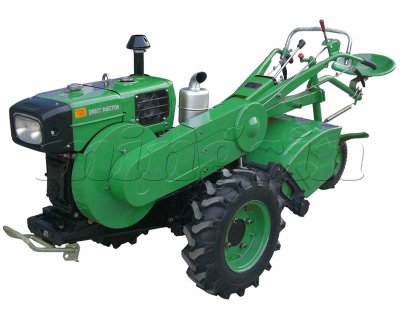

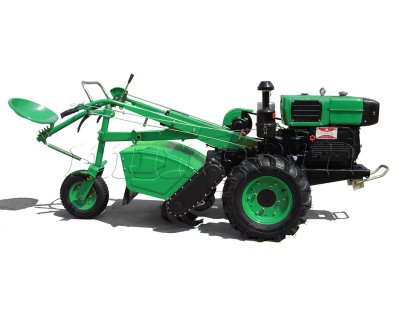

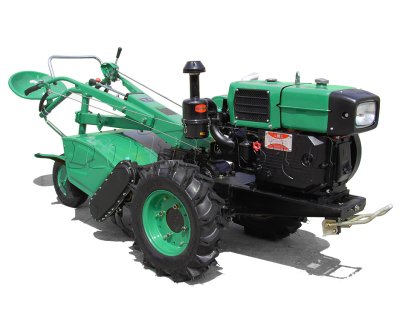

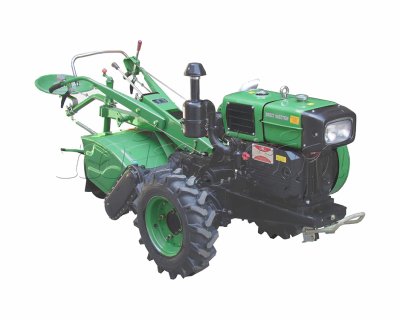

GN type GN121 Power Tiller / Walking Tractor
The GN type GN121 Power Tiller / Walking Tractor by Mingsin is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. It is powerful and efficient.
It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plowing, rototilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached.
In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
The GN121 Power Tiller / Walking Tractor is a robust and adaptable agricultural machine designed for diverse farming tasks. Built with a durable chassis and efficient power output, it ensures productivity across various terrains and agronomic conditions. Ideal for small to medium-sized farms seeking reliability and performance.
Key Features of GN121 Power Tiller / Walking Tractor:
l Proven Chassis Design: Optimized for stability and durability in demanding farming environments.
l Efficient Power Output: Delivers consistent performance for plowing, tilling, and hauling.
l Versatile Applications: Compatible with multiple attachments (e.g., trailers, harvesters, pumps).
l Ergonomic Controls: User-friendly operation for extended working comfort.
l Low Maintenance: Engineered for longevity and easy servicing.
l Adaptable Configuration: Customizable for regional agronomic needs (e.g., adjustable wheelbase).
Technical Specifications:
MODEL | GN121 | |
Overall dimensions:(L*W*H) | 2950*980*1240mm | |
Wheel tread | 570,630,690,750,810mm | |
Tyres | 6.00-12 | |
Ground clearance | 210mm | |
Working weight (with rotary tiller) | 500kg | |
Speed Forward | 1.39, 2.47, 4.15, 5.14, 9.12, 15.30 | |
(km/h) Reverse | 1.10, 4.10 | |
Turning speed | Low:199; High:250 | |
Rotary tiller | Width | 600mm |
Number of blades | 18pcs | |
Model | S195N | |
Type | Single cylinder,4-stroke,horixontal,water-cooled,diesel | |
Cooling mode | Condenser (Radiator) | |
Rated power | 9.7kw | |
Engine | Rated speed | 2000rpm |
Fuel efficiency: | ≤244.8gl/kw.hr | |
Net weight | 150kg | |
Main farm implements | 1)Anti-skid steel wheel; | |
2)Double-plough (optional) | ||
3)Trailer(optional) | ||
Packing | Case dimensions | 116*108*108cm |
N.W/G.W.: | 500/540KG | |
Conveyance: | Qty/20' FCL.: | 20pcs |
Qty/40'(HQ) FCL.: | 40pcs(packing mud wheel inside box) 48pcs(mud wheels | |
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Goods Description The Mingsin Brand 10hp China walking tractor is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX-101 walking tractor is more powerful and efficient than MX-81. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plowing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
The 12HP model MX121D electric starting type power tiller is a dual-purpose machine designed for both traction and drive. Its key features include a simple and compact structure, high reliability, extended service life, user-friendly operation, substantial power output, lightweight design, and excellent cross-country mobility. This tiller is highly adaptable for use in paddy fields, dry fields, orchards, vegetable gardens, and mildly sloped terrain. When equipped with appropriate implements, it can perform plowing, rotary tilling, harrowing, harvesting, drilling, ditching, and transportation. Furthermore, it can be utilized as a stationary power source for tasks such as drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, and fodder cutting.
The 12HP MX121 power tiller is a dual-purpose machine designed for both traction and drive. Its key features include a simple and compact structure, high reliability, extended service life, user-friendly operation, substantial power output, lightweight design, and excellent cross-country mobility. This tiller is highly adaptable for use in paddy fields, dry fields, orchards, vegetable gardens, and mildly sloped terrain. When equipped with appropriate implements, it can perform plowing, rotary tilling, harrowing, harvesting, drilling, ditching, and transportation. Furthermore, it can be utilized as a stationary power source for tasks such as drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, and fodder cutting.
As a flagship model in the heavy-duty class (400 kg category), the Mingsin brand model MX111D Two-wheel Tractor stands out with unparalleled versatility through its comprehensive range of compatible attachments. This workhorse features multiple PTO configurations - gear-driven, splined shaft, and dual belt-driven systems (engine/reducer pulleys) - enabling year-round agricultural operations across all seasons through modular implement integration.
