The 12HP MX121 power tiller is a dual-purpose machine designed for both traction and drive.

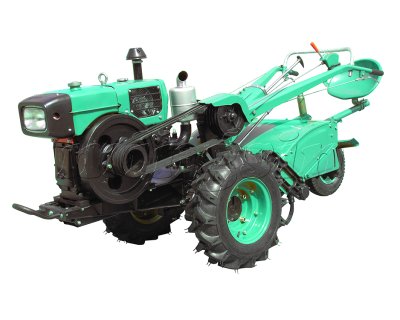

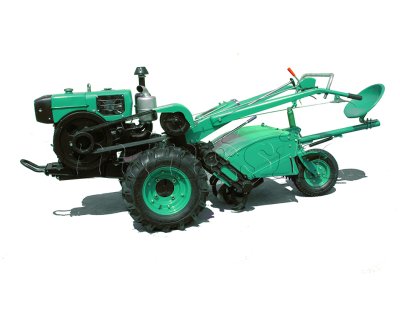

Mingsin MX121 12HP Dual-Function Power Tiller
Compact Power for Versatile Farming
The Mingsin MX121 12HP power tiller combines traction and drive capabilities in one rugged, lightweight design. Engineered with a simplified structure and corrosion-resistant components, this China-made agricultural machine delivers reliable performance across paddy fields, orchards, slopes, and dry farmland.
Key Features:
12HP Diesel Engine: High torque output for plowing, tilling, drilling, and 10+ farming tasks with compatible attachments
Multi-Terrain Mastery: Optimized for mud, loose soil, and uneven terrain with enhanced cross-country stability
Dual-Service Flexibility: Functions as both mobile equipment and stationary power source for irrigation, milling, and crop processing
Low-Maintenance Design: Durable gearbox, ergonomic controls, and weatherproof construction for extended service life
Ideal For:
✓ Small-scale rice cultivation | ✓ Hillside orchard management
✓ Vegetable plot maintenance | ✓ Grain threshing & fodder cutting (with attachments)
Technical Highlights:
• 20% lighter chassis than conventional models
• Horizontal transmission system for balanced weight distribution
• Compatible with plows, trailers, harvesters, pumps, and snow-clearing implements
Why Choose MX121?
A cost-effective upgrade from manual labor, this model reduces operational time while maximizing output per hectare. Backed by Mingsin’s 3-year warranty and global spare parts network.
Optimized for SEO/Listings:
This summary emphasizes keyword clusters like "power tiller," "China-made agricultural machinery," and "12HP diesel engine" while maintaining scannable formatting for enhanced search visibility.
Technical Specifications:
Model | Unit | MX121 | |
Structure weight | Without rotavator | kg | 353 |
With rotavator | 458 | ||
Working weight (with rotavator) | kg | 493 | |
Turning speed of rototilling shaft | rpm | 188/300 | |
Overall dimensions (LxWxH) | mm | 2680 x 960 x 1250 | |
Number of blades | PCS | 18 | |
Rototilling width | mm | 600 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forward | Km/h | 1.4,2.5,4.1,5.3,9.4,15.3 |
Reverse | 1.1, 3.8 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 800, 740, 640, 580(normally use 800) | |
Min. ground clearance | mm | 185 | |
Min. turning radius | m | 0.9（with no rotavator） | |
Model of engine | ZS195N | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 95*115 | |
Total displacement | L | 0.815 | |
Compression ratio | 20:01 | ||
Turing speed of crankshaft | rpm | 2000 | |
1-hour rated output | KW/hp | 9.3/12.65 | |
12-hour rated output | KW/hp | 8.3/11.29 | |
Specific fuel consumption | g/kw.h | ≤258 | |
Specific lube oil consumption | g/kw.h | ≤2.04 | |
Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional) | Anti-skid steel wheel Model 100-640 | ||
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
As a flagship model in the heavy-duty class (400 kg category), the Mingsin brand model MX111D Two-wheel Tractor stands out with unparalleled versatility through its comprehensive range of compatible attachments. This workhorse features multiple PTO configurations - gear-driven, splined shaft, and dual belt-driven systems (engine/reducer pulleys) - enabling year-round agricultural operations across all seasons through modular implement integration.
Good Description: The Mingsin Brand 8hp walking tractor is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX81 walking tractor is more powerful and efficient than MX61. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plowing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
The Mingsin MX101D dual-function two-wheel tractor combines exceptional traction power with multi-drive capabilities, delivering superior agricultural performance. Engineered with a horizontal gearbox for improved weight distribution, this upgraded model outperforms the MX-81 series in both power output and operational efficiency.
Good Description: The Mingsin Brand power tiller MX111 is of dual-function type that can be used as a means of traction as well as drive. Compared to the MX101, it has the speed changing lever of high speed and low speed. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plough rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. If suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationery power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on. Supplying with Walking Tractor price consultation, it is one of the leading China manufacturers and suppliers, with 12hp walk behind tractor for sale, please feel free to wholesale cheap products from our factory.
