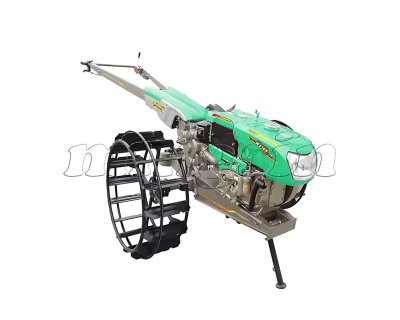

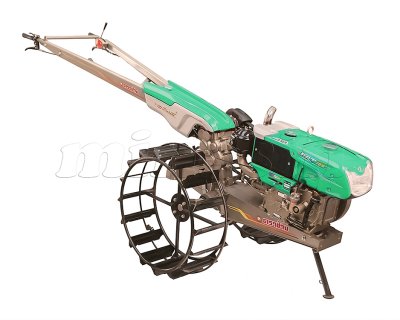

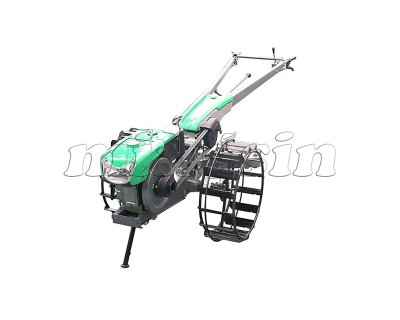

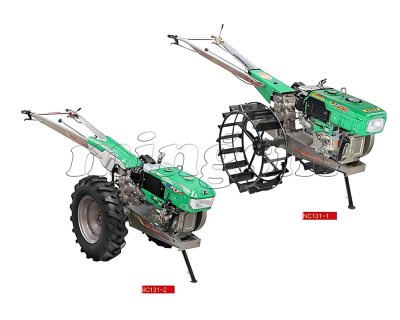

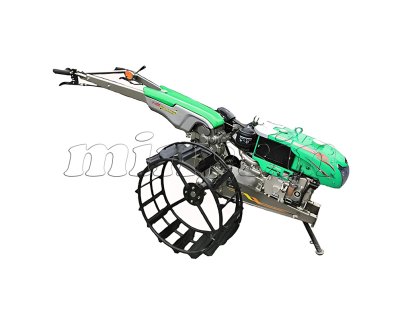

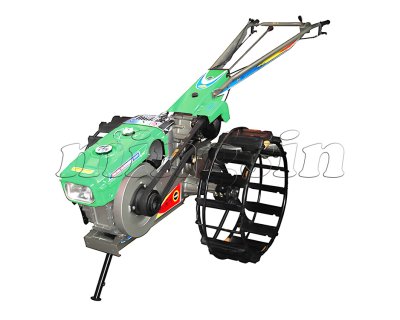

Introducing the versatile and powerful Kubota type NC131 walking tractor, an indispensable tool for modern farming operations, especially for the paddy field. Designed with precision engineering and built to endure the harshest agricultural environments, this tiller offers exceptional performance and reliability.
1. Power: 7-12HP
2. Compact structure, nice appearance.
3. Reliable performance in shift, clutch, brake and steering system.
4. The tractor is widely used for ploughing, raking, spraying, irrigation, drainage, planting, reaping, ditching and transportation etc.
Walking tractors are dual-function product that can be operated as the towing machine as well as driving machine. They have simple and compact structure, light weight, long service life, reliable performance, easy operation and good running ability, also they are be assemble a seating equipment for driver and equipped with lighting equipment can drive at night.
The products are suitable for operating in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can finish many operations such as ploughing, cultivating, harrowing harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing, seeding, milling, fooder cutting and so on.
The walking tractor can drive by the power of the internal combustion engine through the transmission system, and the driving wheels that obtain driving torque then give the ground a small, backward horizontal force (tangential force) through the tire pattern and tire surface. This reaction force is to push the tractor forward Driving force for driving (also called position propulsion). The structure is simple, the power is small, and it is suitable for small arable land. The driver supports the handrail frame to control the operating mechanism, towing or driving the supporting agricultural tools to perform the operation."
Technical Specifications:
| NC131 Walking Tractor | ||
| Engine | Type | diesel engine |
| power | 7-12 hp | |
| Clutch type | Dry type multi disc clutch | |
| Steering system | Compress steering type | |
| Brake system | Small-scale braking | |
| Transmission system | Fixed sliding positioning | |
| Transmission ratio | Low gear 1 st gear | 44:01:00 |
| Mid gear 2 nd gear | 23:01 | |
| High gear 3 rd gear | 8:01 | |
| Backward gear | 56:01:00 | |
| Tractor speed (Engine speed: 2400/rpm rubber size :600-12 , length:600mm) | Low gear 1 st gear | 4.3km/h |
| Mid gear 2 nd gear | 8.2km/h | |
| High gear 3 rd gear | 23.5km/h | |
| Backward gear | 3.4km/h | |
| diameter of towing pin | 26mm | |
| V-belt | length | 1981 |
| quantity | 2 | |
| diameter of engine pulley | 140mm | |
| diameter of transmission pulley | 180mm | |
| axle | type | Hexagonal axle |
| size | 44.5mm | |
| rubber tire | type | Special tire for tractor |
| size | Dec-00 | |
| pressure | 46pound/sq.inh | |
| lubricant in transmission | type | SSAE No.90 |
| capacity | 5.5-6L | |
| Tractor weight (excluding the engine) | 210Kg | |
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
The Mingsin Brand 10hp China walking tractor is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX101 walking tractor is more powerful and efficient than MX81. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plowing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Discover the 15HP Dongfeng type MX151D electric start power tiller, a powerful and versatile agricultural machine designed for plowing, tilling, and transportation. Its reliable engine, user-friendly operation, and durable structure make it an excellent choice for farmers.
As a flagship model in the heavy-duty class (400 kg category), the Mingsin brand model MX111D Two-wheel Tractor stands out with unparalleled versatility through its comprehensive range of compatible attachments. This workhorse features multiple PTO configurations - gear-driven, splined shaft, and dual belt-driven systems (engine/reducer pulleys) - enabling year-round agricultural operations across all seasons through modular implement integration.
18-22hp Two-wheel tractors model MX181D-MX201D is the dual-function type that can be used as a means of traction as well as drive. With its strong and heavy type chassis, it is suitable for the paddy and dry field with bigger field areas and long working time. Simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plough, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
