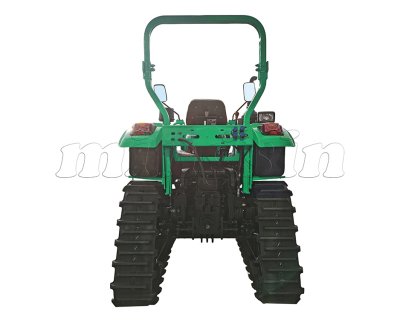

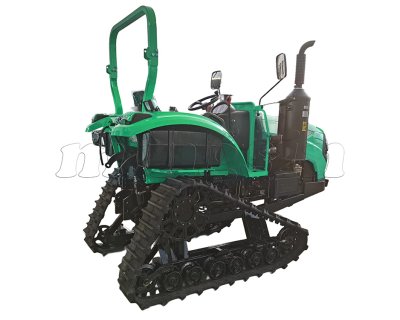

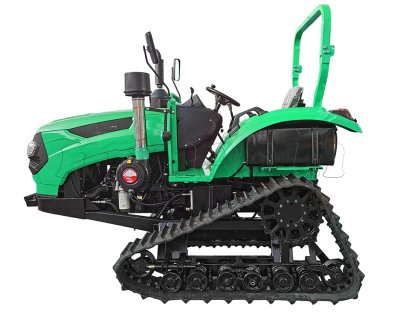

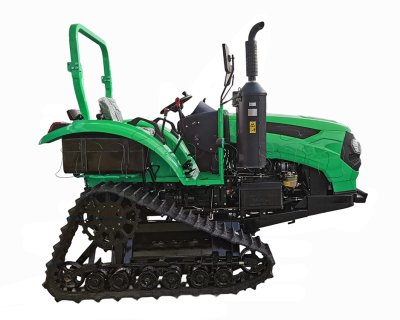

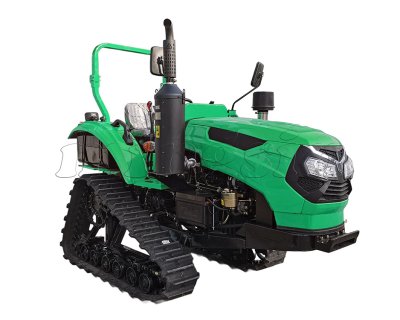

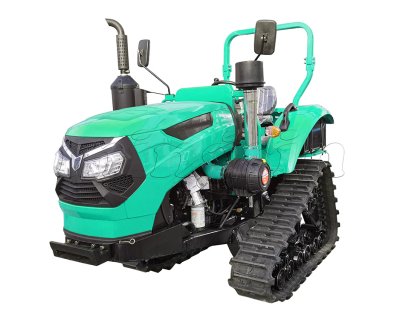

The MS1002 100HP mini crawler tractor features a powerful diesel engine, delivering reliable performance for demanding agricultural tasks. Its rubber track system ensures excellent traction and stability, minimizing soil compaction and enhancing maneuverability on soft or uneven ground. The tractor is equipped with a user-friendly control system, comfortable operator cabin, and versatile attachments compatibility, making it an ideal choice for modern farming operations.
The MS1002 100HP mini crawler tractor is engineered to meet the diverse needs of contemporary agriculture. Its high-performance diesel engine provides ample power for various field operations, while the rubber track design offers superior grip and reduced ground pressure, protecting soil structure. The tractor's ergonomic controls and adaptable interface allow for seamless integration with multiple implements, enhancing productivity and efficiency. Whether navigating through paddy fields, orchards, or rugged terrains, the MS1002 delivers consistent performance and durability.
Product Advantage
Wider rubber track makes ridding easier and smoother on rough fields.
Triangle crawler design raises minimum ground clearance to 560mm, making the tractor work in deep muddy field not stuck.
With hydraulic control planetary differential speed function, two power flow steering, drive 360°
Three-points linkage makes attach to different farm accessories.

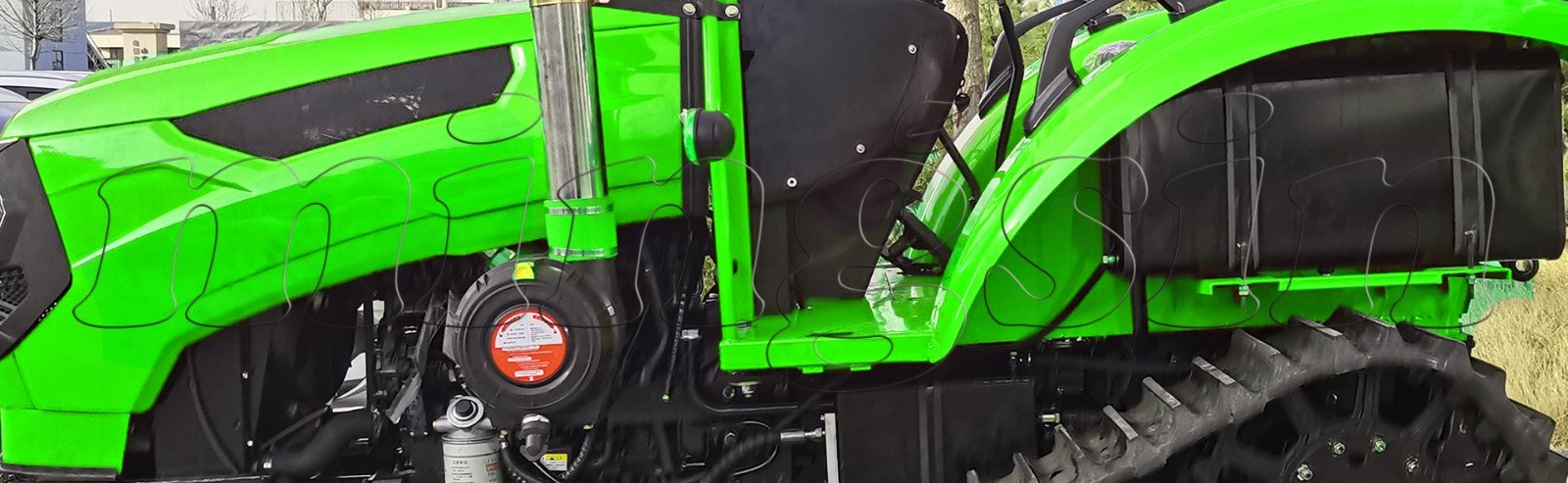

4 cylinder YTO diesel Engine, crawler tractor Power 100hp
12F+12R transmission
Open or cabin type
With wider rubber track to make more stability on hillsides, even better flotation in paddy field
Differential steering to make tractor 360° in-situ turn
High ground clearance to make the tractor easy get over in the field.
Three point linkage to attach to different attachment like rotary tiller, harrow, ditcher, etc. and front can be attached the front loader, front blade etc.
Model NO. | MS1002 |
Tractor power | 100hp |
General Data | |
Type | Crawler tractor |
Overall dimensions | 4100×1850×2980mm (to top of Rop) |
wheel base | 1400mm |
track tread | 1300mm |
track tread | 1300mm |
min ground clearance | 560 (bottom of beam) |
Min service quality | 2945Kgs |
front ballast weight | 120Kgs |
Transmission box | 12F+12R |
Main gear shift | 4 |
Auxiliary gear shift | 3×(1+1） |
Max theoretical speed | 17.24km/h |
The theoretical speed of forward speed | L:1. 22,1.80,2.92,3.84km/h |
H:5.50,8.08,13.13,17.24km/h | |
Engine Data | |
Type | Inline, four stroke, water cooled |
Manufacturer | YTO |
Intake method | Turbocharged |
Cylinder NO. | 4 |
Rated power | 73.6kW |
Engine speed | 2300r/min |
Track material | rubber |
track width | 400mm |
Working Part | |
Suspension type | Rear positioned three point linkage category II |
Group No. of hydraulic valve | 2 |
PTO speed | 540/760 r/min |
