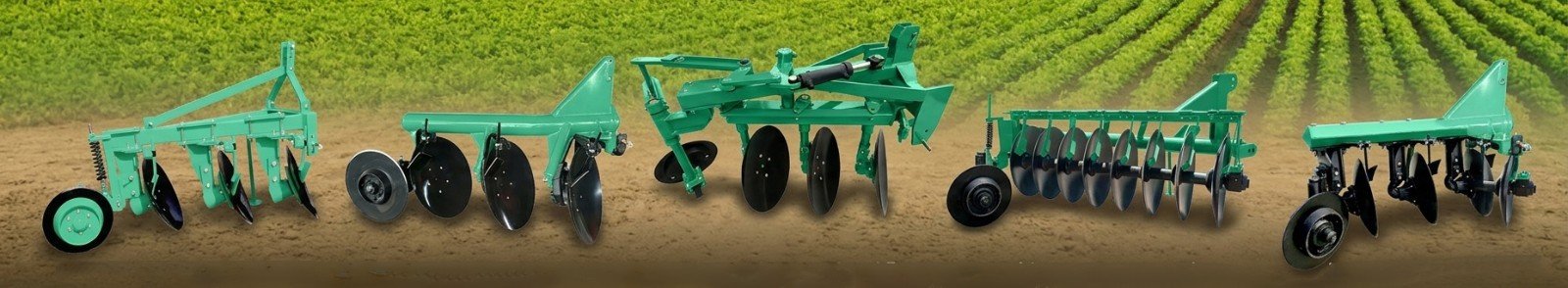

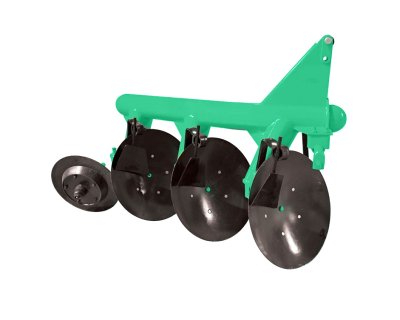

Product Highlights – Disc Plough Series
Our disc ploughs are premium primary tillage implements designed to break hard soil, cut through crop residues, and create the perfect seedbed. Key features:
Robust construction – High-strength hardened steel discs and frames for unmatched durability in rocky or heavy soils.
Efficient soil inversion & mixing – Rotating concave discs lift, turn, and crumble soil, burying weeds and organic matter.
Versatile configurations – Choose from Pipe, Fish Tail, Two‑Way, Single Way, and Paddy Field models to match your terrain and crop needs.
Adjustable cutting depth & disc angle – Adapt to different soil types and tillage requirements.
Time & labor saving – Faster tillage compared to traditional ploughs, reducing operational costs.
Easy maintenance – Simple design with accessible lubrication points and replaceable wear parts.
Available in mounted and trailed versions, with tractor power from 18 hp to 150 hp. Boost your soil health and crop yield with our reliable disc ploughs.
![]()
Disc ploughs are essential agricultural implements specifically engineered for primary tillage operations. Their core function is to break up and invert soil, creating an optimal seedbed for crop planting. Renowned for their exceptional performance in tough conditions, disc ploughs excel at breaking down hard, compacted soil, as well as cutting through crop residues and weed roots with remarkable efficiency.
The fundamental structure of a disc plough comprises a set of concave metal discs—typically crafted from high-strength hardened steel—mounted on a sturdy frame. These discs are arranged in gangs or tandem configurations, with each disc featuring independent rotation capability to adapt to uneven terrain and varying soil resistance. The number of discs and their diameter vary according to the plough’s size, type, and intended application, ensuring versatility across different farming scales.
The discs are strategically angled to facilitate smooth soil penetration as the plough is pulled forward by a tractor or other agricultural machinery. As the plough advances, the discs rotate, generating a slicing motion that lifts, turns, and crumbles the soil. This process effectively breaks up soil clods, incorporates organic matter into the soil matrix, and buries crop residues—all of which enhance soil aeration and lay the foundation for a well-prepared seedbed that supports healthy crop germination.
Disc ploughs are commonly available in two main configurations: mounted and trailed. Mounted ploughs are directly attached to the tractor’s three-point linkage, ensuring stable operation and easy maneuverability. Trailed ploughs, on the other hand, are towed behind the tractor via a hitch, making them suitable for large-scale farming operations. Many modern disc ploughs are equipped with adjustable features, allowing farmers to fine-tune the cutting depth and disc angle to accommodate diverse soil types and tillage requirements, further enhancing their adaptability.
Choosing the right disc plough depends heavily on your terrain, soil moisture, and specific tillage requirements. Whether you are managing vast grain fields, cultivating wet paddy, or working in rocky soil, we have a configuration engineered to maximize your yield and equipment longevity.
Here is an overview of our specialized disc plough series for your product portfolio.
Our Specialized Disc Plough Range

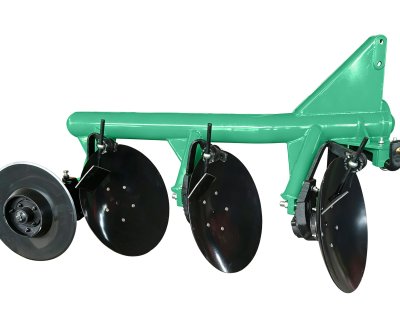

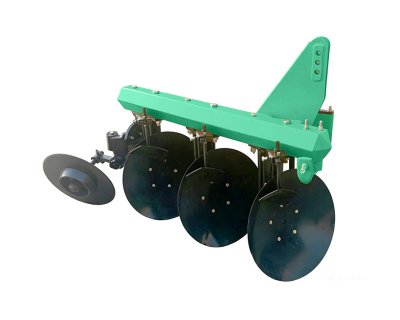

1. The Pipe Disc Plough (Heavy-Duty Tubular Frame)
![]()
Engineered for maximum structural integrity, the Pipe Disc Plough features a reinforced heavy-duty tubular frame. This design offers superior torsional rigidity, meaning it can withstand the intense stress of breaking virgin, hard, or rocky ground without flexing.
Best For: Rough terrain and deep, primary tillage in heavy soils.
Key Advantage: Unmatched durability; the tubular design distributes impact forces more evenly, protecting the discs and bearings from premature failure.
Single Way Disc Plough | ||||
Model | 1LYQ-220 | 1LYQ-320 | 1LYQ-420 | 1LYQ-520 |
Width of cut(mm) | 400 | 600 | 800 | 1000 |
Depth of cut(mm) | 200 | |||
Diameter of disc (mm) | 510 | |||
Weight(kg) | 140 | 190 | 240 | 300 |
Quality of blades(pc) | 2 | 3 | 4 | 5 |
Tractor power(hp) | 18 | 25-40 | 40 | 50-70 |
Mounted cat | 3 Point Cat1&2 | |||

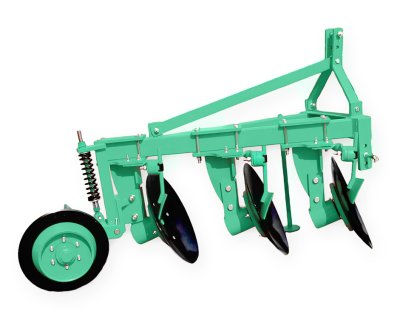

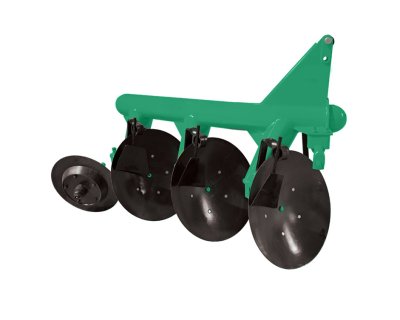

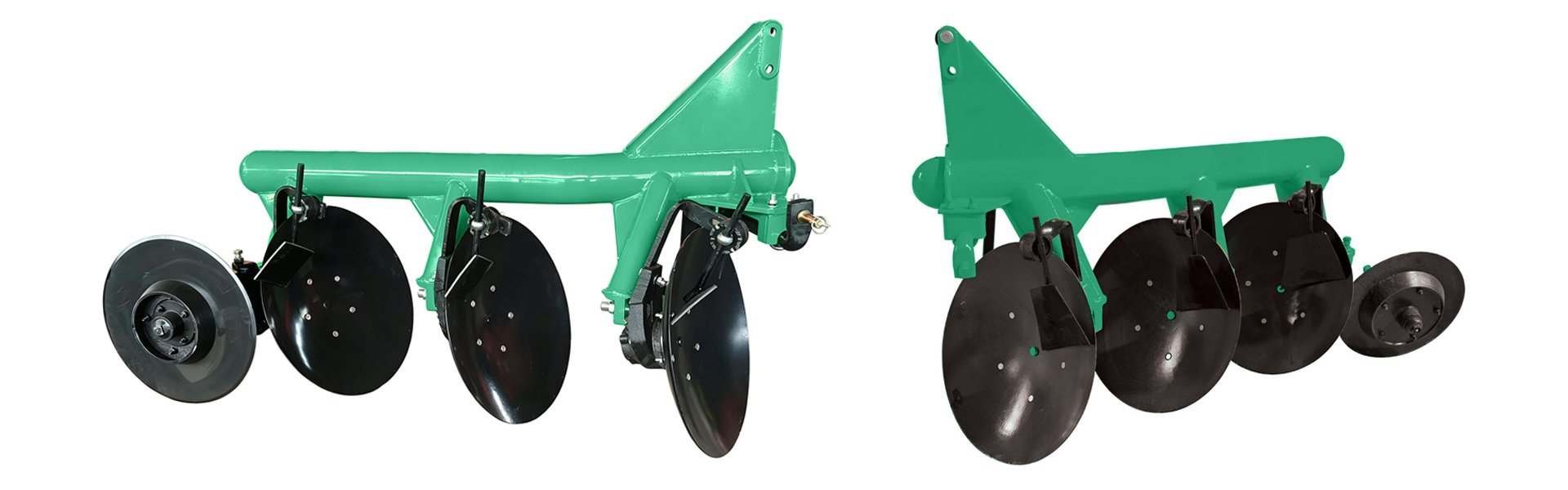

2. The Fish Tail Plough (Precision Tracking)
![]()
Distinguishable by the "fish tail"—a specialized rear tail wheel or stabilizer assembly—this plough is designed to solve the common issue of side-draft. The fish tail acts as a stabilizer, ensuring the plough tracks perfectly straight behind the tractor, even in challenging soil resistance.
Best For: Operators who require extreme accuracy and want to reduce operator fatigue.
Key Advantage: Excellent stability and easier steering, preventing the tractor from "pulling" to one side during operation.
Fish Tail Plow | ||||
Model | 1LY-2 | 1LY-3 | 1LY-4 | 1LY-5 |
Width of cut(mm) | 600 | 900 | 1200 | 1500 |
Depth of cut(mm) | 250-300 | |||
Diameter of disc (mm) | 660 | |||
Quantity of disc (pc) | 2 | 3 | 4 | 5 |
Weight(kg) | 350 | 400 | 470 | 560 |
Tractor power(hp) | 40 | 60 | 80 | 120 |
Mounted cat | 3 Point Cat1&2 | |||

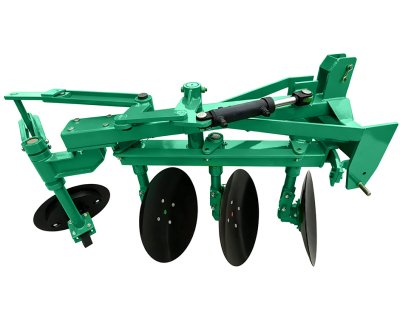

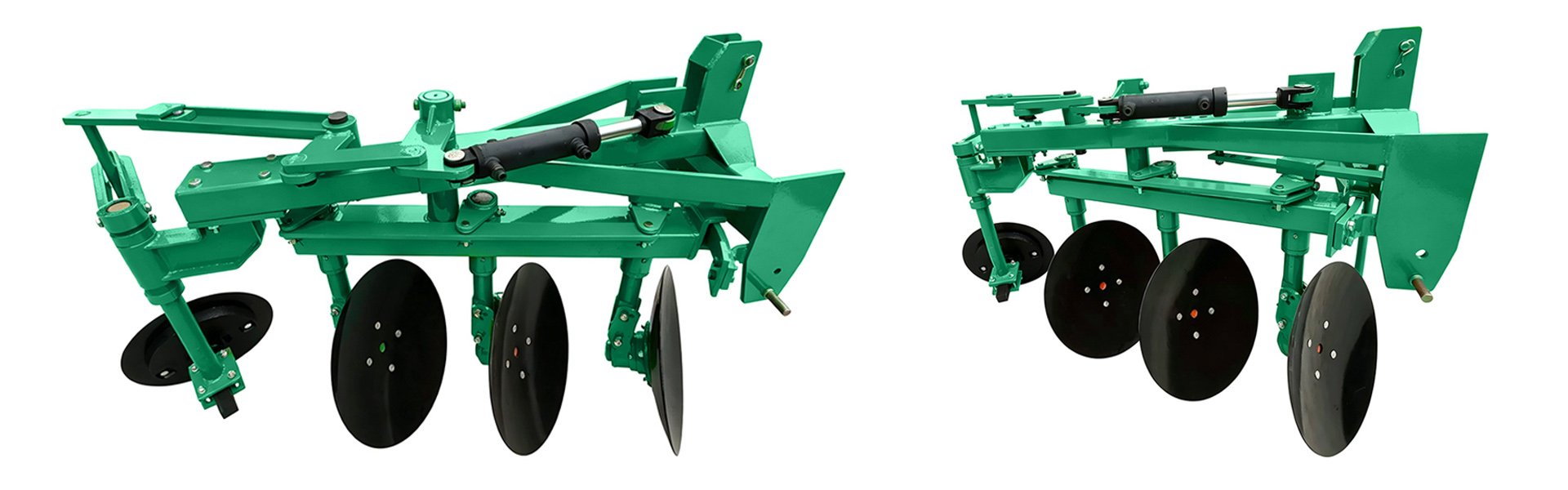

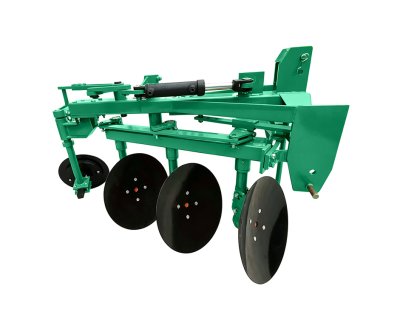

3. Two-Way (Reversible) Disc Plough
![]()
The Reversible Disc Plough allows the operator to change the direction of the soil throw by rotating the disc gang. This is the gold standard for "ploughing without dead furrows."
Best For: Large, flat fields where efficiency and field leveling are critical.
Key Advantage: Saves time at the headlands (the ends of the field) because you don't have to lift and turn in a wide loop—you simply reverse the discs and head back the way you came.
Two Way Disc Plough | |||
Model | 1LY(SX)-325 | 1LY(SX)-425 | 1LY(SX)-525 |
Width of cut(mm) | 750 | 1000 | 1250 |
Depth of cut(mm) | 250-300 | 250-300 | 250-300 |
Diameter of disc (mm) | 660 | 660 | 660 |
Quantity of disc(pc) | 3 | 4 | 5 |
Weight(kg) | 600 | 720 | 820 |
Tractor power(hp) | 50 | 90-120 | 130-150 |

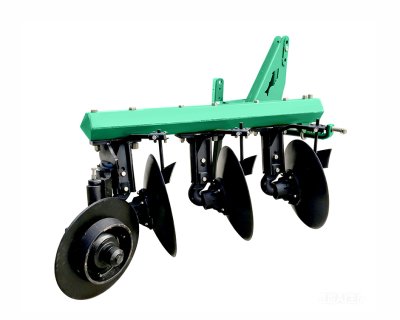

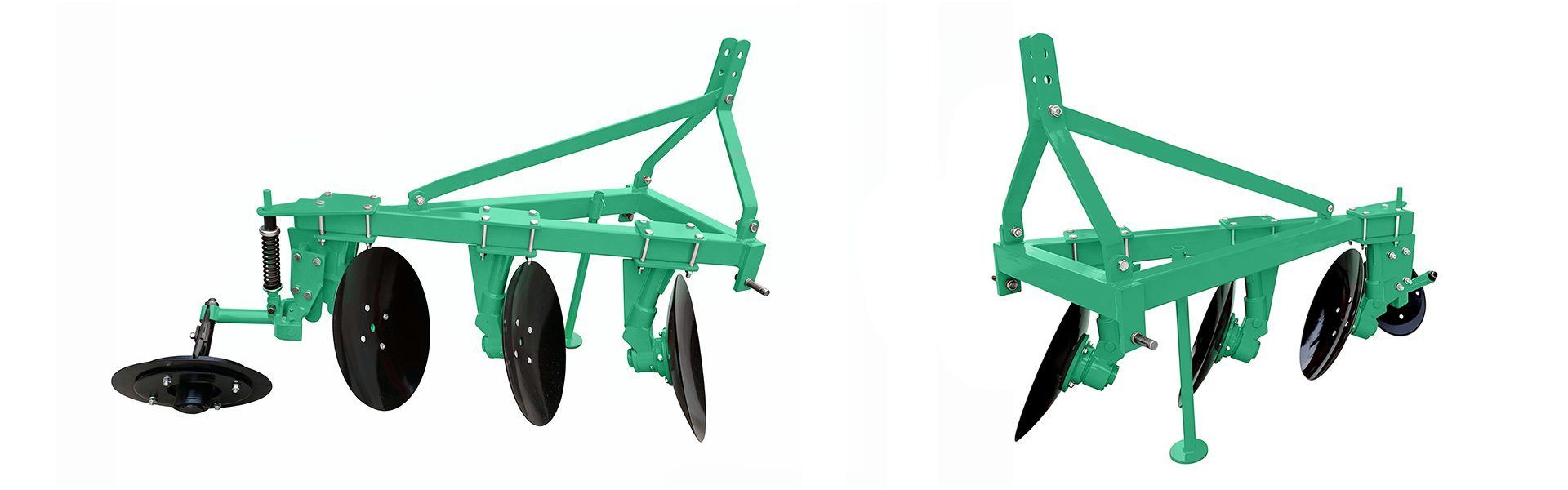

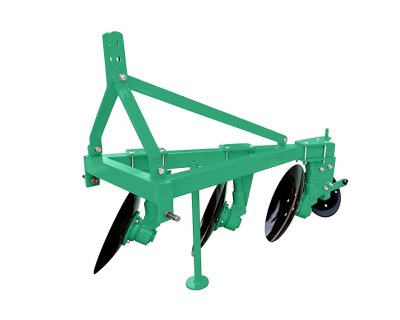

4. Single Way Disc Plough
![]()
The classic, reliable workhorse of the farm. The Single Way Disc Plough is designed for straightforward, efficient soil inversion. It is favored for its simplicity, ease of maintenance, and high cost-to-performance ratio.
Best For: General agricultural tasks, light to medium soil conditions, and budget-conscious operations.
Key Advantage: Streamlined design leads to fewer moving parts, lower maintenance costs, and high reliability year after year.
Single Way Disc Plough | ||||
Model | 1LYQ-220 | 1LYQ-320 | 1LYQ-420 | 1LYQ-520 |
Width of cut(mm) | 400 | 600 | 800 | 1000 |
Depth of cut(mm) | 200 | |||
Diameter of disc (mm) | 510 | |||
Weight(kg) | 140 | 190 | 240 | 300 |
Quality of blades(pc) | 2 | 3 | 4 | 5 |
Tractor power(hp) | 18 | 25-40 | 40 | 50-70 |
Mounted cat | 3 Point Cat1&2 | |||

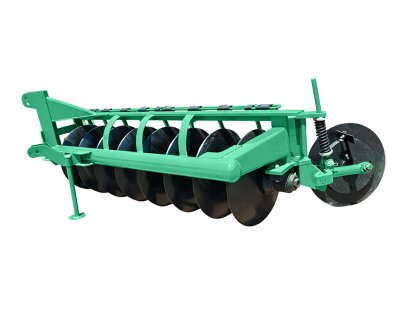

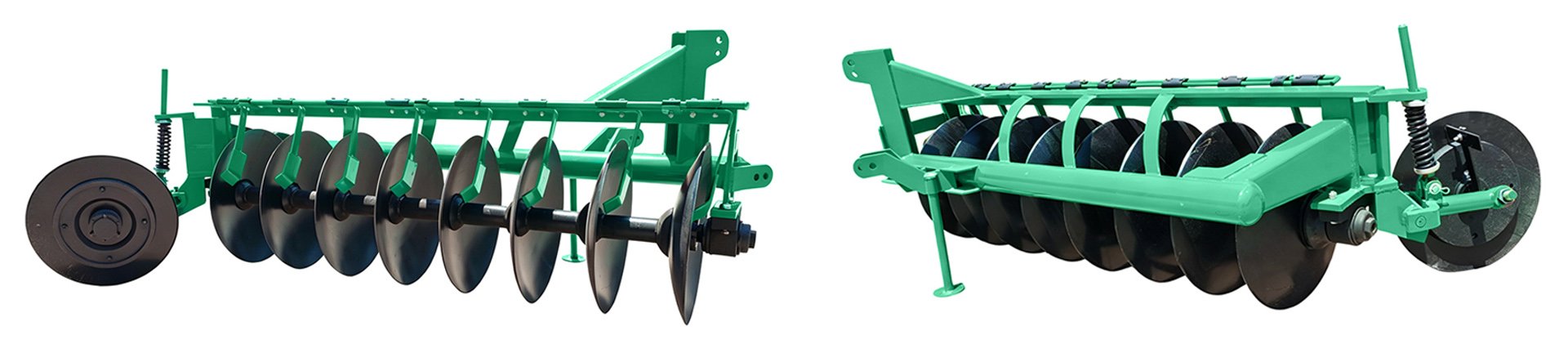

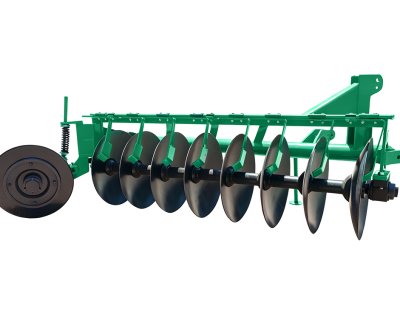

5. Paddy Field Disc Plough
![]()
Specialized for the unique demands of wet, saturated environments, the Paddy Field Plough is optimized for "puddling." Its construction prioritizes high-clearance to prevent mud clogging and specific disc angles that effectively mix water and soil to create a water-retaining layer.
Best For: Rice cultivation and wetland preparation.
Key Advantage: Enhanced flotation and cleaning mechanisms that prevent the machine from getting bogged down in thick, viscous mud.
Paddy Field Plough | |||||
Model | 1LYTA-225/6 | 1LYTA-245/6/7 | 1LYTA-265/6 | 1LYTA-267/8 | 1LYT-268 |
Quantity of blades | 5/6 | 5/6/7 | 5/6 | 7/8 | 8 |
Width of cut(mm) | 950/1200 | 1200/1390/1490 | 1400/1550 | 1750/1940 | 1940 |
Depth of cut(mm) | 100 | 150 | 180 | 180 | 180 |
Diameter of disc (mm) | 560 | 610 | 660 | 660 | 660 |
Tractor power(hp) | 30-40 | 50-60 | 80-120 | 80-120 | 80-120 |
Mounted cat | 3 Point Cat1&2 | ||||
Quick Reference Selection Guide
Choosing the right equipment is the first step toward a successful harvest. Refer to the table below to narrow down your options:
Plough Type | Primary Strength | Ideal Soil Condition |
Pipe Disc | Structural Durability | Virgin, Hard, Rocky |
Fish Tail | Steering/Tracking | Varied / High Resistance |
Two-Way | Efficiency/Leveling | Large, Flat Fields |
Single Way | Simplicity/Economy | Standard Tillage |
Paddy Field | Mud/Water Management | Saturated/Wet Soils |
Advantages of Using Agricultural Disc Plough
Agricultural disc ploughs offer a multitude of benefits for soil tillage and seedbed preparation, making them a staple in modern farming practices. Below are the key advantages of integrating disc ploughs into agricultural operations:
Efficient Soil Penetration: Equipped with sharp, rotating discs, disc ploughs deliver superior soil penetration even in hard, compacted conditions. Compared to other plough types, they can reach greater depths, effectively breaking through hardpan layers—dense subsoil layers that restrict root growth—and improving overall soil structure for better water and nutrient movement.
Effective Soil Inversion and Mixing: Disc ploughs excel at inverting and turning over soil, bringing nutrient-rich subsoil to the surface. This process buries crop residues, weeds, and other organic matter, accelerating their decomposition and integration into the soil. Additionally, it facilitates thorough mixing of topsoil with lower soil layers, promoting uniform nutrient distribution and boosting soil fertility over time.
Reliable Weed Control: By uprooting and burying weeds, their seeds, and roots, disc ploughs significantly reduce weed populations in the field. This minimizes competition between weeds and target crops for essential resources such as nutrients, water, and sunlight, ultimately improving crop yields and reducing the need for chemical herbicides.
Moisture Conservation: The furrows and ridges created by disc ploughs help retain soil moisture by reducing surface evaporation—a critical advantage in arid or semi-arid regions where water scarcity is a major concern. These furrows also facilitate efficient water distribution during irrigation, ensuring that water reaches the root zone of crops evenly and reducing water waste.
Enhanced Soil Aeration and Drainage: The tilling action of disc ploughs breaks up compacted soil, improving soil aeration and drainage. Loosened soil allows for better root penetration, enabling plants to absorb oxygen more efficiently and facilitating the movement of water through the soil profile. Improved aeration and drainage support healthier root development, leading to stronger, more resilient crop growth.
Exceptional Versatility: Disc ploughs are highly versatile and suitable for a wide range of soil types, including sandy, loamy, and clayey soils. Their adjustable depth and angle settings allow farmers to adapt to specific soil conditions and tillage goals, making them ideal for diverse farming environments—from rocky and root-infested fields to heavy clay soils.
Time and Labor Efficiency: Compared to traditional ploughs, disc ploughs are significantly more efficient, reducing the time and labor required for soil preparation. Their robust design and effective cutting action enable faster tillage, lowering the overall workload and increasing operational efficiency—critical for meeting tight planting deadlines during peak farming seasons.
Durability and Longevity: Constructed from high-quality, durable materials such as hardened steel (and in some cases, boron steel for enhanced wear resistance), disc ploughs are built to withstand the rigors of heavy agricultural use. With proper maintenance, they deliver consistent performance and serve farmers for extended periods, offering excellent long-term value.
Tractor-mounted disc ploughs operate by being fully suspended on four-wheel tractors. As the tractor moves forward, the plough’s discs rotate, cutting into and turning over the soil to achieve effective tillage. The machine is designed for easy installation and detachment, ensuring convenience across different farming operations and reducing downtime between tasks.
To maintain optimal performance and prolong the plough’s lifespan, regular maintenance is essential. Key precautions include:
Regularly inspect all components and replace worn or damaged parts (such as dull or bent discs) promptly to ensure consistent tillage quality and prevent further damage to the machine.
Thoroughly clean the plough after each use to remove soil, crop residues, and debris, which can cause corrosion and premature wear of moving parts.
Check and tighten all bolts, nuts, and fasteners regularly to prevent loosening during operation, which can compromise safety and performance.
Ensure all lubrication points are properly greased to reduce friction between moving parts, extending their service life.
When performing maintenance, always shut off the tractor engine, disconnect the power source, and wear appropriate protective gear to ensure safety.
