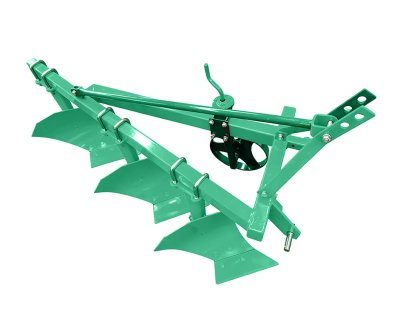

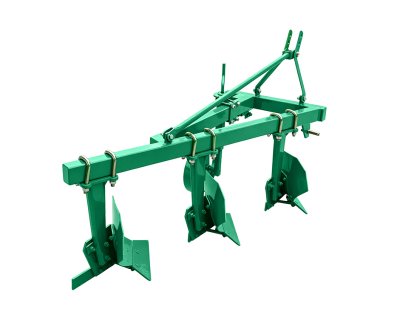

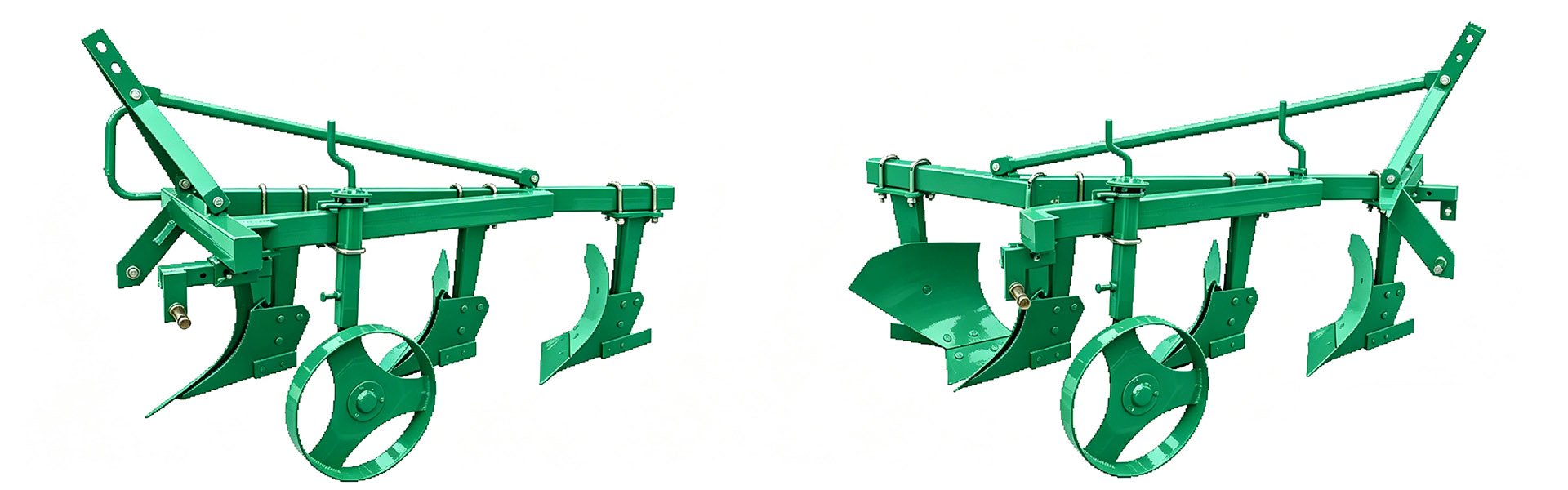

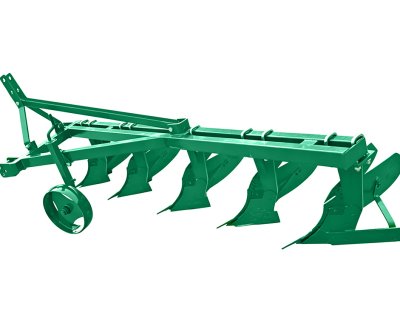

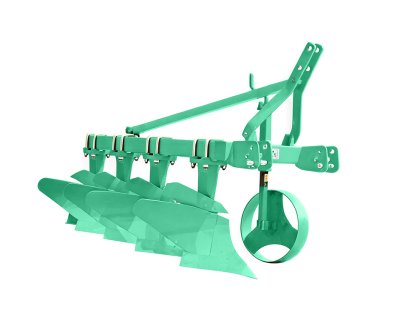

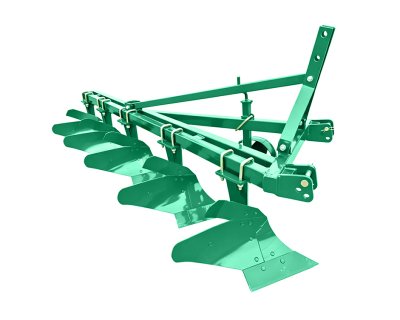

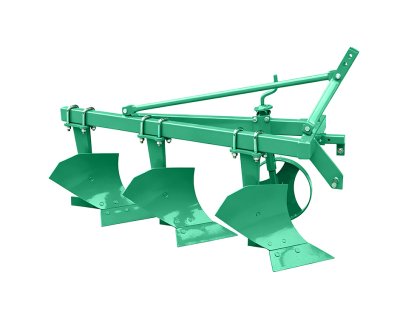

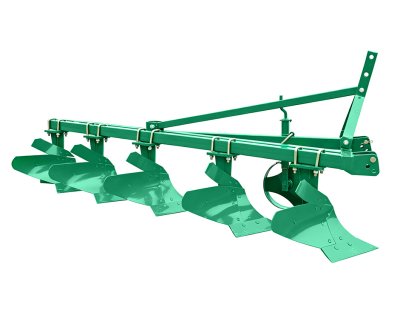

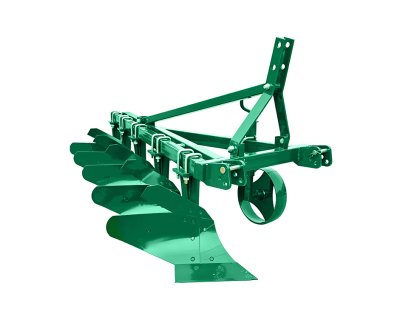

1L Series Share Plow - Professional Tractor-Mounted Tillage Implement for Agricultural Cultivation

Product Introduction

The 1L Series Share Plow is a professional tillage tool specially designed to be attached to four-wheel tractors, mainly used for plowing loam, sandy loam, cultivated land and dry land. As an essential agricultural implement for soil preparation, it effectively cuts, crushes and inverts soil, breaks the plow pan, restores soil structure, improves soil water retention capacity, eliminates weeds and reduces plant diseases and insect pests, laying a solid foundation for high crop yields. The plow adopts a scientific structural design, combining durability and practicality, and is widely applicable to dry land cultivation in loam and sandy soil areas, meeting the needs of large-scale agricultural production.

Different Types

The 1L Series Share Plow is divided into multiple models according to the number of plowshares and plow width, covering 20/25/30/35 series to adapt to different tractor powers and tillage needs. Specifically, it can be classified as follows:

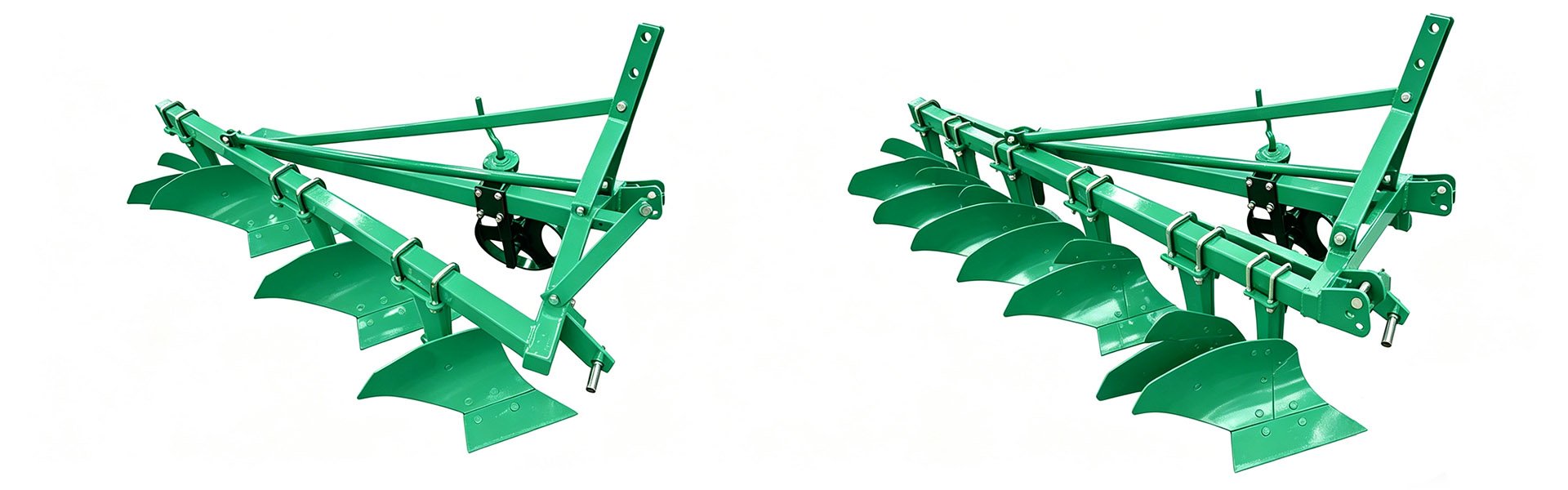

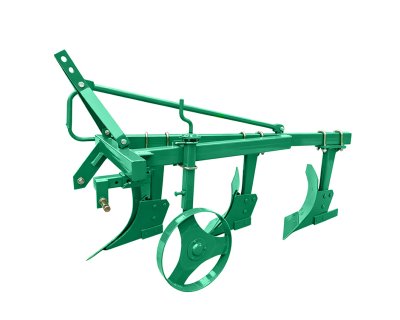

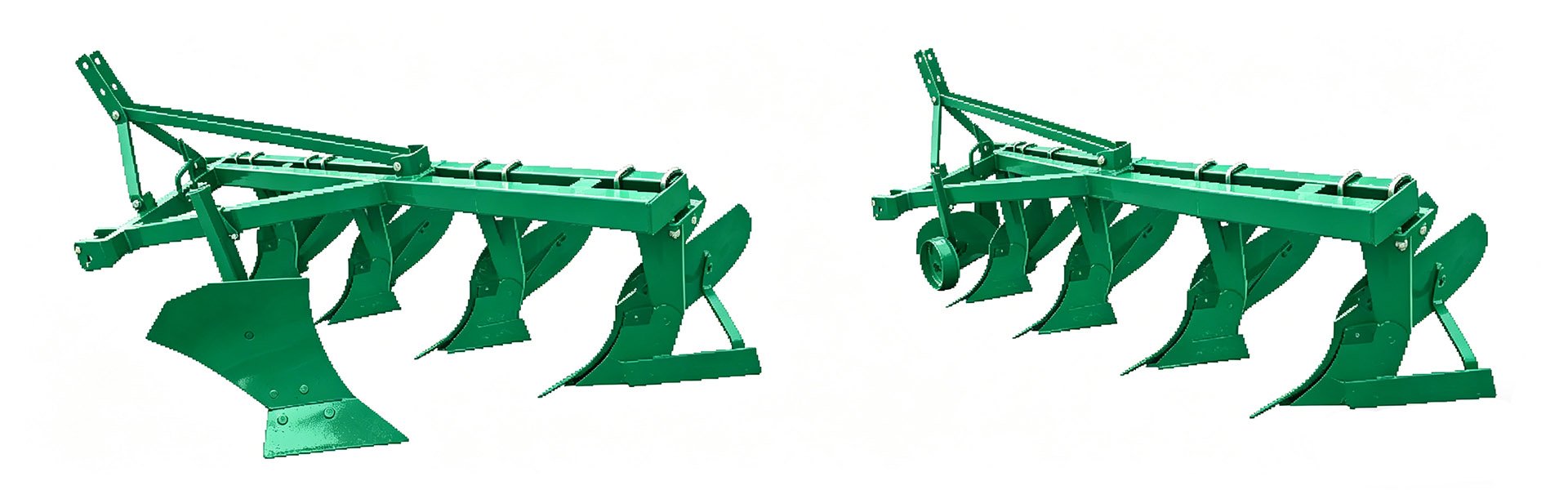

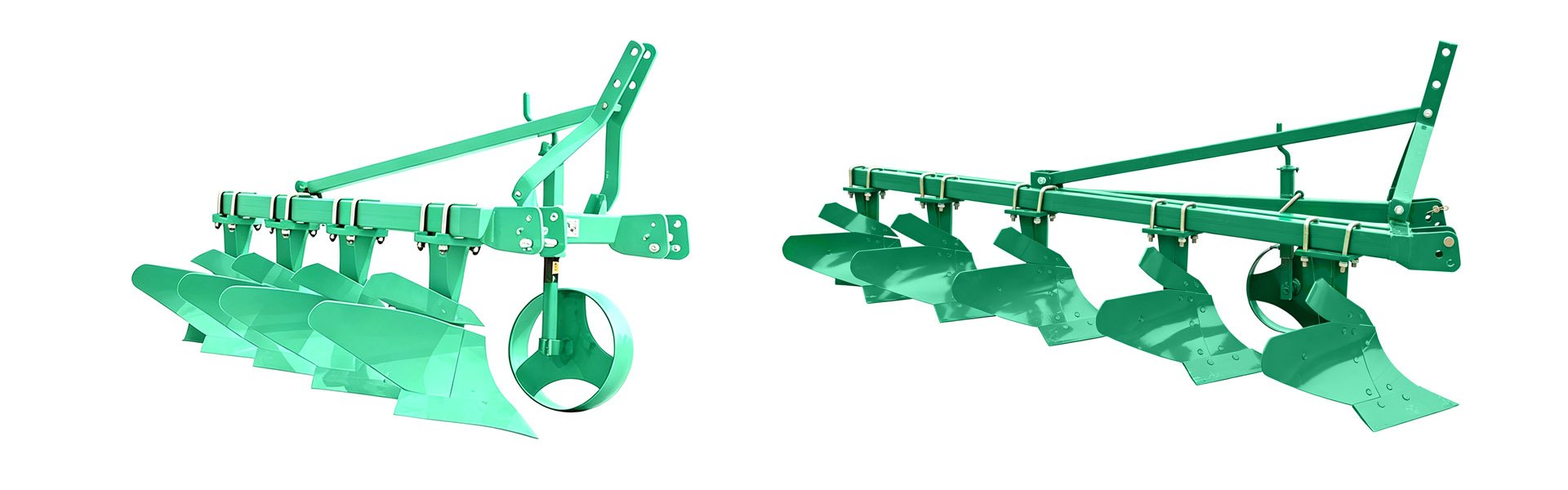

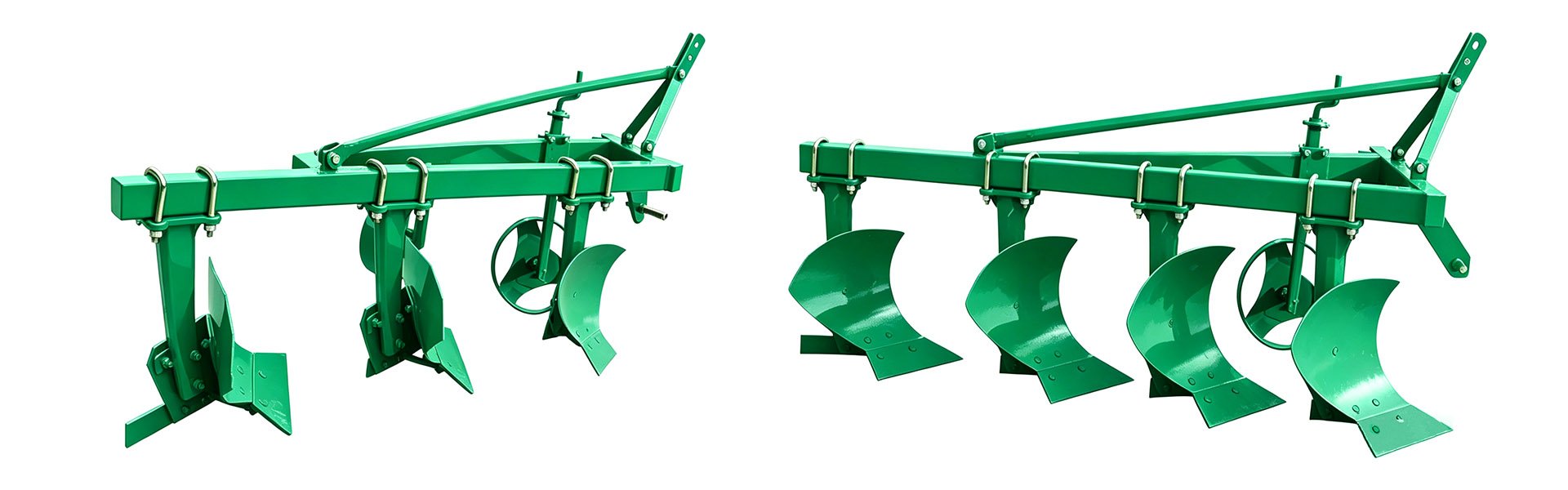

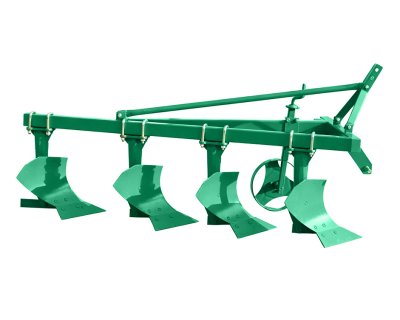

• By the number of plowshares: 2-share, 3-share, 4-share, 5-share, 6-share and other models, such as 1L-220, 1L-325, 1L-430, etc. The number of plowshares determines the tillage width and efficiency, which can be selected according to the scale of farming and tractor power.

• By plow width series: 20 series, 25 series, 30 series, 35 series, etc. The single plow width corresponds to 20cm, 25cm, 30cm and 35cm respectively, which can meet the tillage requirements of different soil types and crop planting modes.

• By connection mode: Full suspension connection type, which is connected with the tractor through a three-point suspension system, realizing flexible lifting and lowering, reducing the space occupation during transportation, and improving the maneuverability of operation.

Product Features

• High Durability: The main frame is welded with 16mm thick-walled rectangular pipe, which has strong bearing capacity and good rigidity, and is not easy to deform during heavy-duty operation. The plowshare wall is made of high-quality 65mm high manganese steel, which has excellent wear resistance, elasticity and impact resistance after heat treatment, and greatly extends the service life of the product.

• Wide Adaptability: It is suitable for plowing loam, sandy loam, cultivated land and dry land, and can adapt to different soil conditions and tillage depths. It is matched with 12-120 horsepower tractors, covering a wide range of power and meeting the needs of different farming scales.

• Excellent Operation Effect: The machine has simple structure, stable operation, excellent operation quality and effect. After plowing, the soil surface is smooth and flat, the soil is fully crushed, the soil inversion and coverage effect is good, which can effectively cover crop residues and weeds, and improve the soil fertility.

• Easy Operation and Maintenance: The full suspension connection design is adopted, which is convenient to connect with the tractor, and the operation is simple and easy to master. The overall structure is simple, the number of vulnerable parts is small, and the later maintenance is convenient and low-cost.

Technical Parameters

Note: The specific parameters can be adjusted according to customer needs, and the actual product shall prevail.

Maintenance and Care

Proper maintenance and care can effectively extend the service life of the 1L Series Share Plow and ensure stable operation performance. Please follow the following maintenance guidelines:

• Daily Maintenance: After each operation, clean the soil, weeds and other debris on the plow body, plowshare and frame to avoid corrosion. Check whether all bolts and pins are loose, and tighten them in time if any. Check the lubrication of moving parts and add lubricating oil regularly to ensure flexible operation.

• Regular Inspection: Every 50 hours of operation, comprehensively inspect the plowshare, plow wall and frame. If the plowshare edge thickness exceeds 3mm, it should be ground, repaired or replaced; if the plow wall is severely worn, it should be replaced in time. Check the hydraulic oil pipe of the suspension system for oil leakage and entanglement, and deal with it immediately if any problem is found.

• Long-term Storage: If the plow is not used for a long time, it should be thoroughly cleaned, dried, and coated with waste engine oil or anti-rust paint to prevent rust. Place it in a dry, ventilated and rainproof warehouse, and avoid direct exposure to the sun and rain. Disassemble the vulnerable parts and store them separately for easy reuse next time.

• Special Notes: When operating in stony land, increase the maintenance frequency. After the new plow is operated for 2 hours for the first time, re-tighten all nuts and bolts. If the tractor steering is heavy, check the adjustment status of the plow body in time. Do not use the plow beyond the rated load to avoid damage to the frame and plowshare.
