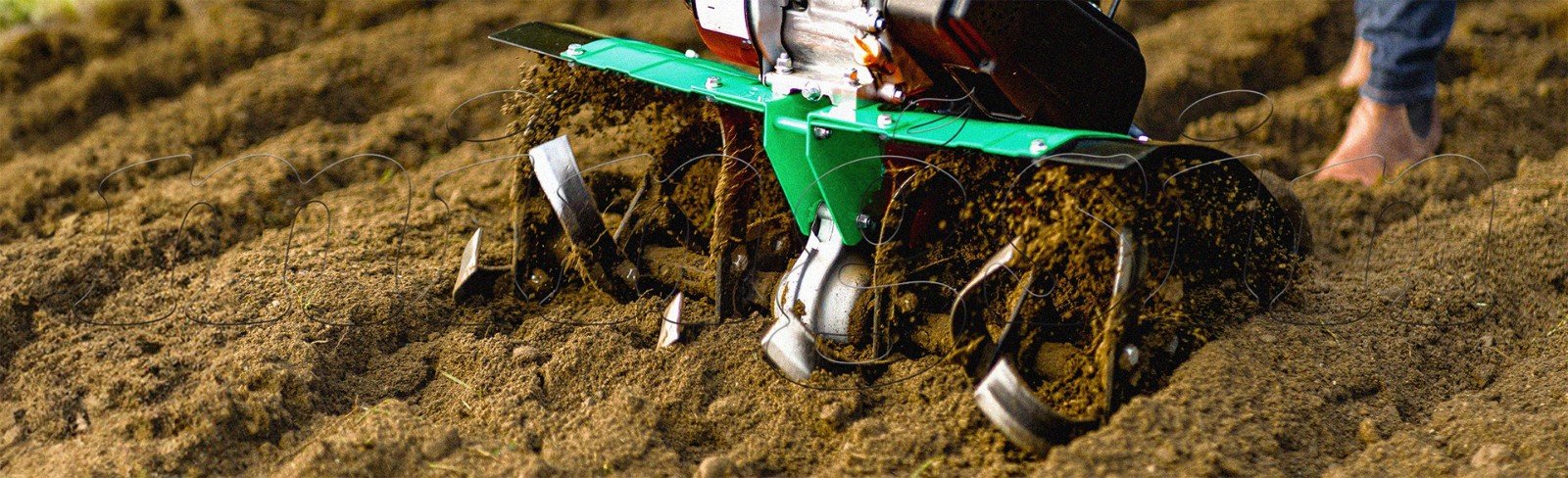

GT1350 power tiller (rotary hoe or rototiller) fits for all kinds of landform and the place where the large tiller can't do.They will be the best substitutes of farm cattle.(Video) It is widely applied to cultivating, ditching, ridging for dry land and paddy field and managing the broth vegetable, nursery garden, orchard and so on.The transmission mode is gear transmission, direct connecting.Similar products are GT1050 , GT1000.

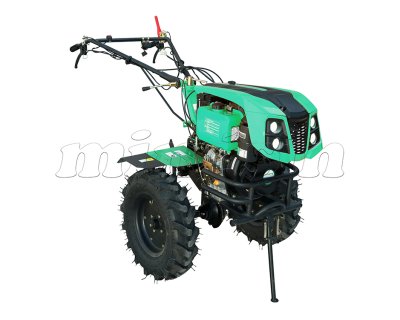

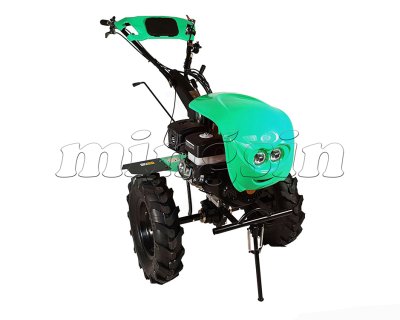

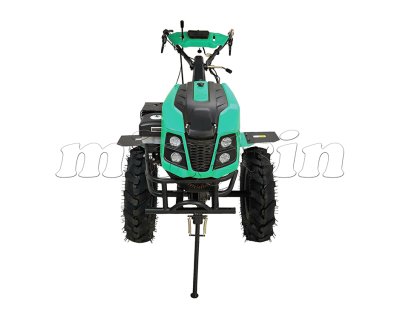

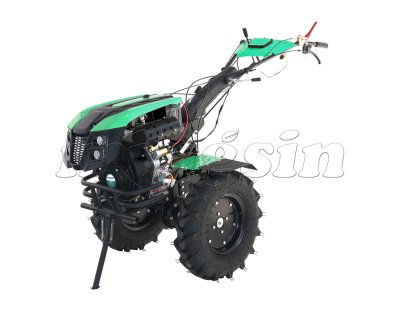

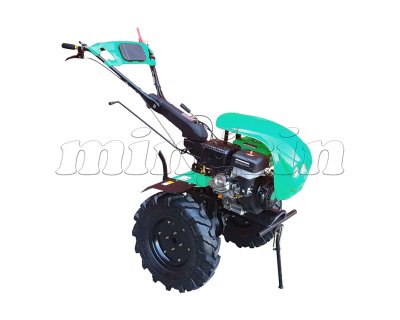

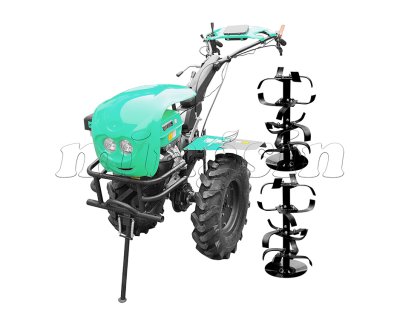

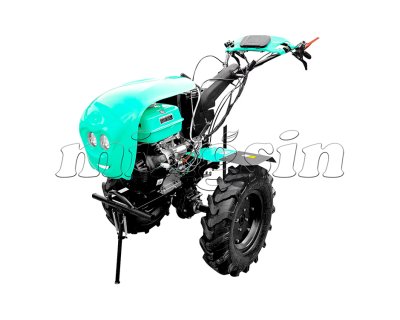

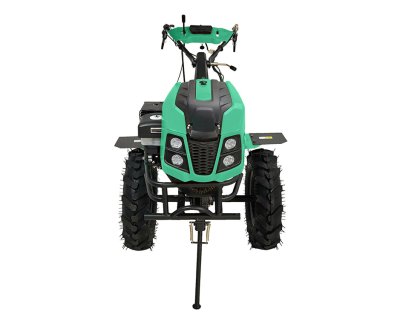

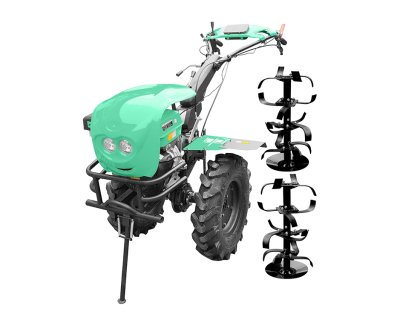

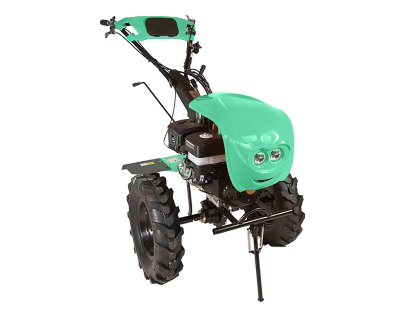

GT1350 Power Tiller
Motor cultivator for heavy hauling, milling, plowing and other agricultural operations, equipped with large 6.00x12 wheels, with agricultural profile, high travel speed and good grip. Powerful 18HP engine, with high efficiency and Euro 5 pollution standard. Gearbox with three forward and one reverse gears, with clutch with discs in oil bath and transmission through cardan with conical group. Milling width of up to 1620mm in one pass and depth of up to 300mm! The cutters are fragmentable 2+2+1 and are equipped with side discs that improve the stability of the machine during the digging operation. Fairing, headlights, adjustable handlebar on two axes and ergonomic handles.
Mount the revolving farming device onto the left and right of the transmission shaft of the running part of the power tiller, then use two M8*55 screw bolts for axial positioning purpose, finally the machine can start revolving farming .
Under the velocity adjustment screw before the ditcher is mounted. Subject to the adjustment of the width and height for ditcher, then the ditching can be conducted.
After mounting the forearm of the wagon box on the trailer and wheels one the transmission shaft of the running part, the machine can do a transportation job. The rated load is 250kg, under normal rotated speed of the diesel engine, speed of the fast shift is about 10km/h and that of the slow shift is about 5km/h.

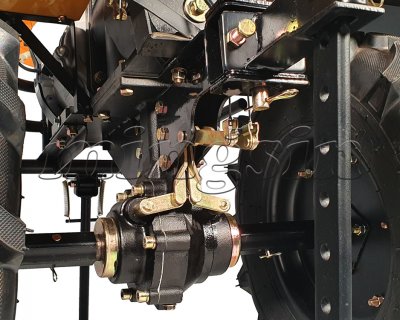

Dismount protection cover of the gear-box, unscrew the bolts away from the rear part of the main shaft, take the cover for keys out of the shaft, fasten the self-contained belt pulley or coupling onto the gear-box's main shaft's rear part with screws. Type A of common V belt is adopted for belt pulley's cross section. Rated rpm of the belt pulley is 3000 rpm.
When the corresponding devices are equipped pumping water, spraying,threshing, reaping, generating electricity, etc are realized.
(Above additional implements are in exploitation process. Please contact with the local distributor if you need above implements.)
Parameters:
Model | Unit | GT1350 |
Overall dimensions (L*W*H) | mm | 1035*560*860 |
Net weight | kg | 145 |
Tilling width | mm | 750-1350 |
Tilling depth | mm | 150-300 |
Diameter of circle tines | cm | Ø36 |
Max. rotary speed (high speed) | r/min. | 114 |
Max. rotary speed (low speed) | r/min. | 65 |
Max. rotary speed (reverse) | r/min. | 49 |
Max. torque (output axles) | N.m | 220 |
Transmission mode | Gear transmission, direct connecting | |
Driving wheel (tyre) | 4.00-8, 4.00-10, 5.00-12 | |
Working efficiency | sq.m/h. | 800-1600 |
Starting system | Recoil starting / Electric starting | |
Engine | model | 186F |
Engine type | Single cylinder, forced air cooled, 4-stroke, direct injection | |
Fuel | 0#, -10#, -20# diesel | |
Displacement | cc | 418 |
Rated power/rated speed | kW/r/min | 5.7 kW/3000 r/min, 6.3 kW/3600 r/min |
Fuel consumption | (g/kW·h) /r/min | 275.1 g/kW.h/3000 r/min, 281.5 g/kW.h/3600 r/min |
