Engine: 260HP turbocharged diesel engine with intercooling for maximum torque and 15% fuel savings.
Transmission: 24-speed synchronized gearbox for smooth, vibration-free shifting under load.
Hydraulics: Electro-hydraulic PTO with dual-speed control (540/1000 RPM) for precision implement management.
Chassis: Reinforced steel frame and heavy-duty axles for durability in rugged conditions.
Operator Features
Cabin Design: Soundproof, air-conditioned cab with ergonomic controls and 360° visibility.
Steering: Hydraulic power steering with adjustable sensitivity for precise maneuverability.
Applications
Agriculture: Optimized for sugarcane, maize, and soybean cultivation in large-scale farms.
Industrial Use: Ideal for earthmoving, logging, and construction support with tow capacities up to 15,000 kg.
Innovations
Smart Cooling System: Forced air-cooling and lubrication ensure continuous heavy-load performance.
Eco-Mode: Reduces emissions by 20% while maintaining power output, compliant with Tier 4 standards.
Technical Specifications
Engine: 260HP turbocharged diesel engine with intercooling for maximum torque and 15% fuel savings.
Transmission: 24-speed synchronized gearbox for smooth, vibration-free shifting under load.
Hydraulics: Electro-hydraulic PTO with dual-speed control (540/1000 RPM) for precision implement management.
Chassis: Reinforced steel frame and heavy-duty axles for durability in rugged conditions.
Operator Features
Cabin Design: Soundproof, air-conditioned cab with ergonomic controls and 360° visibility.
Steering: Hydraulic power steering with adjustable sensitivity for precise maneuverability.
Applications
Agriculture: Optimized for sugarcane, maize, and soybean cultivation in large-scale farms.
Industrial Use: Ideal for earthmoving, logging, and construction support with tow capacities up to 15,000 kg.
Innovations
Smart Cooling System: Forced air-cooling and lubrication ensure continuous heavy-load performance.
Eco-Mode: Reduces emissions by 20% while maintaining power output, compliant with Tier 4 standards.
Global Support
Export-ready design, servicing markets in Africa, Southeast Asia, and South America with localized spare parts networks.

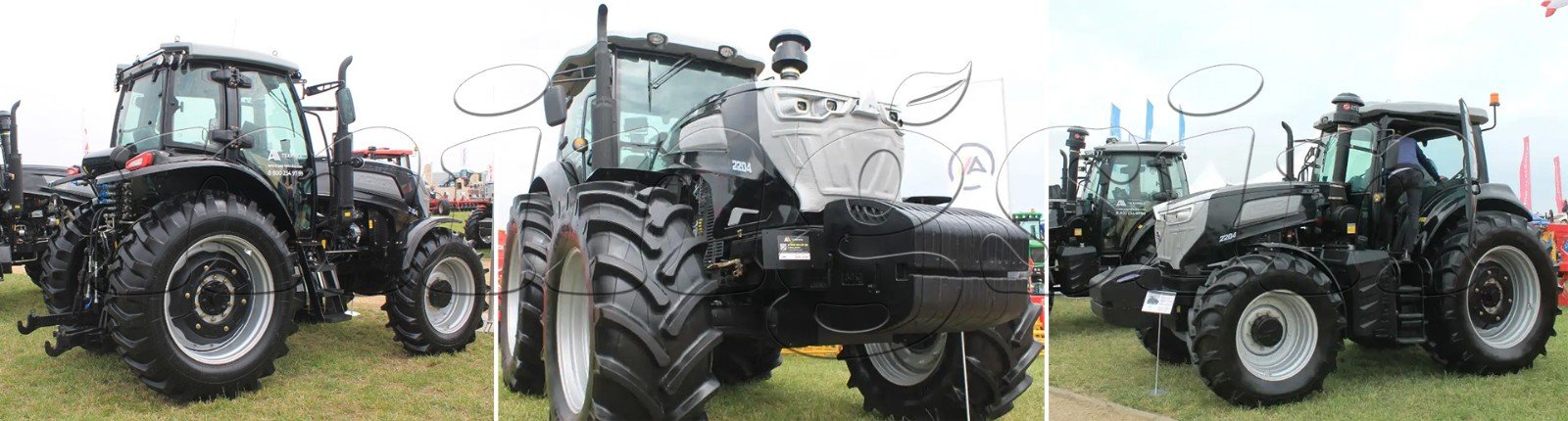

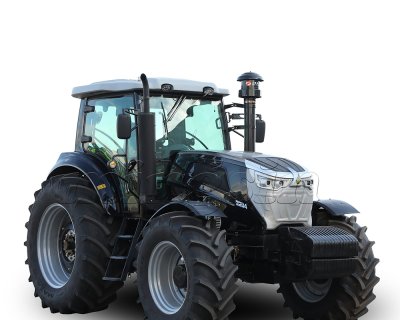

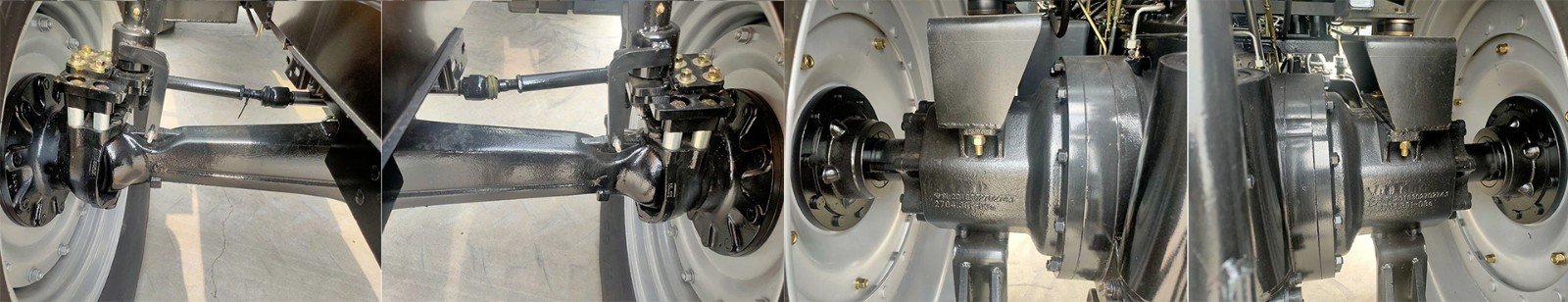

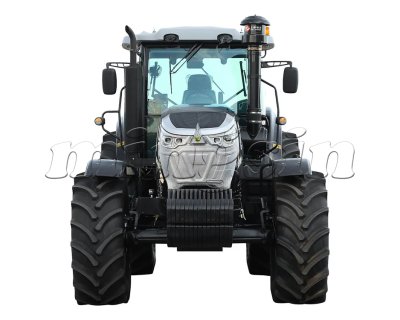

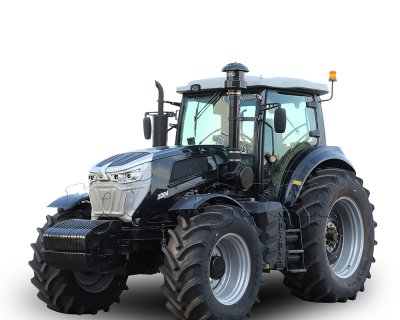

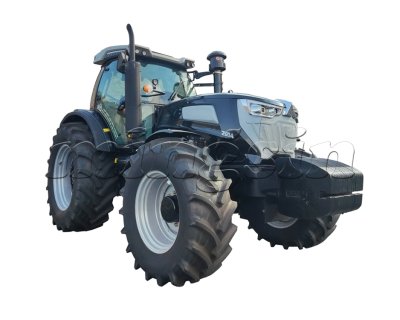

Equipped with Shangchai turbo-charged engine SC7H260G3, SD2604-K provides constant, steady and strong power and drive the tractor to do all the tough jobs. CARRARO front driven axle, big gear modules, and the heavy rear axle forms the solid framework in TG2604.

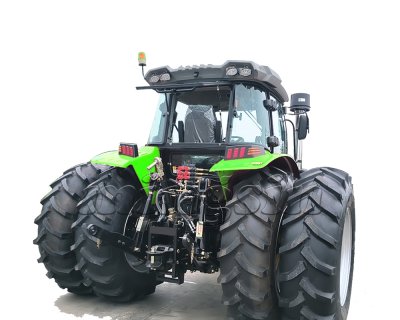

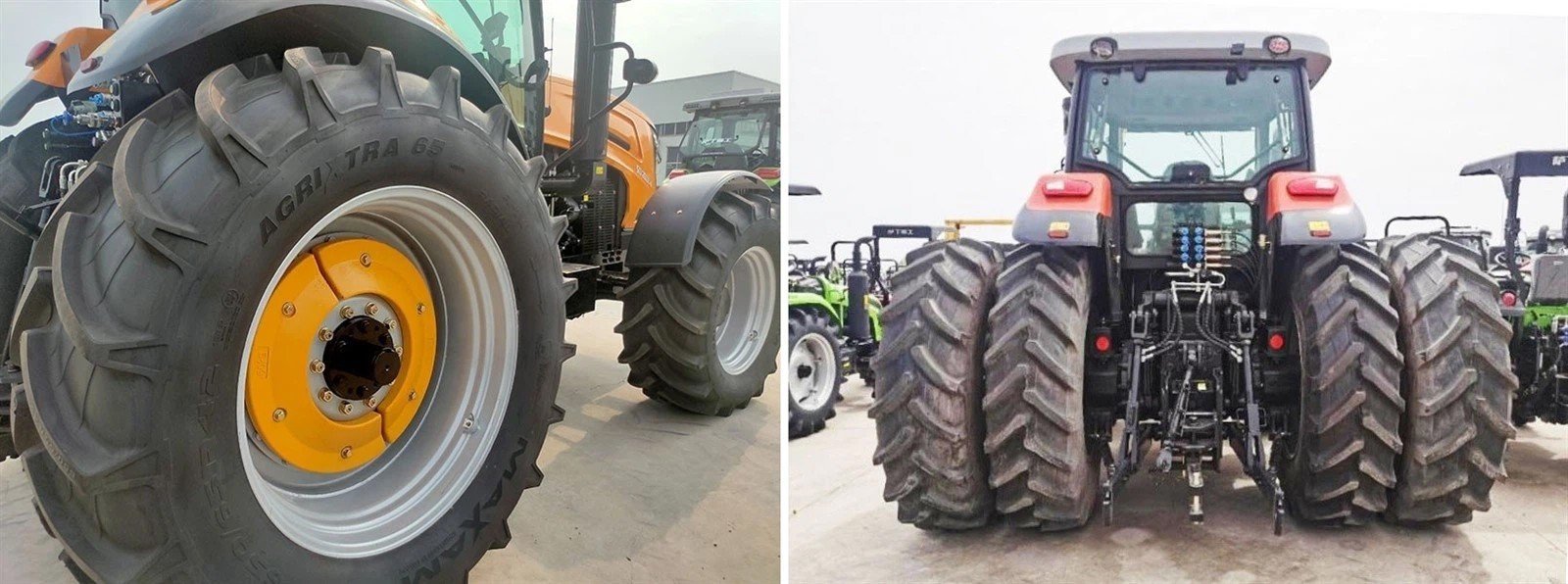

MAXAM heavy-duty agricultural tires are essential for the efficient and safe operation of farming equipment on rough and unstable terrain. Double rear tires are also available up to the demand. It can increase the traction for the extremely heavy duty load.

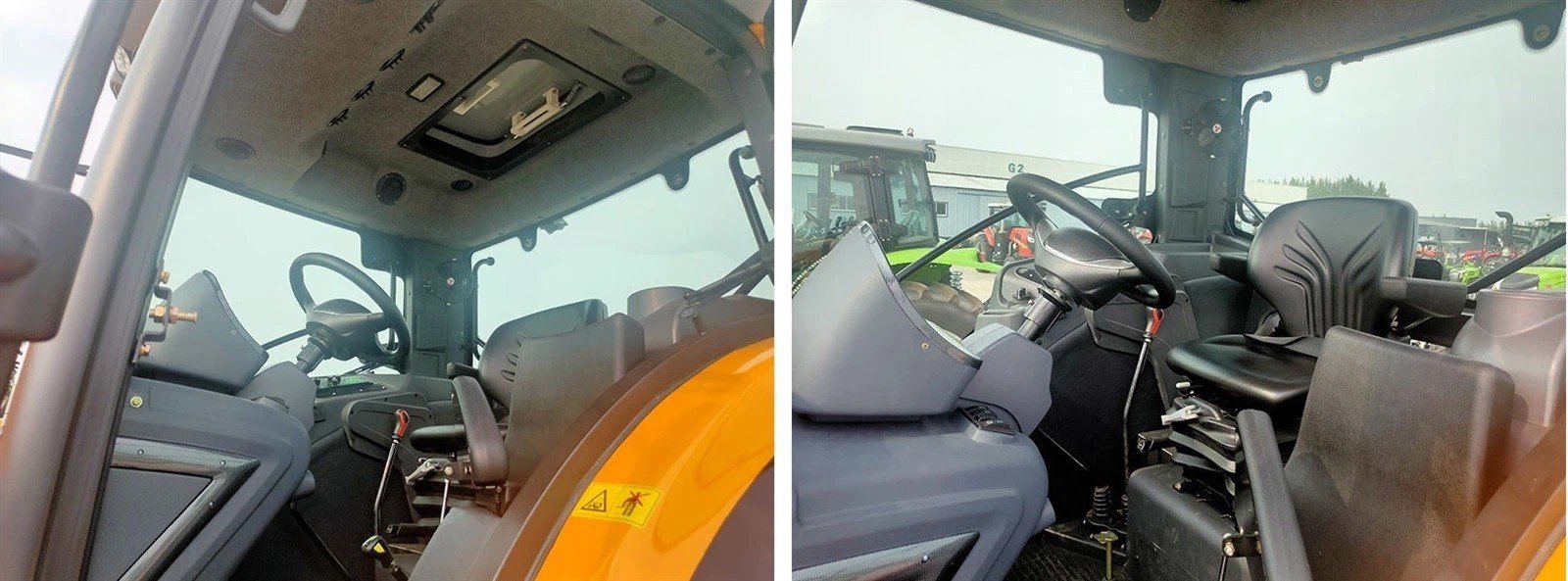

The large space in the cab can seat two people with a wide view. Grammer seats greatly enhance the driver's comfort. The arrangement of gear levers is reasonable. It makes the driving much easy. The cab is also equipped with air conditioner, heater and fan, ensuring that you can enjoy a comfortable temperature in the cab all year round. The cab is covered with high-quality soundproofing cotton and floor mat. The rear view system makes the job safer.
Model | Unit | TG2604 | |
Dimensions Of Tractor | Type | Drive Type (4×4) | |
Kw | kW | 191.1 | |
Dimension (L×W×H) | mm | 5730×3670×3130 | |
Wheel Base | mm | 2820 | |
Min.Ground Clearance | mm | 430 | |
Weight | kg | 7360 | |
Tread | mm | FRONT TREAD:2020 ADJUSTABLE | |
REAR TREAD:2020 ADJUSTABL | |||
Matched Power | Clutch Type | 14 INCH, DRY, DOUBLE ACTING | |
Engine | / | SC7H260G3 | |
Rated Speed | r/min | 2200 | |
Working Porting | Gear | / | 16F+16R |
PTO Type | / | 8 Pin; φ38; ⅰType (Option: 21pin) | |
PTO Rated Power | kW | ≥162.5 | |
PTO Speed | r/min | 760/850、760/1000、540/1000 | |
Hydraulic System | Three Point Linkage | / | Rear, Three-Point Suspension, Cat3 |
Hydraulic Output | / | 3-Way Valve | |
Hydraulic Adjustment Mode | / | Forced Hydraulic System, Position Control ,Floating Control | |
Max.Lifting Force At Frame Center | kN | ≥45.9 | |
Tyre Type | Norm Tyre Size (Front/ Tear) | / | 16.9-28/20.8-38 |
Optional Tyre (ⅰ) | / | 14.9-26/18.4-38 | |
Optional Tyre(ⅱ) | / | 14.9-26/18.4-38(TEAR TWO TYRES ) | |
Other Options | Warm Cabin | / | Optional |
Air Cabin | / | Optional |
