The TG2204 is a high-performance 220HP 4WD wheeled tractor designed for diverse agricultural tasks. Equipped with a dual-stage clutch and hydraulic steering, it offers smooth operation and precise control. The 16F+16R synchronous shift gearbox ensures optimal speed selection for various farming activities. Its spacious cab, complete with air conditioning and a filtration system, provides a comfortable working environment. Compatible with a wide range of farming implements, the TG2204 is a versatile and reliable choice for modern agriculture.
With beautiful appearance, this tractor is also multi-functional. It can match all kinds of farming implements.
Sticking to the principle of “Super High-quality, Satisfactory service” ,We are striving to generally be a very good business partner of you for Factory Supply 220 HP 240 HP Diesel, Agricultural, Cabin, Farm Tractors, The product will supply to all over the world, such as: Holland, UAE, Seychelles, We believe in quality and customer satisfaction achieved by a team of highly dedicated individuals. The team of our company with the use of cutting-edge technologies delivers impeccable quality products supremely adored and appreciated by our customers worldwide.
160-220HP Wheeled Tractor
Our 160-220HP wheeled tractor is offered with 400L large capacity fuel tank, supporting long distance driving. Moreover, the supercharged air/air inter-cooled diesel engine consumes less fuel during operation. You can see an immediately improvement in your working efficiency, and the reduction in your energy usage.

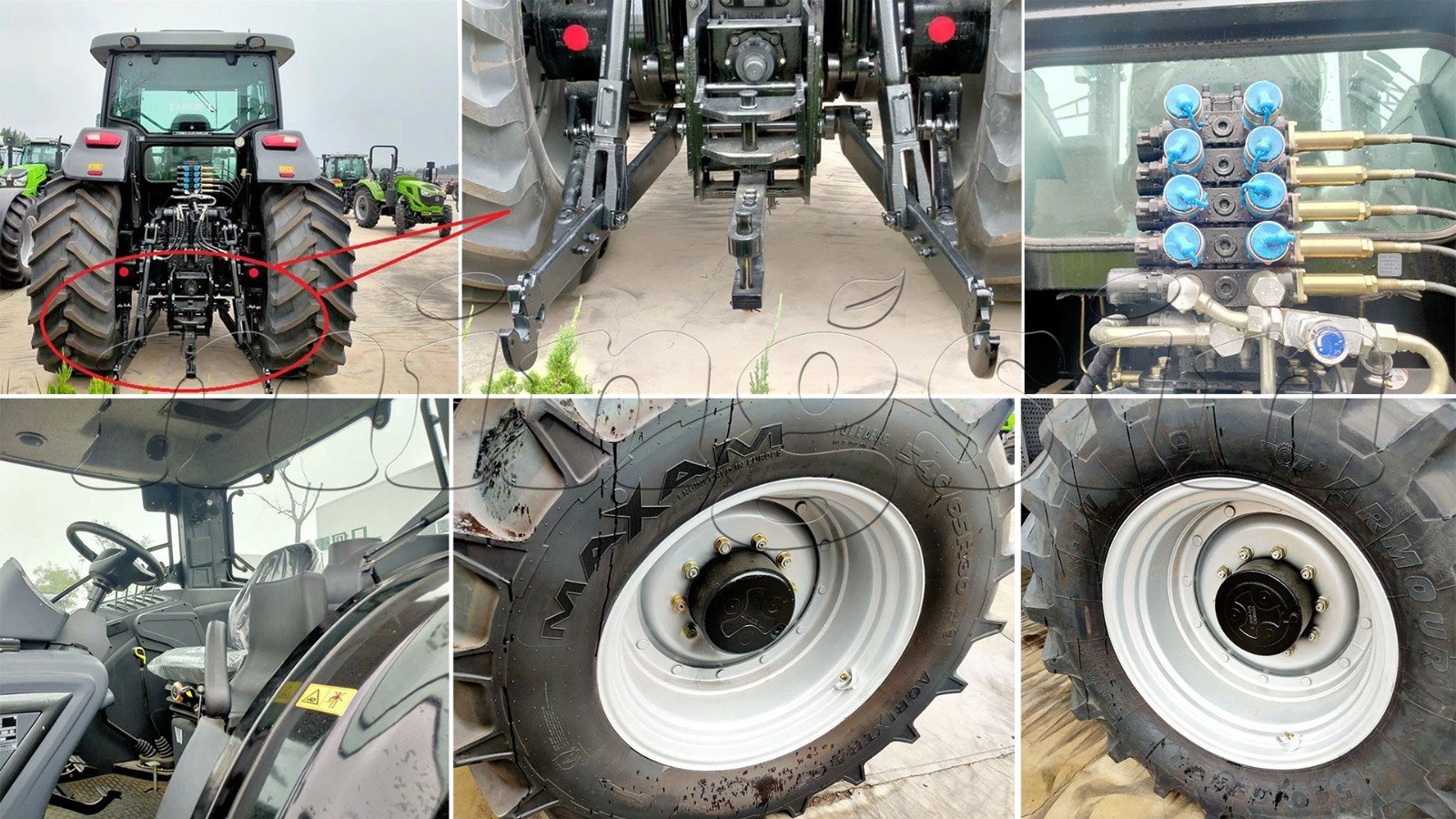

1. Our eco-friendly tractor has good adaptability by virtue of the adjustable single or double-acting multi-way valve, as well as the 3 or 4-group of hydraulic outputs.
2. There is an electro-hydraulic control suspension mounted at the rear of the product. So, trailer can be connected to the 160-220HP wheeled tractor rapidly and conveniently.
3. Specially, this range of product is designed with double rear wheel for vigorous drive. Moreover, the stepless adjustable wheel track makes it available for the farm crops indifferent row spacing.
4. The fully enclosed cab has wide vision. Equipped with heater, air conditioner, and audio and air dust filtering system, this agricultural vehicle may bring the driver comfortable and healthy working environment.
5. Convenient and practical, our 160-220HP wheeled tractor is engineered with one-key electro-hydraulic control differential lock.
6. Controlled by electronics and hydraulics, the independent two speed PTO output makes for convenient control.
7. The hydraulic wet self-booming brake with multiple discs has optimal safety and reliability.
8. The hydraulic steering system can be manually controlled through the operation on the adjustable steering wheel.
9. Our compact four wheel drive tractor is engineered with clutch control mechanism boosted by air pressure.

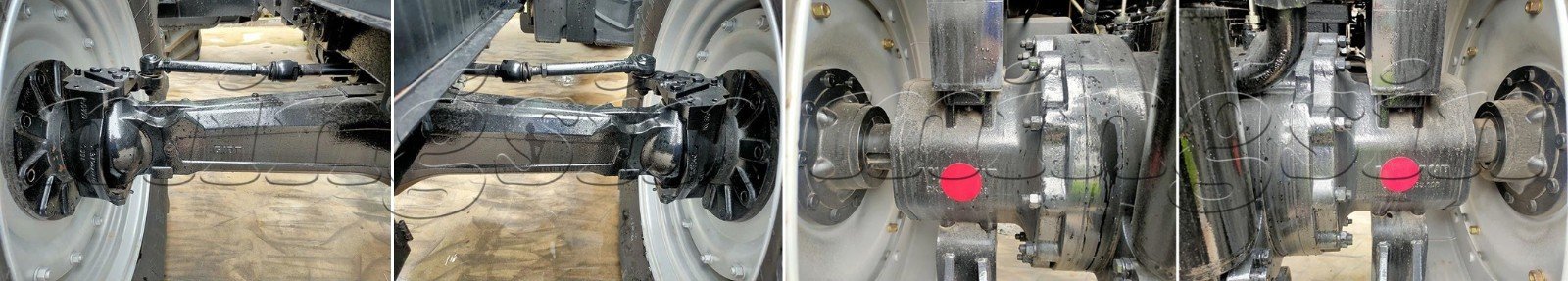

10. The symmetrical front drive axle from CARRARO, together with the mid-mounted transmission shaft, makes for easy and flexible operation.
11. With the installation of the synchronizer for 12F+4R gear, user can enjoy the impact-free and noise-free gear shifting.
12. The 160-220HP wheeled tractor is manufactured with the transmission system produced based on Italian technology. Particularly, the forced cooling and lubrication system is conducive to the reliable operation with heavy load.
Model | Unit | TG2204 | |
Dimensions Of Tractor | Type | Drive Type (4×4) | |
Kw | kW | 161.7 | |
Dimension (L×W×H) | mm | 5640×2450×2980 | |
Wheel Base | mm | 2800 | |
Min.Ground Clearance | mm | 430 | |
Weight | kg | 6410 | |
Tread | mm | Front Tread:2020 Adjustable | |
Rear Tread:2020 Adjustable | |||
Matched Power | Clutch Type | 14 Inch, Dry, Double Acting | |
Engine | / | Wp6g220e330 | |
Rated Speed | r/min | 2200 | |
Working Porting | Gear | / | 16f+16r |
PTO Type | / | 8 Pin; φ38; ⅰType (Option: 21pin) | |
PTO Rated Power | kW | ≥137.5 | |
PTO Speed | r/min | 760/850、760/1000、540/1000 | |
Hydraulic System | Three Point Linkage | / | Rear, Three-Point Suspension, Cat3 |
Hydraulic Output | / | 3-Way Valve | |
Hydraulic Adjustment Mode | / | Forced Hydraulic System, Position Control ,Floating Control | |
Max.Lifting Force At Frame Center | kN | ≥38.2 | |
Tyre Type | Norm Tyre Size (Front/ Tear) | / | 16.9-28/20.8-38 |
Optional Tyre (i) | / | 14.9-26/18.4-38 | |
Optional Tyre (ii) | / | 14.9-26/18.4-38(Tear Two Tires ) | |
Other Options | Warm Cabin | / | Optional |
Air Cabin | / | Optional |
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
